Adapter Overview

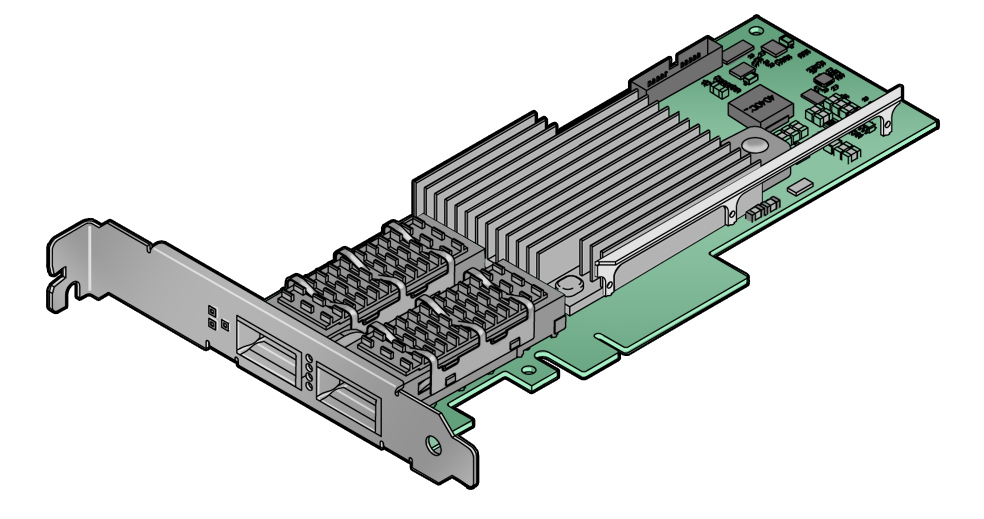

The adapter is Oracle's QSFP+ PCIe 3.0 x8 low-profile networking card. This adapter has two
QSFP+ connector ports, port 0(A) and port 1(B). Only port 0 can be configured as a
4x10GbE port. Port 1 is disabled. The adapter is ideal for slot-constrained servers,
providing a simplified low-cost alternative to multiple 10GbE server adapters for
Oracle's X5-2 and X5-2L servers.
|
|
|
Data rate supported per port
|
4 x 10GbE with breakout cables provides 10Gbps per port
|
|
Bus type
|
|
|
Bus width
|
x8, x4, x1 lane PCIe
|
|
Conforms to Ethernet standard
|
802.1
|
|
|
|
|
|
FCC Class A
|
|
