Physical Dimensions

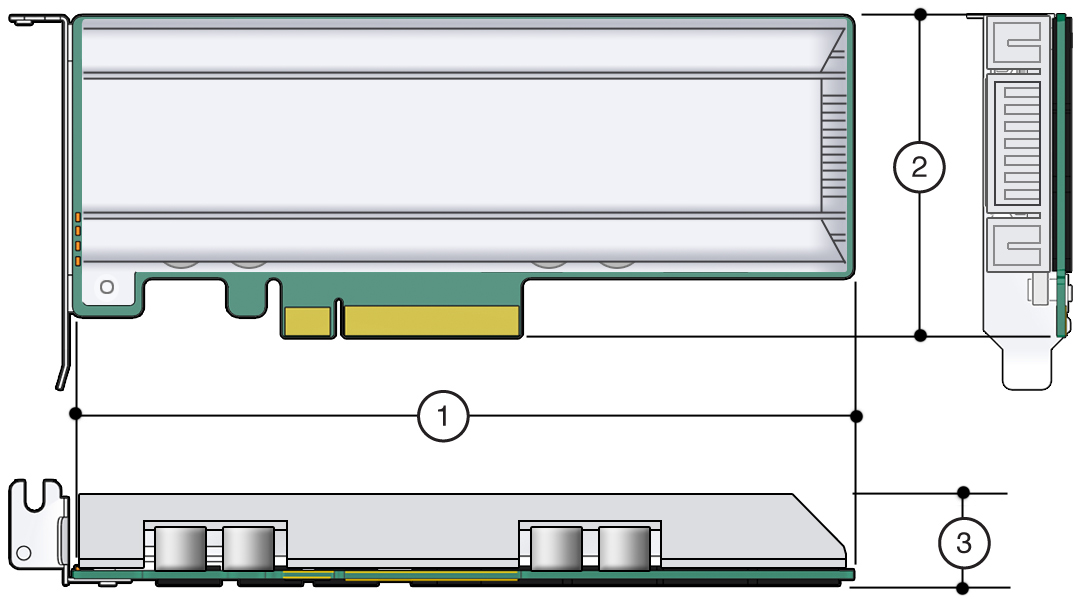

The following diagram shows Oracle Flash Accelerator F640 PCIe Card v2 physical dimensions.

image:Illustration showing Oracle Flash Accelerator F640 PCIe Card v2 physical dimensions.

Height (3)	Width (2)	Depth (1)	Weight
0.67 in.	2.21 +/- 0.0098 in.	6.59 in.	4.4 oz
30 mm	68.9 mm	166.78 mm maximum	195 g maximum

Related Information

Oracle Flash Accelerator F640 PCIe Card v2 Overview
