Environments Overview

Cloud Manager provisions PeopleSoft environments on-demand with just a few clicks. The entire provisioning process is automated. At the end of provisioning, a ready-to-use environment is available within a short time. The environments can be created by a three step process:

Create Topology
Create Template
Create Environment

Note: Prior to creating an environment, ensure that the required DPKs are already downloaded in the Repository.

An administrator defines a template for creating an environment. The topology is encapsulated inside the template. Users can select a template, override topologies, change any attributes, if needed and provision PeopleSoft environments on demand.

Users are allowed to perform actions on a running environment, such as stop, view details, create new template from it, and so on. For details, see the Actions on the Environment section under the Environments Page.

Note: Also, you must ensure to tune the servers, database, and PeopleSoft system for optimum performance once the deployment is completed.

Page Name	Definition Name	Usage
Environments Tile	ECL_ENVPROV_FL_GBL (Content reference for the tile.)	Access the Environments landing page.
Environments Page	ECL_ENVPRO_FL	Access the Environments landing page.
Create Environment Creating an Environment	ECL_ENV_ADD_SCF	Create a new environment.
Environment Details Accessing Environment Details	ECL_ENV_DET_FL	Access more details of the environment from one location.
Manage Attributes Managing Environment Attributes	ECL_ENV_ATTR_FL	Centrally administer the configuration of all the managed instances using Cloud Manager.
Manage Tags Managing Tags	ECL_ENV_TAGS_FL	Add, delete or update tags for each node in the environment.
Manage Passwords Managing Passwords	ECL_ENV_RESET_FL	Update Cloud Manager with environment attributes, if a user modifies it outside Cloud Manager.
Manage PUM Connections Managing PUM Connections	ECL_SA_MANAGEPM_FL	Manage PUM connections.
Infrastructure CPU Patches Applying Infrastructure CPU Patches	ECL_ENV_INFRUPD_FL	Display currently applied third party component details.
Apply PeopleTools Patch Applying PeopleTools Patch	ECL_ENV_PTCHUPD_FL	Apply latest patches.
Upgrade PeopleTools Upgrading PeopleTools	ECL_ENV_UPGD_FL	Update PeopleTools version (major version changes).
Provision Task Status Viewing Provision Task Status	ECL_PTS_PROV_TASK	Use to check provisioning status and retry or resume.
Policies Associating Policies with Environment	ECL_POLICY_ENVS	Associate policies with the environment name.
Logs Viewing Environment Logs	ECL_ESEARCH_FL	View logs of all operations such as create, delete, actions performed on the environment, and the like.
Monitoring Monitoring Environments	ECL_ML_ALERTS_FL	Enable or disable monitoring for the environment.
Load Balancing Configuring Load Balancer Settings	ECL_LB_BACKENDS_FL	Set up load balancing.
Advisory Settings Configuring and Reviewing Advisories	ECL_ENVRECM_SET_FL	Configure or update advisory settings for the environment.
Sparse Hierarchy Details Configuring Sparse Hierarchy Details	ECL_EXA_SPARSE_FL	Create test masters and manage their sparse clones. This page is available only for environments with databases running on Exadata.

Use the Environments tile (ECL_ENVPROV_FL_GBL) to access the Environments landing page.

Navigation:

The Environments tile is delivered as part of the Cloud Manager home page.

Use the Environments page (ECL_ENVPRO_FL) to manage, create, and import provisioned environments. You can view the environments in card or grid (list) format. This documentation typically refers to the card format.

Navigation:

Click the Environment tile on the delivered Cloud Manager Fluid home page. The Environments page is displayed.

Field or Control	Description
Name	Name of the environment. Note: Length of Environment name and identity domain name should not exceed 20 characters in OCI.
Status	Status of the environment provisioned through Cloud Manager. The different statuses associated with the environment are: Initiating Provisioning Failed Stopping Starting Running Deleting Applying PeopleTools Patch. Upgrading PeopleTools. Refreshing Restoring Infra Creation Complete
Description	Description of the environment.
Zone	Zone in which the environment is deployed.
PIA URL	Indicates the URL used to connect to the provisioned environment.
Create Environment button	Click this button to access the Create Environment page, where you can create new environments.
Related Actions button	Click this button to perform different actions for managing the environment as a whole.
Import Environment button	Click this button to import a database system environment. See Importing Environment

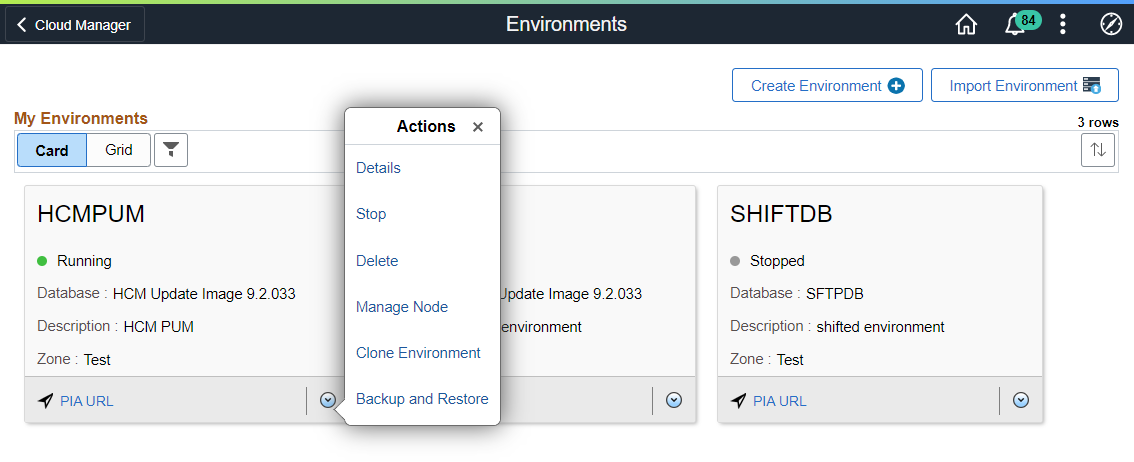

Actions on the Environment

You can perform a variety of actions on the environment by using the Related Actions button corresponding to each environment. The actions can be:

Details: Select this option to view environment details and to perform additional actions on the environment such as performing a health check, applying a PeopleTools patch, viewing logs, and managing PUM connections.
Start: Select this option to start all the instances and then all the domains within them.
Stop: Select this option to stop all domains and shutdown all the instances. In case of database, only compute database instances are shutdown. You cannot stop the DB system if it is used as a database tier and has multiple PDBs.
Delete: Select this option to remove the environment.
Note: If DB system is used as a database tier and has multiple PDBs, only the PDB is deleted and the DB system is not terminated.
Manage Node: Select this option to scale an environment up or down, add nodes, remove nodes, restart, stop, start, and work with search clusters.
Clone Environment: Select this option to clone an existing environment.
Refresh: Select this option to refresh the database or the database, Application Home (PS_APP_HOME) and Custom Home (PS_CUST_HOME).
This option is only available for DBaaS environments. This option is disabled for environments that use DB system as database tier and have multiple PDBs.
Backup and Restore: Select this option to backup or restore an environment.
This option is disabled for environments that use DB system as database tier and have multiple PDBs.
Deploy: Select this option to continue deploying an environment that has paused after infrastructure creation.
Delegate Access: This functionality is no longer supported. See Role Based Security Page for the currently supported action.
Disaster Recovery: Select this option to set up an environment as a standby in case of failure.
