For more information about Oracle Enterprise Manager Fusion Middleware Control administrative tasks and Oracle Fusion Middleware concepts, see the following documents:
Oracle Fusion Middleware is a collection of standards-based software products that spans a range of tools and services: from Java EE and developer tools, to integration services, business intelligence, and collaboration.
Oracle Fusion Middleware offers complete support for development, deployment, and management of applications.
Oracle SOA Suite is a middleware component of Oracle Fusion Middleware. Oracle SOA Suite provides a complete set of service infrastructure components for designing, deploying, and managing SOA composite applications.
Oracle SOA Suite enables services to be created, managed, and orchestrated into SOA composite applications. Composites enable you to easily assemble multiple technology components into one SOA composite application. Oracle SOA Suite plugs into heterogeneous IT infrastructures and enables enterprises to incrementally adopt SOA.
You can administer Oracle SOA Suite from Oracle Enterprise Manager Fusion Middleware Control.
The SOA Infrastructure is a Java EE-compliant application running in Oracle WebLogic Server. The application manages composites and their lifecycle, service engines, and binding components.
You deploy SOA composite applications designed in Oracle JDeveloper to a partition of your choice in the SOA Infrastructure. Partitions are separate sections of your SOA Infrastructure that enable you to logically group the composite applications for ease of management.
In the example shown in Figure 1-1, many SOA composite applications are deployed to the SOA Infrastructure and are visible in Oracle Enterprise Manager Fusion Middleware Control.
From the SOA Infrastructure home page, you can perform administration tasks such as monitoring the overall status of the SOA Infrastructure, monitoring the deployed SOA composite applications in the SOA Infrastructure, updating the state of SOA composite applications, tracking business flow instances, and performing fault recovery in the Error Hospital.
Figure 1-1 SOA Composite Applications Deployed in the SOA Infrastructure
You can click a specific SOA composite application in the Composite table to access its home page. Figure 1-2 shows the home page for a SOA composite application. From the SOA composite application home page, you can perform administration tasks such as viewing the service components and service and reference binding components included in the SOA composite application, viewing a graphical representation of the SOA composite application, updating the state of the SOA composite application, monitoring business flow instances, automating testing of the SOA composite application, and attaching security policies. You can also perform a limited number of configuration tasks at the SOA composite application level, such as specifying the composite audit level, specifying payload validation, and enabling and disabling the collection of analytic and sensor data. These tasks are displayed as buttons at the top of the page.
Figure 1-2 SOA Composite Application Home Page
For more information, see the following sections:
You can deploy SOA composite applications into separate sections of the SOA Infrastructure known as SOA Folders. Deploying to folders enables you to logically group SOA composites and perform bulk lifecycle management tasks on large numbers of composites. At least one folder is required for deploying SOA composite applications. A default folder named default is automatically included with Oracle SOA Suite.
You can perform the following tasks:
Deploy SOA composite applications into the SOA Folder using Oracle Enterprise Manager Fusion Middleware Control, Oracle JDeveloper, WebLogic Scripting Tool (WLST) commands, or
Access the folder and its deployed composites using the SOA Folders tab on the SOA Infrastructure page.
Perform the following bulk lifecycle management tasks on the composites in a specific folder:
Start all composites
Shut down all composites
Undeploy all composites
Retire all composites
Activate all composites
List all composites
Secure user access to folders, which provides the following benefits:
Administrative access control
Striping of instance data by folders
Folder level resource management
Folders are not associated with a particular state such as started, stopped, activated, or retired. Only the composites within the folder are associated with a particular state. Therefore, you cannot start, stop, activate, or retire a folder.
For more information about folders and folder security, see Managing SOA Folders and Work Manager Groups.
SOA composite applications such as those shown in the Deployed Composites page in Figure 1-1 consist of the following:
Service components such as Oracle Mediator for routing, BPEL processes for orchestration, BPMN processes for orchestration (if Oracle BPM Suite is also installed), human tasks for workflow approvals, spring for integrating Java interfaces into SOA composite applications, and decision services for working with business rules.
Binding components (services and references) for connecting SOA composite applications to external services, applications, and technologies.
These components are assembled into a single SOA composite application. Having the components assembled into one unit of deployment (the application) greatly simplifies the management and lifecycle of SOA applications.

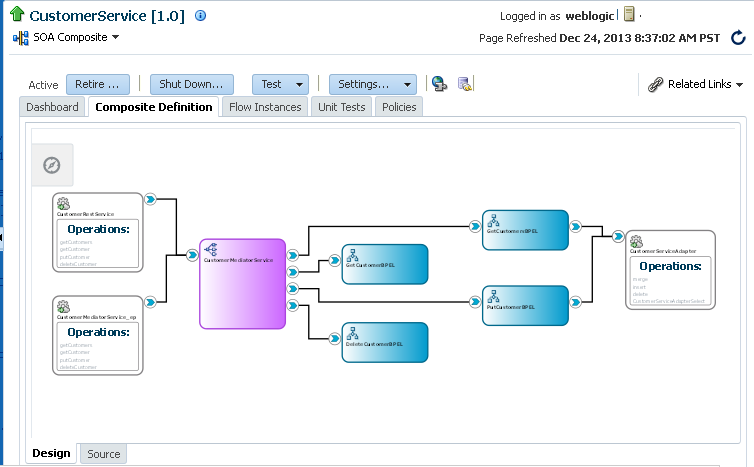

Figure 1-3 shows a diagram of a SOA composite application on the Composite Definition page. Service binding components in the left swimlane (labeled as Operations) advertise their capabilities to external consumers. The service exposes a public interface of the SOA composite application that can consist of BPEL process, Oracle Mediator, decision service (business rule), spring, and human task service components. A wire connects the service to a specific component or reference in the composite. Reference binding components in the right swimlane (also labeled as Operations) enable messages to be sent from the SOA composite application to external services. The service binding components, service components, and reference binding components are wired (connected) for communication. The Composite Definition page is similar to the diagram of the SOA composite application in the SOA Composite Editor in Oracle JDeveloper.
Figure 1-3 SOA Composite Application
The service components and binding components included in a SOA composite application are displayed in the Dashboard page of a SOA composite application. Figure 1-4 shows BPEL process and Oracle Mediator service components in the Components section and service and reference binding components in the Services and References section. You can click a specific service component or binding component to access its home page.
Figure 1-4 Service Components and Binding Components of a SOA Composite Application
For more information, see the following documentation:
In 12c (12.2.1), business flow instances replace the 11g Release 1 (11.1.1) concept of composite instances. When you create an instance of a SOA composite application in 12c (12.2.1), a business flow instance is created. A business flow instance is defined as follows:
Corresponds to an end-to-end business transaction.
Consists of a single SOA composite application or multiple SOA composite applications connected together in a business flow. The SOA composite application that initiates the business flow instance is known as the initiating composite. All other SOA composite applications in the business flow instance are known as the participating composites. A business flow can also include Oracle Service Bus components.
Provides a complete view of the flow, rather than a subsection of the flow.
Is identified by a single flow ID value. The 11g Release 1 (11.1.1) concept of service components having their own instance values no longer exists.
You track business flow instances from the Flow Instances page at the SOA Infrastructure, individual partition, or individual SOA composite application level in Oracle Enterprise Manager Fusion Middleware Control. For example, Figure 1-5 shows flow IDs displayed for SOA composite applications in the Flow Instances page of the SOA Infrastructure. When you first access this page, business flow instances do not display. You must first click Search to display business flow instances. You can click the flow ID to access the flow trace of the business flow instance. From the Flow Instances page, you can perform additional tasks:
Monitor the state of business flow instances (completed, recovery required, and so on).
Delete or terminate business flow instances.
Recover from faults.
View composite sensor values.
View the initiating and participating composites.
View any resequencing groups.
Instances that you create as unit tests from the Test Runs page of a SOA composite application are distinguished from those created automatically or created manually from the Test Web Service page by a little yellow box. This box is displayed to the left of the flow ID. For some SOA composite applications, conversation IDs are also generated. Conversation IDs provide another method for distinctly identifying a set of generated instances. Conversation IDs are not automatically displayed for all instances. To see a conversation ID generated, perform one of the following tasks:
Programmatically invoke the service and pass a unique ID through a WS-Addressing header (
Create an instance using the Test Web Service page. The only exception to this is when the Enable Stress Test checkbox of the Additional Test Options section of the Test Web Service page is selected. In that case, a conversation ID is not created for the instance.
Figure 1-5 Flow IDs of Business Flow Instances at the SOA Infrastructure Level
For more information, see the following sections:
SOA composite applications include service components. Service components are the basic building blocks of SOA composite applications. Service components implement a part of the overall business logic of the SOA composite application.
The following service components can be used in a SOA composite application:
BPEL process: For process orchestration of synchronous and asynchronous processes
BPMN process (if Oracle BPM Suite is installed): For creating and modeling business processes using Business Process Management Notation and Modeling (BPMN)
Oracle Mediator: For content transformation and routing events (messages) between service producers and consumers
Human task: For modeling a human task (for example, manual order approval) that describes the tasks for users or groups to perform as part of an end-to-end business process flow
Spring: For integrating Java interfaces into SOA composite applications
Decision service: For making a decision or for processing based on business rules
From the service component home page in Oracle Enterprise Manager Fusion Middleware Control, you can perform administration tasks such as viewing BPEL process activity time distribution details and attaching security policies. Figure 1-6 provides details.
Figure 1-6 Service Component Home Page of a BPEL Process
For more information about administering service components, see the following sections:
Oracle SOA Suite provides support for the spring service component. Note the following details about spring support in Oracle Enterprise Manager Fusion Middleware Control:
There are no spring service engine management pages.
A spring composite is displayed in the flow trace, but there is no audit trail for it.
Spring composite metrics are shown in the composite application home page.
The spring service component does not support the running and terminated instance states. Because the spring service component is synchronous, by design, there is no support to terminate the synchronous, running spring instance. Therefore, you cannot abort the running instance and cannot have a terminated state for the spring service component.
Binding components connect SOA composite applications to external services, applications, and technologies (such as messaging systems or databases). Binding components are organized into two groups:
Services: Provide the outside world with an entry point to the SOA composite application. The WSDL file of the service advertises its capabilities to external applications. The service bindings define how a SOA composite service can be invoked (for example, through SOAP).
References: Enable messages to be sent from the SOA composite application to external services (for example, the same functionality that partner links provide for BPEL processes, but at the higher SOA composite application level).
In Oracle Enterprise Manager Fusion Middleware Control, you can perform binding component administration tasks such as viewing the total number of outgoing messages and faults since the last server startup, attaching policies, setting binding component properties, and, for JCA adapters, viewing reports. Figure 1-7 shows the home page of a service binding component (for this example, a JCA database adapter).
Figure 1-7 Binding Components
For more information, see Administering Binding Components
The SOA Infrastructure includes a set of service engines (BPEL process, human workflow, decision service, Oracle Mediator, and spring) that execute the business logic of their respective components within the SOA composite application (for example, a BPEL process). If Oracle BPM Suite is installed, the SOA Infrastructure also includes the BPMN process service engine.

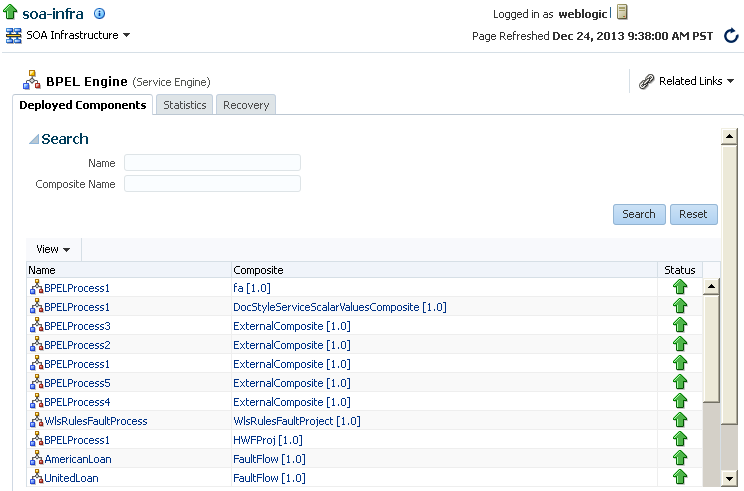

Figure 1-8 provides an example in Oracle Enterprise Manager Fusion Middleware Control of the BPEL process service engine. Each BPEL process service component runs in the same BPEL process service engine. You can click the links on the page to see more details about each BPEL process service component and the SOA composite application in which it is included.
Figure 1-8 Service Components Running in a Service Engine
In Oracle Enterprise Manager Fusion Middleware Control, you can perform service engine administration tasks such as monitoring service components and composites, viewing message request and thread statistics, manually recovering (BPEL) failed messages, and configuring properties specific to a service engine. These configuration properties impact all service components that execute in the service engine, no matter the SOA composite application in which the service components are included.
For more information about administering service engines, see the following sections:
Oracle Enterprise Manager Fusion Middleware Control does not include pages for managing the spring service engine.
The service infrastructure provides the internal message transport infrastructure for connecting components and enabling data flow. The service infrastructure is responsible for routing messages along the wire connections between services, service components, and references.
For more information, see the following sections:
Your SOA composite application can consist of a variety of service components, binding components, and services that you administer from Oracle Enterprise Manager Fusion Middleware Control:
BPMN processes (if Oracle BPM Suite is installed)
Decision services (Oracle Business Rules)
Direct binding service
Oracle Application Development Framework (ADF) Business Component service
Oracle BAM 11g (This adapter can only connect to an Oracle BAM 11g server.)
Oracle User Messaging Service
For conceptual information about these service components, binding components, and services, see Understanding Oracle SOA Suite and Developing SOA Applications with Oracle SOA Suite. For information about JCA adapters, see Understanding Technology Adapters.
Oracle Enterprise Scheduler enables you to define, schedule, and run jobs. A job is a unit of work done on an application's behalf. For example, you define a job that runs a particular PL/SQL function or command-line process.
When Oracle Enterprise Scheduler is deployed with Oracle SOA Suite, you can create jobs to perform tasks. For example, you can create error notification rules at the SOA Infrastructure or individual partition level that cause an alert message to be triggered when specific fault criteria are met.
Oracle Enterprise Scheduler is currently focused on scheduling embedded product jobs. Use Oracle Enterprise Scheduler only for the following tasks:
Schedule web services (composites, proxy services, and others).
Schedule adapter activate and deactivate.
Schedule fault notification and bulk fault recovery.
Submit jobs and job sets from Oracle SOA Suite/Oracle Enterprise Scheduler in Oracle Enterprise Manager Fusion Middleware Control. You can use Oracle Enterprise Scheduler web service jobs to schedule SOA composite applications:
Create job definition metadata using Oracle Enterprise Scheduler in Oracle Enterprise Manager Fusion Middleware Control and secure the job with Oracle Web Services Manager (OWSM) policies. The job definition must be created in the namespace
/oracle/apps/ess custom/soa. The SOA system administrator has Oracle Enterprise Scheduler permissions to create this job. For information about creating job metadata, see "Managing Job Metadata" of Administering Oracle Enterprise Scheduler.
Submit the job using Oracle Enterprise Scheduler in Oracle Enterprise Manager Fusion Middleware Control and define a schedule when submitting the job. For information about submitting jobs, see "Managing Oracle Enterprise Scheduler Requests" of Administering Oracle Enterprise Scheduler.
Create custom metadata from Oracle Enterprise Scheduler in Oracle Enterprise Manager Fusion Middleware Control.
Manage, view job output, throttle, and control threads in Oracle Enterprise Scheduler in Oracle Enterprise Manager Fusion Middleware Control.
Submit a job from a BPEL process.
Use Enterprise Scheduler Web service (
ESSWebservice) to access a subset of the Oracle Enterprise Scheduler runtime functionality. The
ESSWebservice is provided primarily to support SOA integration, for example invoking Oracle Enterprise Scheduler from a BPEL process. However, any client that needs a Web service to interact with Oracle Enterprise Scheduler can use
ESSWebservice exposes job scheduling and management functionality for request submission and request management.
Use all Oracle Enterprise Scheduler WLST commands in Oracle SOA Suite environments, as described in WLST Command Reference for SOA Suite.
For other uses, documentation and support may be incomplete and not supported in this release.
For more information about Oracle Enterprise Scheduler, see the following documentation:
Oracle SOA Suite jobs (adapter activation/deactivation, fault notification, and bulk fault recovery) and Oracle Enterprise Scheduler are by default mutually wired bidirectionally using cross-component wiring. Oracle SOA Suite is automatically wired to Oracle Enterprise Scheduler, and vice versa. Each wire is implemented in two parts.
The first part publishes where the URL is written to the service table.
The second part consumes where the service table is read and the URL is cached in the local configuration.
If the URL changes, the republishing is typically automatic. However, on the consumption side, you must manually reread the service table and recache it in Oracle Enterprise Manager Fusion Middleware Control. You can also manually rewire when port numbers and others change in Oracle Enterprise Manager Fusion Middleware Control.
For more information about performing these tasks, see the "Wiring Components to Work Together" chapter of Administering Oracle Fusion Middleware.
Oracle BPM Suite provides an integrated environment for developing, administering, and using business applications centered around business processes.
Oracle BPM Suite provides the following:
Enables you to create process models based on standards with user-friendly applications. It enables collaboration between process developers and process analysts. Oracle BPM supports BPMN 2.0 and BPEL from modeling and implementation to runtime and monitoring.
Enables process analysts and process owners to customize business processes and Oracle Business Rules.
Provides a web-based application for creating business processes, editing Oracle Business Rules, and task customization using predefined components.
Expands business process management to include flexible, unstructured processes. It adds dynamic tasks and supports approval routing using declarative patterns and rules-driven flow determination.
Unifies different stages of the application development lifecycle by addressing end-to-end requirements for developing process-based applications. Oracle BPM Suite unifies the design, implementation, runtime, and monitoring stages based on a service component architecture (SCA) infrastructure. This allows different personas to participate through all stages of the application lifecycle.
Oracle BPM Suite provides a seamless integration of all stages of the application development lifecycle from design-time and implementation to runtime and application management.
Oracle BPM Suite is layered on Oracle SOA Suite and shares many of the same product components, including:
Oracle Business Rules
Oracle adapter framework for integration
For more information, see the following documentation:
You can perform a variety of Oracle SOA Suite and Oracle BPM Suite administration (configuration, monitoring, and management) tasks from Oracle Enterprise Manager Fusion Middleware Control.
The administrative tasks that you can perform are based on the partition roles to which you are mapped. Each partition role corresponds to a different set of privileges. You can assign the specific partition roles you want a user to possess on a partition. These roles determine the tasks that a user can perform in Oracle Enterprise Manager Fusion Middleware Control. For more information, see Securing Access to Partitions.
You can perform Oracle SOA Suite and Oracle BPM Suite configuration tasks in Oracle Enterprise Manager Fusion Middleware Control. Configuration tasks consist of setting properties such as audit levels and payload validation for your environment. Properties can be set at the following levels:
SOA Infrastructure (impacting all SOA composite applications)
Service engines (impacting all service components that execute in the service engine, no matter the SOA composite application in which they are included)
SOA composite application (impacting all service components that are included in that composite application)
Oracle B2B bindings
Service and reference binding components message header properties
In terms of order of precedence, inherited SOA composite application property settings (such as audit level settings and payload validation) take the highest precedence, followed by service engine settings, followed by SOA Infrastructure settings. However, most properties do not have this type of precedence to consider.
For more information about Oracle SOA Suite and Oracle BPM Suite tuning configuration properties, see Tuning Performance.
Audit tracking enables you to select the level of information to be collected by the message tracking infrastructure. Audit level tracking can be set at the following levels:
Individual BPEL activity
BPEL process or BPMN process service component
SOA composite application
If you set audit tracking at multiple levels, it is important to understand which setting takes precedence. Table 1-1 provides some typical examples of audit level settings.
Table 1-1 Examples of Audit Levels and Order of Precedence
|BPEL Activity||Component||Composite||Service Engine||SOA Infrastructure||Which Setting Takes Effect?|
This is the out-of-the-box setting.
The audit level is set to Production. The SOA Infrastructure settings are inherited by the child (Service Engine, composite, component, activity) levels. No property defaults to Inherit.
The audit level is set to Off.
This is the recommended setting, and leads to performance enhancements. Depending on your audit requirements, you can then individually set the audit levels for composites that require auditing for debugging or compliance.
The audit level is set to Production/Development. The composite setting overrides the setting at the SOA Infrastructure level.
The audit level for the component is set to Production/Development, overriding the settings at parent levels.
The audit level for the BPEL activity is set to Production/Development, overriding the settings at the parent levels.
The default audit level value at the BPEL activity, component, composite, and service engine levels is Inherit. If the audit level property is missing, it defaults to Inherit. The default audit level at the SOA Infrastructure level is Production.
To limit database growth, and for optimal performance, Oracle recommends that you turn Off the setting at the SOA Infrastructure level, and set the audit level at the composite level for composites that require debugging or monitoring. Your compliance requirements might also determine the granularity of your audit requirements.
The following sections describe configuring audit levels:
See Configuring the SOA Infrastructure for more information about configuring audit level settings at the SOA Infrastructure level.
See Configuring BPEL Process Service Engine Properties for more information about configuring audit level settings at the BPEL service engine level.
See Managing the State of an Application from the SOA Composite Application Home Page for more information about configuring audit level settings at the composite level.
See Setting the Audit Level at the BPEL Process Service Component Level for more information about configuring audit level settings at the BPEL component level.
See “Auditing SOA Composite Applications at the BPEL Activity Level” in Developing SOA Applications with Oracle SOA Suite for more information about configuring audit level settings at the BPEL activity level.
Reducing Audit Levels includes tips on improving performance and reducing database storage for your production environment.
You can perform Oracle SOA Suite and Oracle BPM Suite monitoring tasks in Oracle Enterprise Manager Fusion Middleware Control, including monitoring the following:
Business flow instances, faults, and rejected messages in the SOA Infrastructure or individual partition.
Service engine, service infrastructure, and binding component processing request performance.
Service and reference binding component message processing totals and average processing times.
Audit trail and process flow behavior in service components. For BPMN processes, the entire BPMN process flow is displayed, and the path taken by the process instance is highlighted.
Service engine request and thread states in BPEL processes, BPMN processes, Oracle Mediator, and human workflows.
Adapter configuration, monitoring, and snapshot reports.
You can also monitor and diagnose problems in Oracle SOA Suite through use of the WebLogic Diagnostic Framework (WLDF) and Diagnostics Framework. For more information, see Diagnosing Problems with SOA Composite Applications.
You can perform Oracle SOA Suite and Oracle BPM Suite management tasks in Oracle Enterprise Manager Fusion Middleware Control, including managing the following:
Creating and deleting partitions. Once you create partitions, you can deploy a composite to the appropriate partition. This action enables you to logically group SOA composite applications into partitions.
Creating and managing work manager groups. Each partition is associated with a work manager group that consists of work managers. A work manager is an Oracle WebLogic Server entity that represents a logical thread pool. You can define priorities for the work to be processed by work managers.
Securing user access to partitions. This limits users to administering only the composites within the partition to which they are granted access.
Managing the composite state (activating, retiring, starting, stopping, and setting the default composite version).
Deleting and terminating business flow instances.
Deploying, undeploying, and redeploying SOA composite applications.
Exporting a deployed SOA composite application to a JAR file.
Initiating SOA composite application test instances from the Test Web Service page.
Recovering from faults at the SOA Infrastructure level or individual partition level.
Recovering rejected messages in BPEL processes.
Creating error notification rules at the SOA Infrastructure or individual partition level that cause an alert message to be triggered when specific fault criteria are met.
Scheduling the activation and deactivation of JCA adapter services.
Performing automated testing of SOA composite applications.
Attaching policies to SOA composite applications, service components, and binding components.
Managing incoming and outgoing notification messages in human workflow.
Subscribing to business events and testing of event publications.
Disabling and enabling the collection of analytic, BPEL sensor, and composite sensor data.
Storing instance and callback message data in Oracle Coherence distributed cache on Oracle Exalogic platforms.
The following sections provide a more specific overview of several management tasks:
Backup and recovery of Oracle SOA Suite is described in Administering Oracle Fusion Middleware.
GridLink data sources and multidata sources protect the SOA Infrastructure against database failures. You typically configure GridLink and multidata sources during system setup (defining multipools directly at installation time). When an Oracle Real Application Clusters (Oracle RAC) database instance fails, the connections are reestablished with available database instances. For more information about Gridlink and Oracle SOA Suite, see High Availability Guide.
In 12c (12.2.1), fault recovery is centralized at the SOA Infrastructure level (for all partitions) and individual partition level. This differs from 11g Release 1 (11.1.1) in which fault recovery actions were displayed at multiple levels (SOA Infrastructure, SOA composite application, service engine, and service component).
You perform fault recovery from the Flow Instances and Error Hospital pages in Oracle Enterprise Manager Fusion Middleware Control.
The following types of fault recovery are supported.
Recovery from individual faults, where you have access to the most granular recovery options specific to each type of fault
Recovery from multiple (bulk) faults, where you select multiple faults for recovery
For BPEL process faults, you can define a fault recovery policy in the Fault Policy Editor in Oracle JDeveloper. The Fault Policy Editor creates the required fault policy and fault policy binding files that are packaged with the SOA composite application that you deploy to the SOA Infrastructure and administer in Oracle Enterprise Manager Fusion Middleware Control.
Oracle Mediator and human workflow faults do not have the same behavior; they can create recoverable faults without any fault policy. For errors in human task service components or human workflow service engines, you perform fault recovery on faults identified as recoverable from Oracle BPM Worklist.
The following types of faults can be displayed in Oracle Enterprise Manager Fusion Middleware Control:
Business: Application-specific faults that are generated when there is a problem with the information being processed (for example, a social security number is not found in the database).
System: Network errors or other types of errors such as a database server or a web service being unreachable.
Oracle Web Service Manager (OWSM): Errors on policies attached to SOA composite applications, service components, or binding components. Policies apply security to the delivery of messages.
Faults can also be classified as either of the following:
Recoverable or nonrecoverable:
Only certain types of faults are identified as recoverable. Table 1-2 provides examples of several recoverable and nonrecoverable faults.
A fault is classified as a rejected message based on where it occurs. If a fault occurs before entering a SOA composite, without generating a business flow instance, it is classified as a rejected message. A system or a policy fault can be identified as a rejected message.
Table 1-2 Recoverable and Nonrecoverable Faults
|Recoverable Faults||Nonrecoverable Faults|
For more information about performing fault recovery, see Deleting or Terminating Business Flow Instances, Recovering from Faults in a Business Flow Instance, and Recovering From Faults in the Error Hospital.
For information about the Fault Policy Editor, see "How to Design a Fault Policy for Automated Fault Recovery with the Fault Policy Wizard" of Administering Oracle SOA Suite and Oracle Business Process Management Suite.
You can attach and detach policies at the following levels in Oracle Enterprise Manager Fusion Middleware Control:
SOA composite applications
Service and reference binding components
Policies apply security to the delivery of messages. Oracle Fusion Middleware uses a policy-based model to manage web services. The following types of policies are supported:
Security: Implements WS-Security 1.0 and 1.1 standards. They enforce authentication and authorization of users, identity propagation, and message protection (message integrity and message confidentiality).
Reliable Messaging: Supports the WS-ReliableMessaging protocol, guaranteeing the end-to-end delivery of messages.
Message Transmission Optimization Mechanism (MTOM): Ensures that attachments are in MTOM format, a format for efficiently sending binary data to and from web services.
WS-Addressing: Verifies that SOAP messages include WS-Addressing headers in conformance with the WS-Addressing specification. Transport-level data is included in the XML message rather than relying on the network-level transport to convey this information.
Management: Logs request, response, and fault messages to a message log. Management policies can include custom policies.
SOAP over JMS: Enables web services and clients to communicate using JMS destinations instead of HTTP connections.
Configuration: Enables web service features, such as Fast Infoset, schema validation, persistence, and so on.
Atomic Transactions: Supports web service WS-AtomicTransaction (WS-AT) transaction interoperability between Oracle WebLogic Server and other vendor's transaction processing systems.
Policies are part of an enterprise policy framework that allows policies to be centrally created and managed.
For more information, see the following documentation:
Securing Web Services and Managing Policies with Oracle Web Services Manager and Understanding Oracle Web Services Manager for definitions of available policies and details about which policies to use for your environment
Policies are executed before a message reaches the component with the attached policy. This causes the error to be displayed in the component preceding the component with the attached policy. For example:
A policy attached to an Oracle Mediator service component is executed on the wire before the message is passed to Oracle Mediator. This causes the fault to be displayed in the service binding component instead of Oracle Mediator.
A policy attached to a human task service component is executed in the preceding BPEL process service component before the message is passed to the human task service component. This causes the fault to be displayed in the BPEL process service component instead of the human task service component.
A policy attached to a human task service component is executed inside the BPMN process in the human steps associated with the human service component before the message is passed to the human task service component. This causes the fault to be displayed in the BPMN process service component instead of the human task service component.
To see the exact location of the policy error, view the audit trail.
You can administer the lifecycle state of deployed SOA composite applications from Oracle Enterprise Manager Fusion Middleware Control. An application is automatically activated when you deploy it to the SOA Infrastructure. During deployment, you can specify a specific revision number for the application. A revision is a specific deployed version of the application. You can deploy multiple revisions of an application, enabling all to run at the same time.
This is a key benefit of revisions. For example, you may have an older revision of an application running with one customer that is still valid. You then begin a partnership with a different customer that requires a slight modification to the design of the application. At some point, you plan to migrate the old customer to the newer revision of the application, but for now that is not necessary. Revisions enable you to run both applications.
The revision value is added to the application name in Oracle Enterprise Manager Fusion Middleware Control. For example, in Figure 1-1, revision 1.0 is the version for many deployed SOA composite applications. If a new request comes in for a specific composite application revision, that composite application revision is invoked. If a new request comes in without specifying a revision, the default revision is invoked. A small green dot distinguishes the default revision from other revisions.
You can perform the following lifecycle administration tasks on a SOA composite application from Oracle Enterprise Manager Fusion Middleware Control:
Create an instance.
Stop and restart application revisions. An application revision is typically started instantly after deployment.
Retire and activate application revisions. Application revisions are instantly activated upon deployment.
Set an application as the default version.
Deploy, undeploy, and redeploy application revisions.
Delete specific instances of an application revision.
For more information about administering the lifecycle states of a SOA composite application, see the following sections:
You can create, deploy, and run test cases that automate the testing of SOA composite applications. Test cases enable you to simulate the interaction between a SOA composite application and its references before deployment in a production environment. Test suites consist of a logical collection of one or more test cases. Each test case contains a set of commands to perform as the test instance is executed. The execution of a test suite is known as a test run. Each test corresponds to a business flow instance. You can also create BPEL process service component test cases in the SOA composite application test case. Instances generated by the execution of these tests are distinguished as test instances by a little yellow box next to their flow ID on the Flow Instances page of the SOA Infrastructure.
The test suite framework provides the following features:
Uses emulations to simulate the behavior of components with which your SOA composite application interacts during execution. Instead of invoking a specific component, you can specify a response from the component.
Uses assertions to validate data during process execution.
For information about the following:
Creating and running test cases, see Automating the Testing of SOA Composite Applications
Designing test cases for SOA composite applications, see Developing SOA Applications with Oracle SOA Suite
How you set configuration properties can impact Oracle SOA Suite performance. For example, you can set properties in the BPEL process service engine for allocating the number of threads for processing system, invoke, and engine dispatcher messages. Tuning information is described in the following documents.
For the following information, see Tuning Performance:
Use case tuning recommendations
Key tuning properties per component, including the following information:
Symptoms, if not properly tuned
Impact of changing properties from their default values
Recommendations if symptoms appear
Profile-based tuning recommendations (selecting a profile by answering questions during installation and tuning properties based on the profile selected).
For additional information about tuning Oracle SOA Suite components, see the following documentation:
Chapter "Managing Large Documents and Large Numbers of Instances" of Developing SOA Applications with Oracle SOA Suite
If you are an application developer, you can manage and test SOA composites using a combination of Oracle JDeveloper and Oracle Enterprise Manager Fusion Middleware Control.
See Developing SOA Applications with Oracle SOA Suite to develop SOA composite applications with Oracle JDeveloper, and refer to the following sections to deploy, monitor, and initiate a test instance of the SOA composite application with Oracle Enterprise Manager Fusion Middleware Control:
To create and design business processes with Oracle BPM Suite, see Developing Business Processes with Oracle Business Process Management Studio.
Oracle Enterprise Manager 12c Cloud Control enables you to monitor runtime and historical data for multiple Oracle Fusion Middleware farms and Oracle WebLogic Server domains.
Oracle Enterprise Manager 12c Cloud Control supports the discovery, monitoring, and central management of the entire family of Oracle Fusion Middleware components, including Oracle SOA Suite through the Oracle SOA Management Pack.
Oracle Enterprise Manager 12c Cloud Control is a separately licensed and installed component that is not part of the Oracle Fusion Middleware installation.
For more information, visit the following URL:
