Front Panel With Twelve 3.5-inch Drives

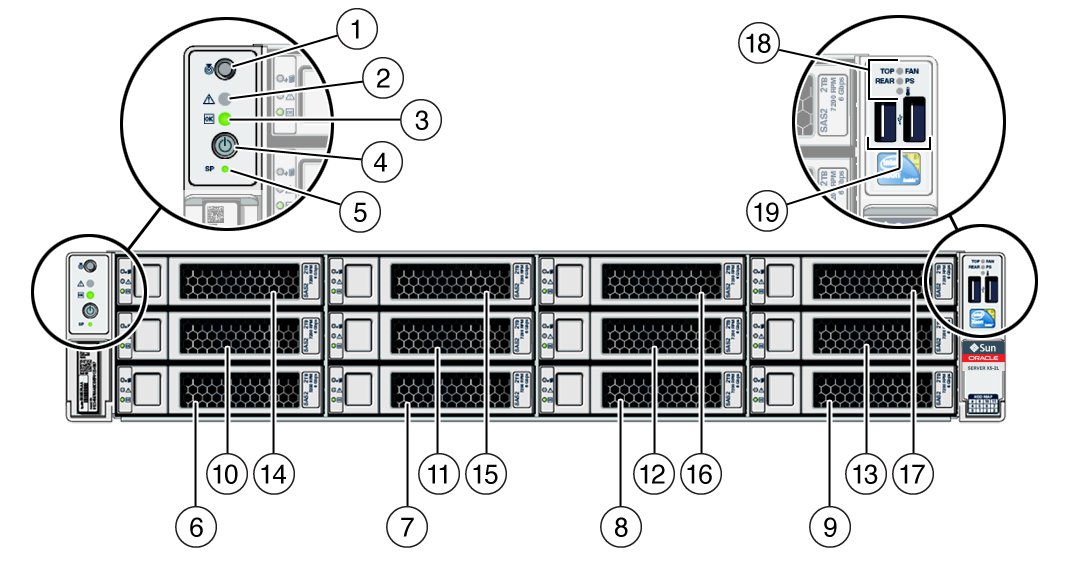

The following figure shows the status indicators (LEDs), connectors, and drives on
the front panel of a Oracle Exadata Storage Server X6-2 High Capacity configured with twelve 3.5-inch storage
drives.
|
|
|
1
|
Locator LED/Locator button: white
|
|
2
|
Service Action Required LED: amber
|
|
3
|
Power/OK LED: green
|
|
4
|
Power button
|
|
5
|
SP OK LED: green
|
|
6 - 17
|
Storage drive 0 (HDD) through storage drive 11 (HDD)
|
|
18
|
Top Fan Fault LED: amber; Power Supply (PS) Fault LED: amber; System Over Temperature Warning LED: amber
|
|
19
|
USB 2.0 connectors (2)
|
|
