Oracle^® Exadata Storage Server X6-2 High Capacity Installation Guide

Attach Tool-Less Slide-Rail Assemblies

Use this procedure to attach tool-less slide-rail assemblies to the rack.

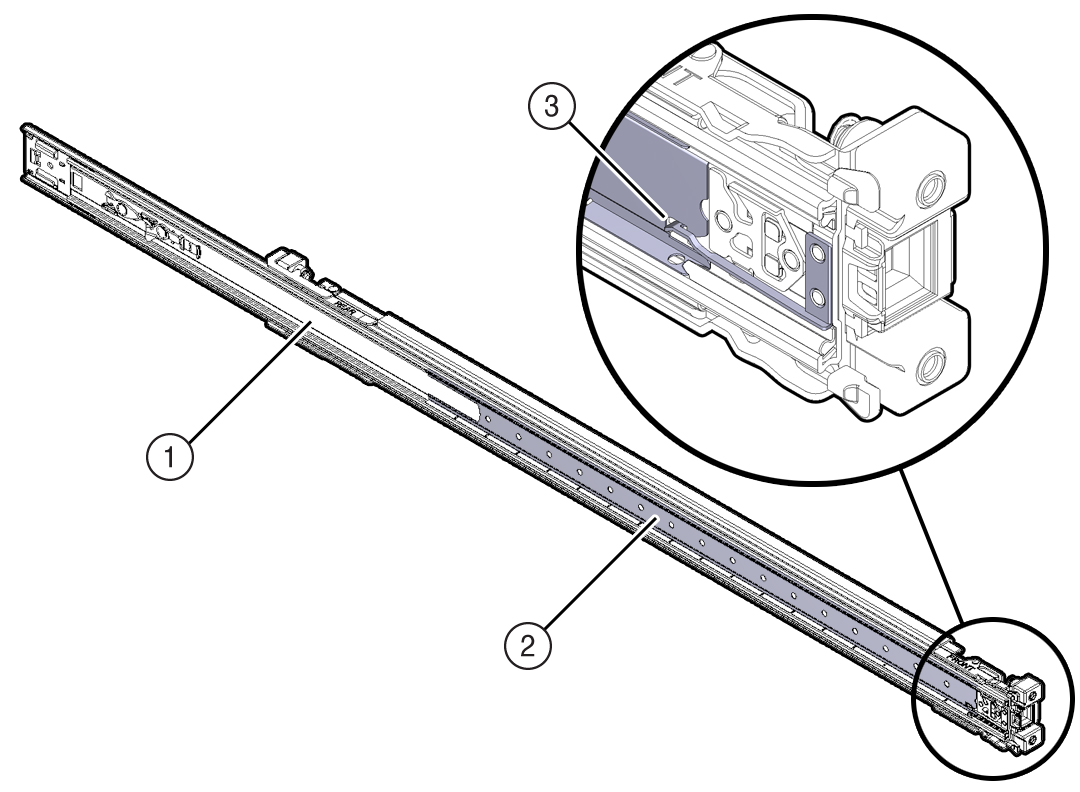

1. Orient one of the slide-rail assemblies [1] so that the ball-bearing track [2] is forward and locked in place [3].

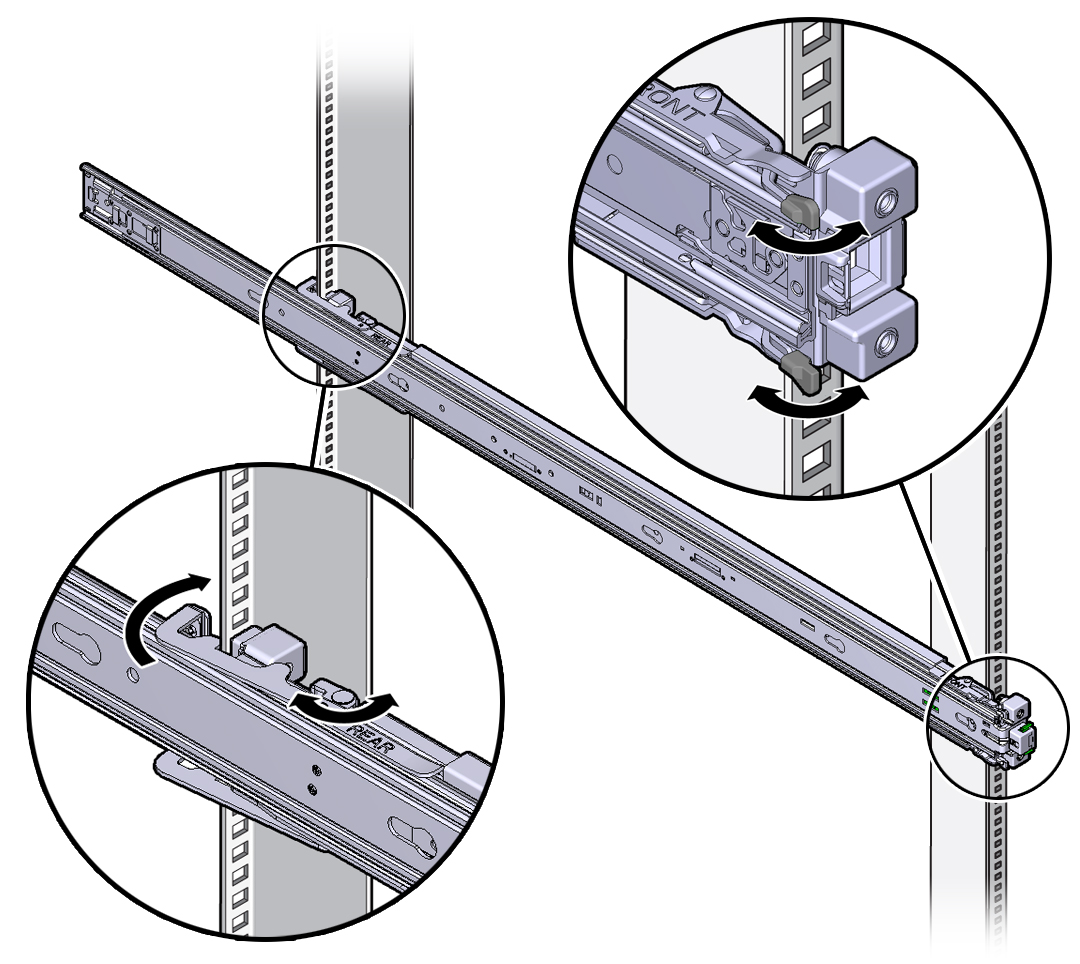

2. Starting with either the left or right side of the rack, align the rear of the slide-rail assembly against the inside of the rear rack rail, and push until the assembly locks into place with an audible click.

3. Align the front of the slide-rail assembly against the outside of the front rack rail, and push until the assembly locks into place with an audible click.
4. Repeat steps 1 through 3 to attach the second slide-rail assembly to the other side of the rack.
