Changing a GTT Action

This procedure is used to change the attributes of a GTT action entry using the chg-gttact command.

The chg-gttact command uses these parameters.

:act - the action that is applied to the message. This parameter has these values.
  • disc — discard the message with no return error.
  • dup — route a copy of the message to the specified duplicate node.
  • tcaperr — discard the message that has the specified TCAP error.
  • udts — discard the message and send an UDTS/XUDTS.
  • fwd — route the original message to the specified forward node instead of the destination indicated by the global title translation data.

:actid - the current name of the GTT action entry.

:nactid - the new name of the GTT action entry.

:atcaperr - the ANSI TCAP error cause - the reason for discarding the message containing the ANSI TCAP portion that is associated with the TCAP error GTT action.

:cdgtmodid - the name of the GT modification identifier that is associated with the called party of a GTT action entry.

:cggtmodid - the name of the GT modification identifier that is associated with the calling party of a GTT action entry.

:cgpc/cgpca/cgpci/cgpcn/cgpcn24 - the calling party point code.

Note:

See Chapter 2, "Configuring Destination Tables," in Database Administration - SS7 User's Guide for a definition of the point code types that are used on the EAGLE and for a definition of the different formats that can be used for ITU national point codes.

:cgpcogmsg - the data that is used as the calling party point code in the outgoing message.

:defactid - the default GTT action ID that is associated with the forward GTT action.

:itcaperr - the ITU TCAP error cause - the reason for discarding the message containing the ITU TCAP portion that is associated with the TCAP error GTT action.

:loopset - the name of the SCCP loopset name that is associated with the GTT action.

:mapset - the MAP set ID.

:mrnset - the MRN set ID.

:off - turns off the specified feature options.
  • :off=uimreqd - a UIM is not generated.
  • :off=useicmsg - apply the GTT action data to the message as the message was received.
:on - turns on the specified feature options.
  • :on=uimreqd - a UIM is generated.
  • :on=useicmsg - apply the GTT action data to the message after any EPAP or GTT translation/modification data has been applied.
:pc/pca/pci/pcn/pcn24 - the point code that the message will be routed to as a result of the duplicate or forward GTT action.

Note:

See Chapter 2, "Configuring Destination Tables," in Database Administration - SS7 User's Guide for a definition of the point code types that are used on the EAGLE and for a definition of the different formats that can be used for ITU national point codes.

:ri - the routing indicator in the SCCP called party address of the duplicated copy of MSU.

:ssn - the subsystem number (SSN) in the SCCP called party address of the MSU.

:udtserr - the reason associated with the UDTS GTT action for discarding the message.

The values for the actid, nactid, atcaperr, itcaperr, udtserr, pc/pca/pci/pcn/pcn24, ri, mrnset, mapset, ssn, loopset, cggtmodid, cdgtmodid, defactid, and cgpc/cgpca/cgpci/cgpcn/cgpcn24 parameters are shown in Table 4-51.

One of these features must be enabled depending on the act parameter value that will be specified with the GTT action.
  • act=disc, act=udts, act=tcaperr - GTT Action - DISCARD feature - part number 893027501.
  • act=dup - GTT Action - DUPLICATE feature - part number 893027601.
  • act=fwd - GTT Action - FORWARD feature - part number 893037501.

The status of these features is shown in the rtrv-ctrl-feat output. Perform the Activating the GTT Actions Features procedure to enable one or more of these features.

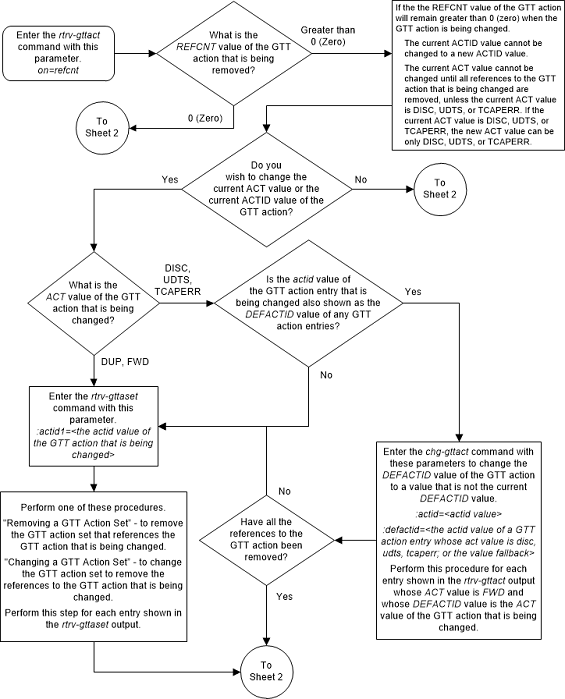

  1. Display the existing GTT action entries in the database by entering this command.

    rtrv-gttact:on=refcnt

    This is an example of the possible output.

    rlghncxa03w 10-07-07 00:27:31 GMT EAGLE5 42.0.0


    ACTID      ACTION   ATCAPERR ITCAPERR UDTSERR UIMREQD REFCNT
    ---------------------------------------------------------
    action2    disc     ---      ---      ---     off      2
    action10   disc     ---      ---      ---     off      3
    action11   disc     ---      ---      ---     on       1
    action15   udts     ---      ---      7       off      0
    action16   tcaperr  0        0        ---     off      5
    action17   tcaperr  10       20       ---     off      7


    ACTID      ACTION     PCA         RI  SSN  MRNSET  MAPSET  REFCNT
    -----------------------------------------------------------------------
    action1    dup      002-002-002   gt  ---  DFLT    -----   1
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action3    dup      003-003-003   gt  ---  1       -----   0
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action3    dup      002-002-002   gt  ---  DFLT    -----   2
         CDGTMODID = modid2     CGGTMODID = ---------
         LOOPSET = None
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action4    dup      002-002-002   gt  ---  DFLT    -----   1
         CDGTMODID = ---------  CGGTMODID = modid2
         LOOPSET = None
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action20   dup      002-002-002   gt  ---  DFLT    -----   1
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action21   dup      002-002-002   ssn 50   ----    DFLT    1
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action22   fwd      002-002-002   ssn 50   ----    DFLT    1
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None     DEFACTID = Fallback
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action23   fwd      002-002-002   gt  ---  DFLT    -----   1
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None     DEFACTID = Fallback
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action24   fwd      002-002-002   gt  ---  NONE    -----
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None     DEFACTID = Fallback
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---
    action25   fwd      002-002-002   gt  ---  NONE    -----   1
         CDGTMODID = ---------  CGGTMODID = ---------
         LOOPSET = None     DEFACTID = action10
         USEICMSG = off     CGPCOGMSG = dflt       CGPCA = ---


    ACTID      ACTION     PCI         RI  SSN  MRNSET  MAPSET  REFCNT
    -----------------------------------------------------------------------


    ACTID      ACTION     PCN         RI  SSN  MRNSET  MAPSET  REFCNT
    -----------------------------------------------------------------------


    ACTID      ACTION     PCN24       RI  SSN  MRNSET  MAPSET  REFCNT
    -----------------------------------------------------------------------


    GTT-ACT  table is (15 of 2000) 1% full.

    If the number of entities that reference the GTT action entry, the reference count, that is being changed is 0 (zero), continue the procedure with 4. The reference count is shown in the REFCNT column in the rtrv-gttact output.

    If the number of entities that reference the GTT action entry that is being removed is greater than 0 (zero), these actions cannot be performed in this procedure continue the procedure by performing one these steps.
    • The current actid value cannot be changed. If you wish to change the current actid value,
    • The current act value cannot be changed unless the current act value is either disc, udts, or tcaperr, and the new act value will be either disc, udts, or tcaperr.
    If you wish to change the current actid value or the current act value, continue the procedure by performing one of these steps.
    • If the current act value is dup or fwd, continue the procedure with 3.
    • If the current act value is disc, udts, or tcaperr, continue the procedure by performing one of these steps.
      • If the actid value of the GTT action entry that is being changed is not shown as the defactid value of another GTT action entry, an entry whose act value is fwd, continue the procedure with 3.
      • If the actid value of the GTT action entry that is being changed is shown as the defactid value of another GTT action entry, an entry whose act value is fwd, continue the procedure with 2.
  2. Enter the chg-gttact command with the actid and defactid parameters to change the defactid value of the GTT action entry to a value that is not the current defactid value.

    For this example, enter this command.

    chg-gttact:actid=action25:defactid=fallback

    When this command has successfully completed, this message should appear.

    rlghncxa03w 10-07-07 00:27:31 GMT EAGLE5 42.0.0

    GTT-ACT  table is (15 of 2000) 1% full.

    CHG-GTTACT: MASP A - COMPLTD

    Perform this step for each entry shown in the rtrv-gttact output whose act value is fwd and whose defactid value is the actid value of the GTT action entry that is being changed.

    If all the references to the GTT action entry that is being changed have been removed, continue the procedure with 4.

    If all the references to the GTT action entry that is being changed have not been removed, continue the procedure with 3.

  3. Display the GTT action sets that contain the GTT action entry that is being changed by entering the rtrv-gttact command with the name of the GTT action entry.

    For this example, enter these commands.

    rtrv-gttact:actid1=action10

    The following is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

    ACTSN      TEST  ActIds
               MODE
    -------------------------------
    act11      off   action10  (UDTS),------,------,
                     ------,------,------


    GTT-ASET table is (5 of 20000) 1% full.

    rtrv-gttact:actid1=action1

    The following is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

    ACTSN      TEST  ActIds
               MODE
    -------------------------------
    act1       off   action1   (DUP),action4   (DUP),action25  (FWD),
                     ------,------,------
    act5       on    action1   (DUP),action3   (DUP),action4   (DUP),
                     action20  (DUP),action21  (DUP),action17  (TCAPERR)


    GTT-ASET table is (5 of 20000) 1% full.
    Perform one of these procedures.

    Perform these procedures for each entry that is shown in the rtrv-gttaset output.

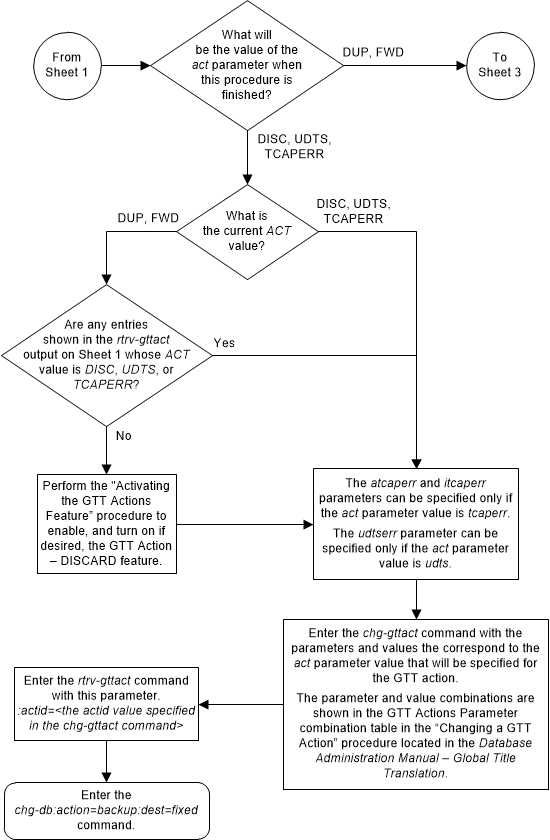

  4. Continue the procedure by performing one of these steps.
    If the act value of the GTT action entry will be disc, udts, or tcaperr when this procedure is finished, continue the procedure by performing one of these steps.
    • If the current act value is disc, udts, or tcaperr, continue the procedure with 16.
    • If the current act value is dup or fwd, continue the procedure by performing one of these steps.
      • If entries are shown in the rtrv-gttact output whose act values are disc, udts, or tcaperr, continue the procedure with 16.
      • If no entries are shown in the rtrv-gttact output whose act values are disc, udts, or tcaperr, perform the Activating the GTT Actions Features procedure to enable and turn on the GTT Action - DISCARD feature. After the Activating the GTT Actions Features procedure has been performed, continue the procedure with 16.
    If the act value of the GTT action entry will be dup when this procedure is finished, continue the procedure by performing one of these steps.
    If the act value of the GTT action entry will be fwd when this procedure is finished, continue the procedure by performing one of these steps.
  5. For GTT action entries whose act value will be either dup or fwd, the GTT action entry must contain a value for the ri parameter must be specified for the GTT action entry.

    If the ri parameter value for the GTT action entry will be gt, the pc/pca/pci/pcn/pcn24 parameter must be specified for the GTT action entry. The point code must be the DPC of a route and cannot contain a proxy point code.

    If the MRNSET column is shown in the rtrv-gttact output, the Flexible GTT Load Sharing feature is enabled. If the Flexible GTT Load Sharing feature is enabled, the mrnset parameter must be specified for the GTT action entry. The point code that will be assigned to the GTT action entry must be in an MRN set. MRN sets are shown in the rtrv-mrn output.

    If the ri parameter value for the GTT action entry will be ssn, the pc/pca/pci/pcn/pcn24 and ssn parameters must be specified for the GTT action entry. The point code and ssn values must be in the rtrv-map output.

    If the MAPSET column is shown in the rtrv-gttact output, the Flexible GTT Load Sharing feature is enabled. If the Flexible GTT Load Sharing feature is enabled, the mapset parameter must be specified for the GTT action entry. The point code and ssn values that will be assigned to the GTT action entry must be in a MAP set. MAP sets are shown in the rtrv-map output.

    If the ri value for the GTT action entry will be gt, the MRNSET column is not shown in the rtrv-gttact output, the mrnset parameter will not be specified for the GTT action entry, and the point code value for the GTT action entry is not shown in the rtrv-gttact output, continue the procedure with 7.

    If the ri value for the GTT action entry will be gt, the MRNSET column is shown in the rtrv-gttact output, and the point code and MRNSET values for the GTT action entry are not shown in the rtrv-gttact output, continue the procedure with 6.

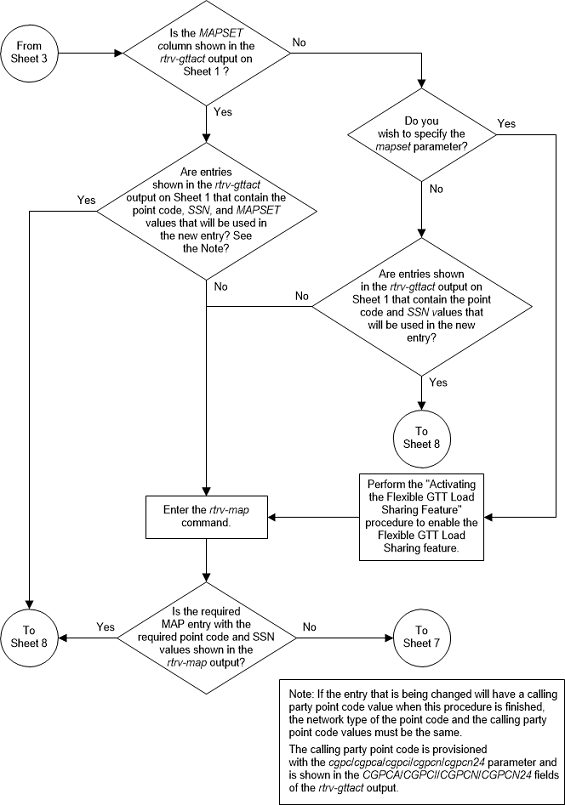

    If the ri value for the GTT action entry will be ssn, the MAPSET column is not shown in the rtrv-gttact output, the mapset parameter will not be specified for the GTT action entry, and the point code and SSN values for the GTT action entry is not shown in the rtrv-gttact output, continue the procedure with 10.
    • If you wish to specify the mapset parameter for the GTT action entry, perform the Activating the Flexible GTT Load Sharing Feature procedure to enable the Flexible GTT Load Sharing Feature. After this procedure has been performed, continue the procedure with 10.

    If the ri value for the GTT action entry will be ssn, the MAPSET column is shown in the rtrv-gttact output, and the point code, SSN, and MAPSET values for the GTT action entry are not shown in the rtrv-gttact output, continue the procedure with 10.

    Note:

    If the entry that is being changed will have a calling party point code value when this procedure is finished, the network type of the point code and the calling party point code values must be the same. The calling party point code is provisioned with thecgpc/cgpca/cgpci/cgpcn/cgpcn24parameter and is shown in theCGPCA/CGPCI/CGPCN/CGPCN24 fields in thertrv-gttact output.

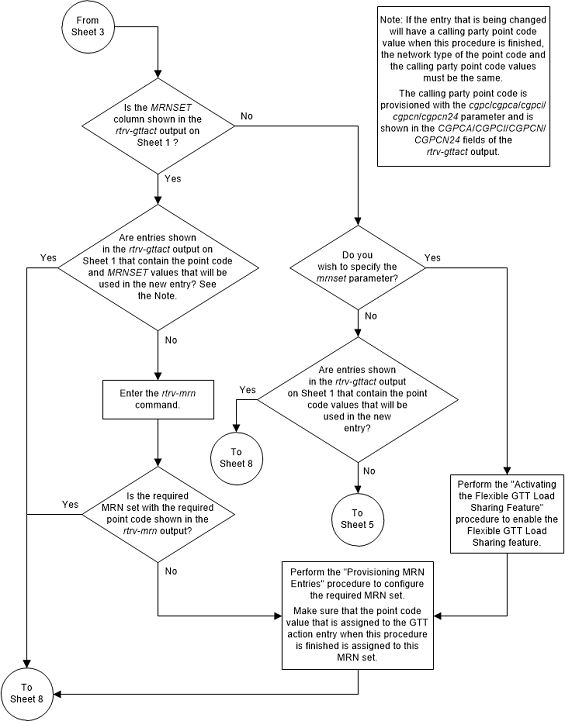

  6. Display the MRN entries entering the rtrv-mrn command.

    This is an example of the possible output.

    rlghncxa03w 10-07-28 21:15:37 GMT EAGLE5 42.0.0

       MRNSET      PC             RC
       DFLT        002-002-002     1
                   003-003-003     2

       MRNSET      PC             RC
       1           003-003-003     2
                   004-004-004     3
                   005-005-005     4

    MRN table is (5 of 6000) 1% full.

    If the required MRN set is shown in the rtrv-mrn output, continue the procedure with 13.

    If the required MRN set is not shown in the rtrv-mrn output, perform the Provisioning MRN Entriesprocedure to provision the required MRN set. After the Provisioning MRN Entriesprocedure has been performed, continue the procedure with 13.

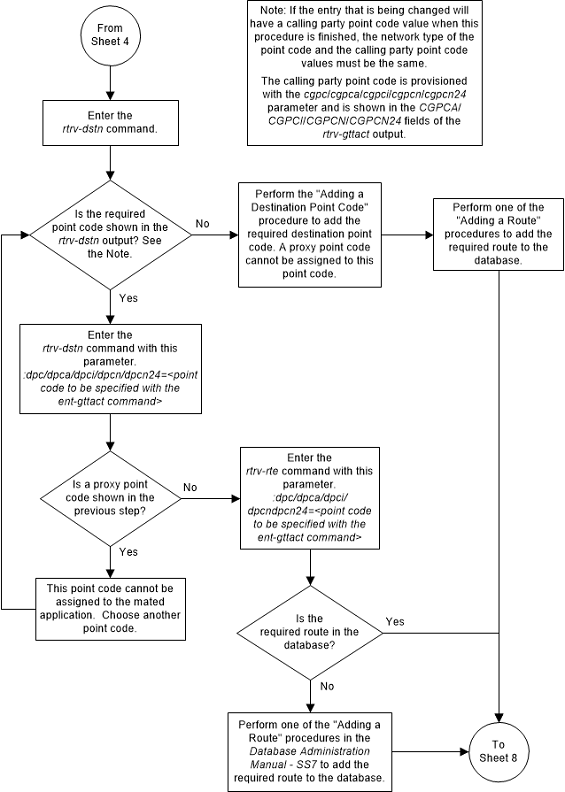

  7. Display the destination point codes in the database by entering the rtrv-dstn command. This is an example of the possible output.
    rlghncxa03w 10-12-10 11:43:04 GMT EAGLE5 43.0.0
    Extended Processing Time may be Required

       DPCA          CLLI        BEI ELEI   ALIASI           ALIASN/N24    DMN
       001-207-000   ----------- no  --- --------------   --------------   SS7
       001-001-001   ----------- no  --- --------------   --------------   SS7
       001-001-002   ----------- no  --- --------------   --------------   SS7
       001-005-000   ----------- no  --- --------------   --------------   SS7
       001-007-000   ----------- no  --- --------------   --------------   SS7
       008-012-003   ----------- no  --- --------------   --------------   SS7
       003-002-004   ----------- no  --- --------------   --------------   SS7
       009-002-003   ----------- no  --- --------------   --------------   SS7
       010-020-005   ----------- no  --- --------------   --------------   SS7

       DPCI          CLLI        BEI ELEI   ALIASA           ALIASN/N24    DMN
       1-207-0       ----------- no  --- --------------   --------------   SS7
       0-015-0       ----------- no  --- --------------   --------------   SS7
       0-017-0       ----------- no  --- --------------   --------------   SS7
       1-011-1       ----------- no  --- --------------   --------------   SS7
       1-011-2       ----------- no  --- --------------   --------------   SS7


    Destination table is (14 of 2000) 1% full
    Alias table is (0 of 12000) 0% full
    PPC table is (1 of 20) 5% full

    If the required point code is not shown in the rtrv-dstn output, perform the "Adding a Destination Point Code" procedure in Database Administration - SS7 User's Guide to add the required point code. A proxy point code cannot be assigned to the point code.

    After the new point code has been added, perform one of the Adding a Route procedures in the Database Administration - SS7 and add the required route to the database. After the route has been added, continue the procedure with 8.

  8. Display the point code that will be assigned to the global title translation by using the rtrv-dstn command and specifying the point code. For this example, enter this command.

    rtrv-dstn:dpca=010-020-005

    This is an example of the possible output.

    rlghncxa03w 10-12-10 11:43:04 GMT EAGLE5 43.0.0

       DPCA          CLLI        BEI ELEI   ALIASI           ALIASN/N24    DMN
       010-020-005   ----------- no  --- --------------   --------------   SS7

       PPCA         NCAI PRX     RCAUSE NPRST SPLITIAM HMSMSC HMSCP SCCPMSGCNV
       009-002-003  ---- no      50     on    20       no     no    none

    Destination table is (14 of 2000) 1% full
    Alias table is (0 of 12000) 0% full
    PPC table is (1 of 20) 5% full

    If the point code is not shown in the rtrv-dstn command output, the following output is displayed.

    rlghncxa03w 10-07-10 11:43:04 GMT EAGLE5 42.0.0

    No destinations meeting the requested criteria were found

    Destination table is (14 of 2000) 1% full
    Alias table is (0 of 12000) 0% full
    PPC table is (1 of 20) 5% full

    A proxy point code (a point code value is shown in the PPC column) cannot be assigned to the point code. If a proxy point code is shown in this step, choose another point code from the rtrv-dstn output in 7 and repeat this step.

    If the point code is not shown in the rtrv-dstn output, perform the “Adding a Destination Point Code” procedure in the Database Administration - SS7 and add the point code to the destination point code table.

  9. The point code specified with the ent-gtt command must be the DPC of a route, unless the point code is the EAGLE’s point code. Enter the rtrv-rte command with the dpc parameter specifying the point code to be used with the ent-gtt command to verify whether or not the point code is the DPC of a route.

    For this example, enter these commands.

    rtrv-rte:dpca=007-007-007

    This is an example of the possible output.

    rlghncxa03w 10-07-07 11:43:04 GMT  EAGLE5 42.0.0
       DPCA       ALIASI     ALIASN/N24     LSN        RC      APCA
    007-007-007  --------   -----------     ls03       10    007-007-007
                                            ls02       30    150-150-150
                                            lsa2       50    200-200-200
                                                   RTX:No  CLLI=ls03clli

    rtrv-rte:dpca=003-003-003

    This is an example of the possible output.

    rlghncxa03w 10-07-07 11:43:04 GMT  EAGLE5 42.0.0
       DPCA        ALIASI     ALIASN/N24    LSN        RC    APCA
    003-003-003   --------    ----------    ls02       10    002-002-002
                                            ls08       30    025-025-150
                                            lsa5       50    066-030-100
                                                   RTX:No  CLLI=ls07clli

    If the point code is not shown in the rtrv-rte output, perform one of the Adding a Route procedures in Database Administration - SS7 User's Guide and add the required route to the database. After the route has been added, continue the procedure with 13.

  10. Enter the rtrv-map command with the point code and SSN value that will be specified for the GTT action entry.

    For this example enter this command.

    rtrv-map:pca=005-005-005:ssn=75

    If the Flexible GTT Load Sharing feature is not enabled, this is an example of the possible output.

    rlghncxa03w 09-07-25 09:42:31  GMT  EAGLE5 41.1.0

       PCA            Mate PCA      SSN RC MULT SRM MRC GRP NAME SSO
       005-005-005                  250 10  SOL *Y  *Y  GRP01     ON


    MAP table is (37 of 1024) 4% full.

    If the Flexible GTT Load Sharing feature is enabled, this is an example of the possible output.

    rlghncxa03w 09-07-25 09:42:31  GMT  EAGLE5 41.1.0

       MAPSET ID=DFLT
       PCA            Mate PCA      SSN RC MULT SRM MRC GRP NAME SSO
       005-005-005                   55  5  DOM YES YES -------- OFF
                      001-001-002    15 15  DOM YES YES -------- ON
                      001-001-003    25 20  DOM YES YES -------- ON
                      001-001-002    40 35  DOM YES YES -------- OFF

       MAPSET ID=1
       PCA            Mate PCA      SSN RC MULT SRM MRC GRP NAME SSO
       005-005-005                   50  5  DOM YES YES -------- OFF
                      001-001-002    10 15  DOM YES YES -------- ON
                      001-001-003    20 20  DOM YES YES -------- ON
                      001-001-002    40 35  DOM YES YES -------- OFF

       MAPSET ID=    2
       005-005-005                    5 10  SOL *Y  *Y  -------- OFF

    MAP table is (12 of 36000) 1% full.

    If the required MAP entry is shown in the rtrv-map output, continue the procedure with 13.

    If the required MAP entry is not shown in the rtrv-map output, continue the procedure with 11.

  11. Display the EAGLE self-identification, using the rtrv-sid command.

    This is an example of the possible output.

    rlghncxa03w 10-07-10 11:43:04 GMT EAGLE5 42.0.0

    PCA               PCI          PCN           CLLI         PCTYPE
    010-020-030     1-023-1      12-0-14-1     rlghncxa03w    OTHER
                  s-1-023-1    s-12-0-14-1

    CPCA
    002-002-002       002-002-003       002-002-004      002-002-005
    002-002-006       002-002-007       002-002-008      002-002-009
    004-002-001       004-003-003       050-060-070

    CPCI
    1-001-1           1-001-2           1-001-3          1-001-4
    1-002-1           1-002-2           1-002-3          1-002-4
    2-001-1           7-222-7

    CPCN
    2-0-10-3          2-0-11-0          2-0-11-2          2-0-12-1
    2-2-3-3           2-2-4-0           10-14-10-1
    If the point code that will be specified for the GTT action entry is not shown in this step as the EAGLE's point code, perform one of these procedures to provision the required MAP entry. After the required MAP entry has been provisioned, continue the procedure with 13.
    If the point code that will be specified for the GTT action entry is shown in this step as the EAGLE's point code, perform one of these procedures to provision the required MAP entry. After the required MAP entry has been provisioned, continue the procedure with 12.
  12. Enter the rtrv-ss-appl command to verify that either the LNP, EIR, V-Flex, ATINPQ, INP, or AIQ subsystem number (depending on which feature is on) is in the subsystem application table.

    This is an example of the possible output.

    rlghncxa03w 10-07-28 14:42:38 GMT EAGLE5 42.0.0
    APPL       SSN       STAT
    LNP        254       ONLINE

    SS-APPL table is 20% FULL (1 of 5)

    If the subsystem number is shown in the rtrv-ss-appl output, continue the procedure with 13.

    If no subsystem number is shown in the rtrv-ss-appl output, or if the rtrv-ss-appl command is rejected, perform the procedures in one of these user's guide, depending on the type of subsystem you wish to use, to enable and turn on the feature as necessary, and add the subsystem to the subsystem application table.
    • EIR subsystem – go to EIR User's Guide.
    • INP subsystem – go to INP/AINPQ User's Guide.
    • LNP subsystem – go to ELAP Administration and LNP Feature Activation Guide.
    • V-Flex subsystem – go to V-Flex User's Guide.
    • ATINPQ subsystem – go to ATINP.
    • AIQ subsystem – go to Analyzed Information Features User's Guide.
  13. Continue the procedure by performing one of these steps.

    If the loopset parameter will be specified for the GTT action entry, continue the procedure with 14. If LOOPSET values are shown in the rtrv-gttact output and you wish to use one of these values for the GTT action entry, 14 does not need to be performed.

    If the loopset parameter will not be specified for the GTT action entry, but the cdgtmodid or cggtmodid parameters will be specified for the GTT action entry, continue the procedure with 15. If CDGTMODID or CGGTMODID values are shown in the rtrv-gttact output and you wish to use one of these values for the GTT action entry, 15 does not need to be performed.

    Continue the procedure with 16 if the GTT action entry will not contain these parameter values.

    • If the loopset, cdgtmodid, and cggtmodid parameters will not be specified for the GTT action entry and the act value of the GTT action entry will be dup.
    • If the loopset, cdgtmodid, cggtmodid, and the defactid parameters will not be specified for the GTT action entry and the act value of the GTT action entry will be fwd.
  14. Display all the loopsets in the database by entering this command

    rtrv-loopset:num=1000:force=yes

    This is an example of the possible output.
    LoopSet            Mode          Point Codes
    ====================================================================
    cary2             notify         005-015-005     007-007-007 (ANSI)
                                     033-004-003     033-007-003
                                     005-027-005     007-004-007
    cary4             notify         005-012-005     007-026-007 (ANSI)
                                     003-049-003     033-002-003
                                     005-008-055     007-014-007
    apex3             discard        005-017-008     007-017-009 (ANSI)
                                     033-005-043     005-014-005
                                     005-017-005     007-014-007
                                     033-002-043     005-038-005
                                     007-009-027     033-003-043
                                     005-012-005     007-002-027
    apex4             discard        005-007-008     027-007-009 (ANSI)
                                     033-005-003     005-004-055
                                     027-001-007     033-008-003
                                     033-007-003     005-003-055
                                     027-008-007
    ral5              notify         005-005-005     007-007-007 (ANSI)
                                     003-004-003     003-001-003
                                     005-007-005     007-004-007
                                     003-002-003     005-008-005
                                     007-009-007     003-003-003
                                     005-002-005     007-002-007
    ral6              notify         005-007-008     007-007-009 (ANSI)
                                     003-005-003     003-007-003
                                     005-007-005
    dunn1             discard        005-002-055     007-051-007 (ANSI)
                                     003-008-033
    rtp9              discard        005-002-005     007-001-007 (ANSI)
                                     003-008-003     003-007-003
                                     005-003-005     007-008-007
                                     005-004-005
    rtp5              discard        005-007-008     007-007-009 (ANSI)
                                     003-005-003
    rtp1              discard        005-005-005     007-007-007 (ANSI)
                                     003-004-003     003-007-003
                                     005-007-005     007-004-007
                                     005-004-005
    rtp2              notify         005-007-008     007-007-009 (ANSI)
                                     003-005-003


    rlghncxa03w 09-05-28 21:15:37 GMT EAGLE5 41.0.0
    LOOPSET table is (11 of 1000) 1% full
    RTRV-LOOPSET: MASP A - COMPLTD

    Note:

    If thertrv-loopset command is entered with no other parameters specified, a maximum of 50 entries are displayed. To display more than 50 entries, theforce=yesparameter must be specified with thertrv-loopset command and the num parameter value must be greater than 50. Since there can be a maximum of 1000 loopsets in the database, to display all the loopsets in the database, theforce=yes andnum = 1000parameters must be specified with thertrv-loopset command.

    If the required loopset is not shown in the rtrv-loopset output, perform the Adding a Loopset procedure to add the required loopset.

    If the required loopset is shown in the rtrv-loopset output, or if he Adding a Loopset procedure was performed and the cdgtmodid or cggtmodid parameters will be specified for the GTT action entry, continue the procedure with 15.

    If CDGTMODID or CGGTMODID values are shown in the rtrv-gttact output and you wish to use one of these values for the GTT action entry, 15 does not need to be performed. Continue the procedure with 16.

    Note:

    If an ANSI point code will be assigned to the GTT action entry when this procedure is completed, theNGTI value in the GT modification entry must be 2.
  15. Display the GT modification information in the database using the rtrv-gtmod command.

    This is an example of the possible output.

    rlghncxa03w 10-07-07 00:29:31 GMT EAGLE5 42.0.0

    GTMODID   NTT  NGTI  GT0FILL  NNP  NNAI  NPDD  NSDD  PRECD  CGPASSN
    modid2     --     2       ON   --    --    --    --    PFX       --
          NPDS=                       NSDS=
    modid5     --     2      OFF   --    --    --    --    PFX       --
          NPDS=                       NSDS=
    modid6     --     4       ON    4     5     3     3    SFX       --
          NPDS=123                    NSDS=456
    modid10    --    --      OFF    5     5    --    --    PFX       --
          NPDS=                       NSDS=
    modid11    --    --      OFF    5     5    --    --    PFX       --
          NPDS=                       NSDS=


    GTMOD table is (5 of 100000) 1% full.

    If the desired GT modification entry is not displayed, perform the Adding Global Title Modification Information procedure to add the desired GT modification entry to the database.

    If the desired GT modification entry is displayed or the Adding Global Title Modification Information procedure was performed, continue the procedure with 16.

    Note:

    If an ANSI point code will be assigned to the GTT action entry when this procedure is completed, theNGTI value in the GT modification entry must be 2.
  16. Change the GTT action entry using the chg-gttact command.

    Table 4-51 shows the parameter combinations that can be used with the chg-gttact command.

    For this example, enter these commands.

    chg-gttact:actid=action10:nactid=action50:act=dup:pc=002-002-002:ri=gt :mrnset=2:cdgtmodid=modid2:cggtmodid=modid5:loopset=loop1:on=useicmsg

    chg-gttact:actid=action1:nactid=action60:act=tcaperr:atcaperr=40:itcaperr=60

    When this command has successfully completed, this message should appear.

    rlghncxa03w 10-07-07 00:29:31 GMT EAGLE5 42.0.0

    GTT-ACT  table is (15 of 2000) 1% full.

    CHG-GTTACT: MASP A - COMPLTD
  17. Verify the changes using the rtrv-gttact command with the current name of the GTT action entry that was changed, if the name the GTT action entry was not changed in 16, or the new name of the GTT action entry if the name of the GTT action entry was changed in 16.

    For this example, enter these commands.

    rtrv-gttact:actid=action50

    The following is an example of the possible output.

    rlghncxa03w 10-07-07 00:27:31 GMT EAGLE5 42.0.0


    ACTID      ACTION   ATCAPERR ITCAPERR UDTSERR UIMREQD
    ---------------------------------------------------------


    ACTID      ACTION   PCA           RI  SSN  MRNSET  MAPSET
    -----------------------------------------------------------------------
    action50   dup      002-002-002   gt  ---  2       -----
         CDGTMODID = modid2     CGGTMODID = modid5
         LOOPSET = loop1
         USEICMSG = on      CGPCOGMSG = dflt       CGPCA = ---


    ACTID      ACTION   PCI           RI  SSN  MRNSET  MAPSET
    -----------------------------------------------------------------------


    ACTID      ACTION   PCN           RI  SSN  MRNSET  MAPSET
    -----------------------------------------------------------------------


    ACTID      ACTION   PCN24         RI  SSN  MRNSET  MAPSET
    -----------------------------------------------------------------------


    GTT-ACT  table is (15 of 2000) 1% full.

    rtrv-gttact:actid=action60

    The following is an example of the possible output.

    rlghncxa03w 10-07-07 00:27:31 GMT EAGLE5 42.0.0


    ACTID      ACTION   ATCAPERR ITCAPERR UDTSERR UIMREQD
    ---------------------------------------------------------
    action60   tcaperr  40       60       ---     off


    GTT-ACT  table is (15 of 2000) 1% full.
  18. Backup the new changes using the chg-db:action=backup:dest=fixed command.
    These messages should appear, the active Maintenance and Administration Subsystem Processor (MASP) appears first.
    BACKUP (FIXED) : MASP A - Backup starts on active MASP.
    BACKUP (FIXED) : MASP A - Backup on active MASP to fixed disk complete.
    BACKUP (FIXED) : MASP A - Backup starts on standby MASP.
    BACKUP (FIXED) : MASP A - Backup on standby MASP to fixed disk complete.

Figure 4-52 Change a GTT Action - Sheet 1 of 10

Figure 4-53 Change a GTT Action - Sheet 2 of 10

Figure 4-54 Change a GTT Action - Sheet 3 of 10

Figure 4-55 Change a GTT Action - Sheet 4 of 10

Figure 4-56 Change a GTT Action - Sheet 5 of 10

Figure 4-57 Change a GTT Action - Sheet 6 of 10

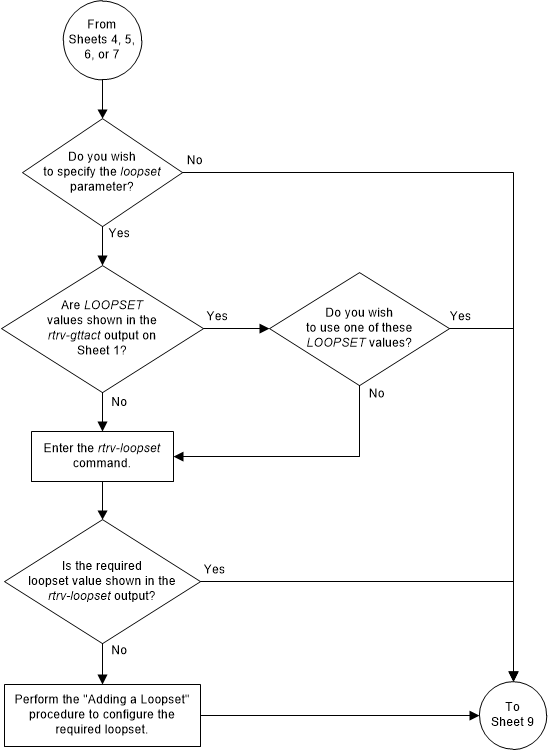

Figure 4-58 Change a GTT Action - Sheet 7 of 10

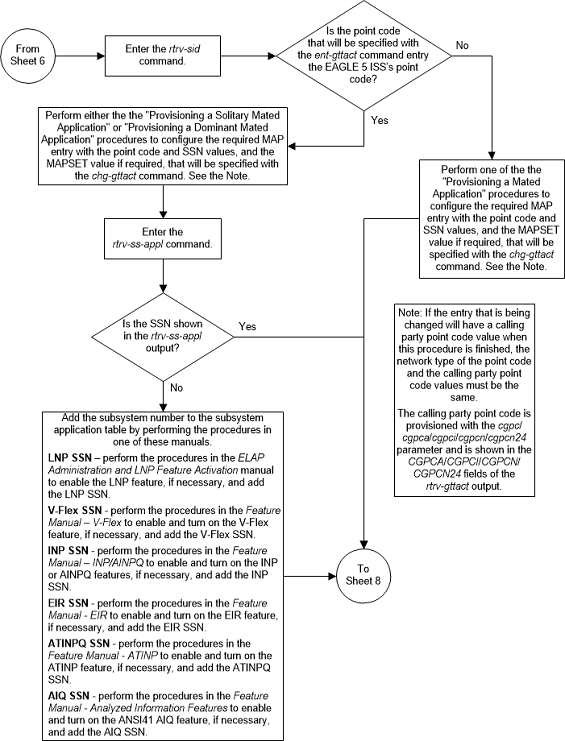

Figure 4-59 Change a GTT Action - Sheet 8 of 10

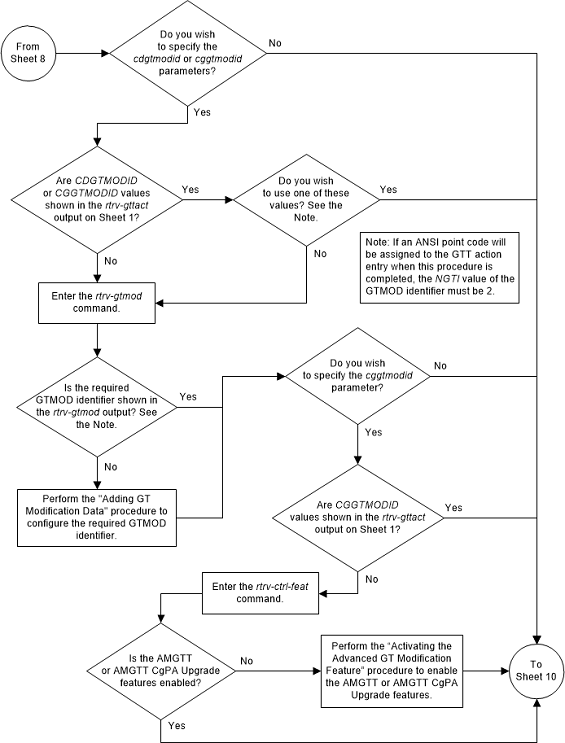

Figure 4-60 Change a GTT Action - Sheet 9 of 10

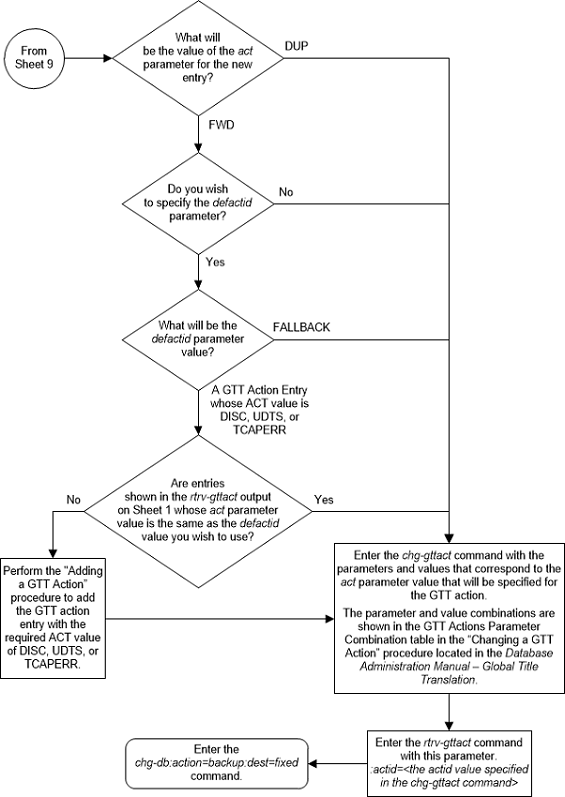

Figure 4-61 Change a GTT Action - Sheet 10 of 10
