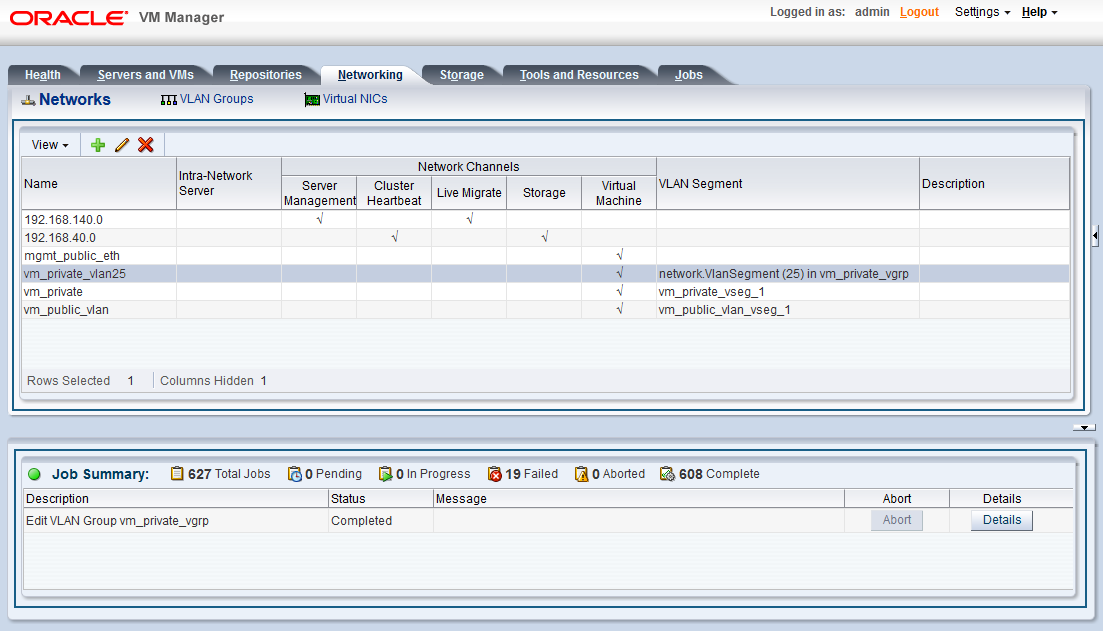

The Networking tab is used to manage networks within the Oracle VM environment running on the Oracle PCA.
By default, a number of networks are defined during factory installation. These must not be altered as they are required for the correct operation of the Oracle PCA software layer.
The default networks are set up as follows:
192.168.140.0
: the management networkThis is a private network used exclusively for Oracle VM management traffic. Both management nodes and all compute nodes are connected to this network through their
bond0
interface.192.168.40.0
: the storage networkThis is a private IPoIB network used exclusively for traffic to and from the ZFS storage appliance. Both management nodes and both storage controllers are connected to this network through their
bond1
interface.
Additionally, three networks are listed with the VM Network role:
vm_public_vlan
This default network is the standard choice for virtual machines requiring external network connectivity. It supports both tagged and untagged traffic. For untagged traffic it uses VLAN 1 from the VLAN Group named
vm_public_vlan_vgrp
, meaning no additional configuration is required.If you prefer to use VLANs for your VM networking, configure the VLAN tags of your choice as follows:
Add the tags or IDs to the VLAN Group
vm_public_vlan_vgrp
.The process for editing VLAN Groups is described in the Oracle VM User's Guide in the section entitled Editing a VLAN Group.
Create a new VLAN-only network with the VM role for each VLAN tag you added to the VLAN Group. Each new network should be configured like the
vm_public_vlan
network, but with a different VLAN segment.The process for creating VLAN-only networks is described in the Oracle VM User's Guide in the section entitled Creating a Network.
Configure your data center network accordingly.
For details, see Section 7.3, “Configuring Data Center Switches for VLAN Traffic”.
vm_private
This default network is intended for virtual machines requiring network connectivity to other virtual machines hosted on the appliance, but not external to the appliance. It uses VLAN 1 from the VLAN Group named
vm_private_vgrp
. To use the VLANs of your choice configure them as follows:Add the tags or IDs to the VLAN Group
vm_private_vgrp
.The process for editing VLAN Groups is described in the Oracle VM User's Guide in the section entitled Editing a VLAN Group.
Create a new VLAN-only network with the VM role for each VLAN tag you added to the VLAN Group. Each new network should be configured like the
vm_private
network, but with a different VLAN segment.The process for creating VLAN-only networks is described in the Oracle VM User's Guide in the section entitled Creating a Network.
mgmt_public_eth
This network is automatically created during the initial configuration of the appliance. It uses the public network that you configured in the Oracle PCA Dashboard. The primary function of this network is to provide access to the management nodes from the data center network, and enable the management nodes to run a number of system services. As long as you have not configured this network with a VLAN tag, it may also be used to provide external untagged network access to virtual machines. The subnet associated with this network is the same as your data center network.
CautionAlways use the
vm_public_vlan
network as your first VM network option. Themgmt_public_eth
is unavailable for VM networking when configured with a management VLAN. When no management VLAN is configured, it is restricted to untagged VM traffic, and should only be considered if the circumstances require it.
For more information about Oracle PCA network configuration, see Section 1.2.4, “Network Infrastructure”.
Do not create a new network in Oracle VM using the
eth0
network ports of the servers in the
server pool. Those ports are assigned an IP address by the DHCP
server on the internal appliance management network
(192.168.4.0
). If virtual machines are
connected to this network, they are likely to cause IP conflicts
and security issues.
Do not edit or delete any of the networks listed here. Doing so may cause your appliance to malfunction. In an Oracle PCA context, use the Networking tab to configure and manage Virtual NICs and VLANs for use by your virtual machines.
The creation and management of Virtual NICs is important for the facilitation of networking within your virtual machines. Use the Virtual NICs subtab to create batches of Virtual NICs that virtual machines are able to use. The process for creating Virtual NICs is described in the Oracle VM User's Guide in the section entitled Managing VNICs.
