Install the System With the Express Rail Kit

  1. Attach mounting brackets to each side of the system.

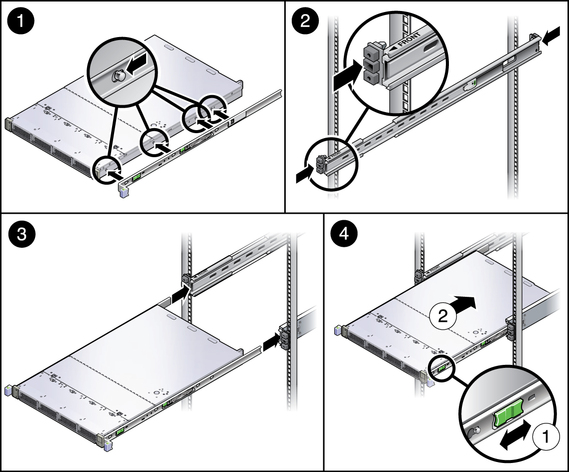

    Figure 2 Express Rail Kit Installation

    Illustrated steps for installing the system using the express rail kit.
  2. Attach the slide rails to the rack.
    1. Orient the slide rails so the end marked “front” aligns with the front of the rack.
    2. Extend the slide rails to fit the rack, then attach each rail to the rack by clicking the ends into place.

    Caution

    Caution - Stabilize the cabinet: extend the rack anti-tip device.


  3. With the rack rails inside the cabinet, align the mounting brackets with the slide rails and insert the server halfway.
  4. Slide the green release tabs on the mounting bracket toward the front of the server, and push system into the rack.
