Remove the Express Slide Rails from the Rack

Before You Begin

Before you begin, Remove the System From the Rack.

  1. With slide rails fully extended, press and hold the green metal lever while pushing the slide rail middle section into rack.

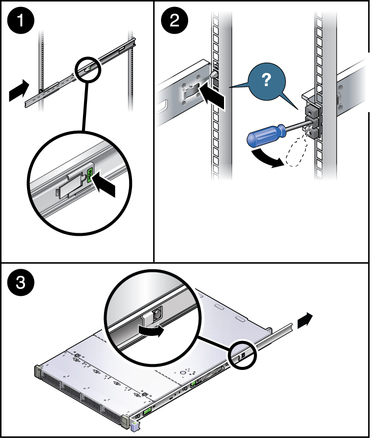

    Figure 5 Removing the Slide Rails

    Image showing how to disconnect the slide rails from the rack.
  2. Disconnect slide rails from the rack using one of these methods:
    • If there is room to reach above and over the slide rails, press the release tab on the outside of the slide rail.

      Repeat for the rest of the slide rail ends.

    • If the rack is fully populated, insert a #0 screw driver in the hole on the face of the slide rail, and press the screwdriver against the release tab.

      Repeat for the rest of the slide rail ends.

  3. (Optional) Remove the mounting brackets from the server.
