The Sun Storage F5100 Flash Array has the following replaceable components:
Energy storage components: The energy storage backplane (ESB) and energy storage modules (ESMs) that facilitate backup power for the storage array
Motherboard assembly: Motherboard, tray, and mezzanine boards
Flash Modules (FMods): Memory modules for the storage array
Power supply units (PSUs): Supply power to the storage array
Power distribution board (PDB): Distributes power to components in the array
Connector board: Connects the PDB, fan board, and ESB to each other
Fan modules: Cool the storage array
Fan board assemblies: Direct power to the fan modules

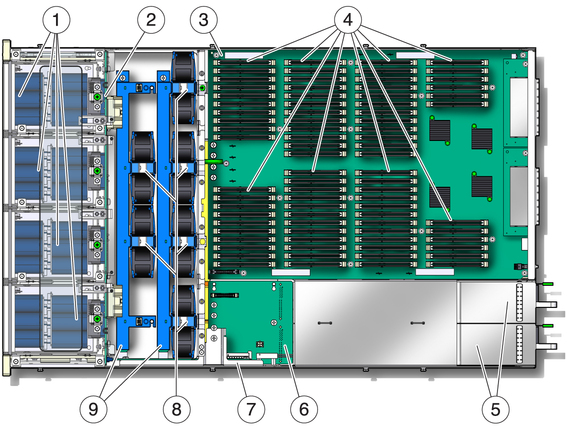

System Components shows the locations of the Sun Storage F5100 Flash Array components.
Figure 21 System Components
1 ESMs (4)
2 ESB
3 Motherboard assembly
4 Flash Modules (FMods) (80)
5 PSUs (2)
6 PDB
7 Connector board
8 Fan modules (6), total of 12 fans
9 Fan board assemblies (2)
