Install the Energy Storage Backplane

1. Align the backplane with the rear of the energy storage cage as shown in panel 1 of Installing the Energy Storage Backplane.

   ---

   Caution - When moving the backplane into place, avoid the exposed light pipes.

   ---

2. Using a No. 2 Phillips screwdriver, replace the screws that secure the backplane to the cage. Using a No. 1 Phillips screwdriver, also replace the screws on the far left and far right ends of the backplane. Refer to panel 2 of Installing the Energy Storage Backplane.
3. Lay the assembly down as shown in panel 3 and slide the entire assembly toward the rear of the system as shown in panel 4 of Installing the Energy Storage Backplane.
4. Using a No. 2 Phillips screwdriver, reinstall two screws on each side of the chassis as shown in panel 5 of Installing the Energy Storage Backplane.

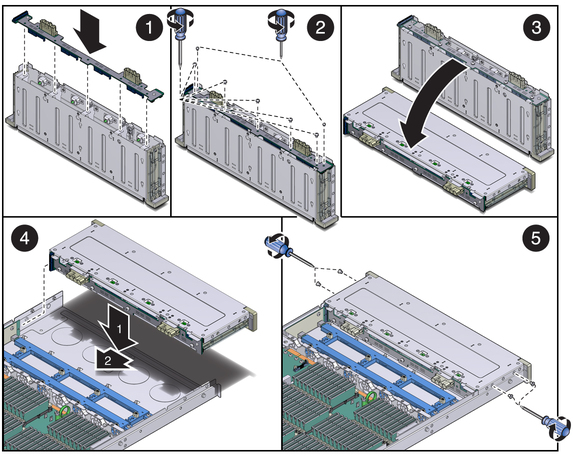

   Figure 44 Installing the Energy Storage Backplane


5. Reinstall the two cables that connect the backplane to the motherboard as shown in Installing Cables on Backplane.


   Figure 45 Installing Cables on Backplane


6. Replace the top chassis cover.

   Refer to Replace the Top Chassis Cover.

7. Reinstall the rail glides on the chassis.

   Depending on the type of rail kit you have installed, installing these glides will involve one of the following procedures:

   • Slide each rail glide onto the mounting studs on the chassis until the glide snaps into place.
   • Install the screws that secure the glides to the chassis.
8. Return the system to the installed position.

   Refer to Return the System to the Fully Installed Position.

9. Reconnect cables that were disconnected before the backplane was removed.
10. Restore power to the system.

    Refer to Power On the System.
