Back Panel Connectors and Ports

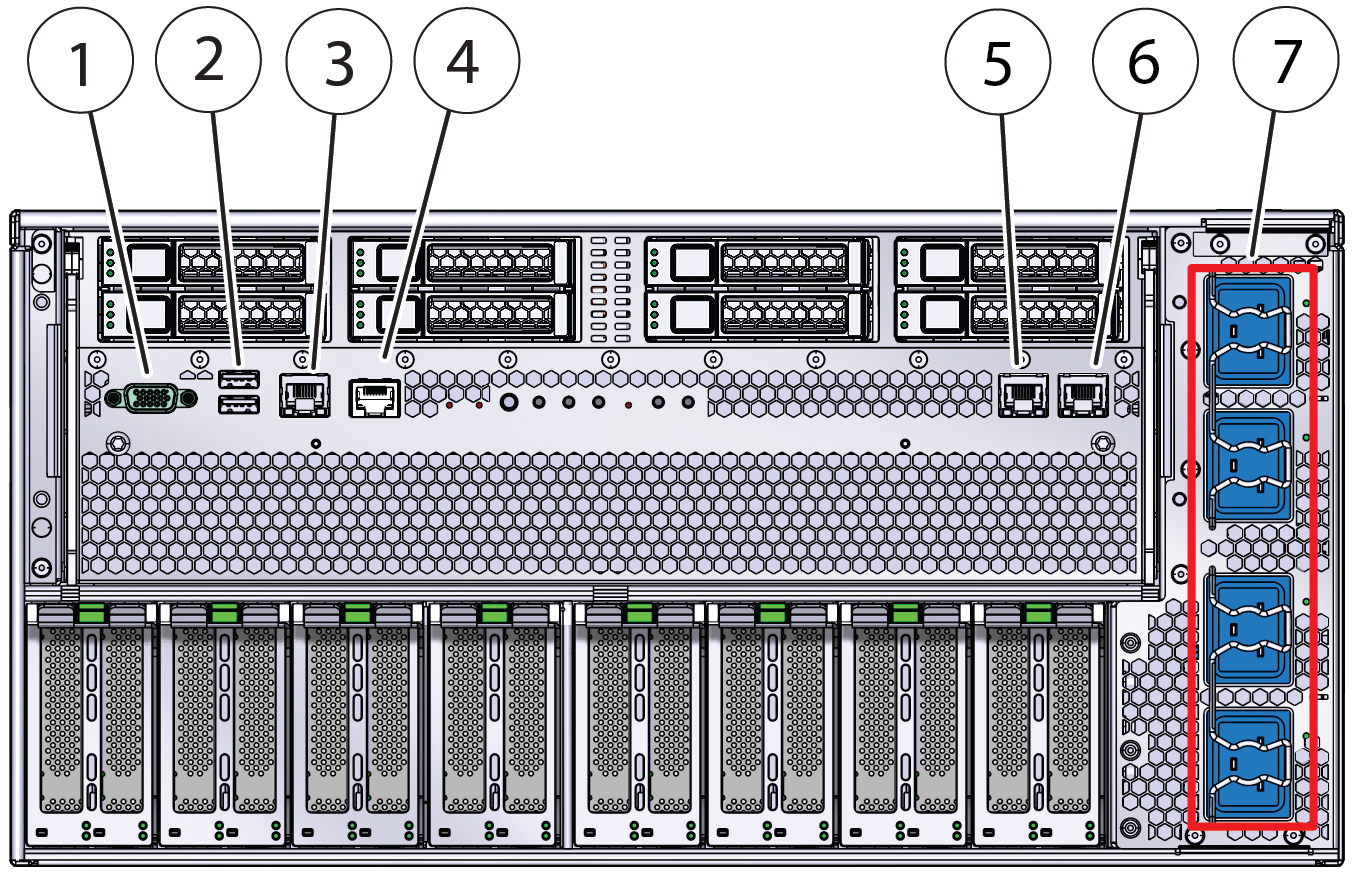

The following figure shows the locations of the server back panel connectors and
ports:
|
|
1
|
DB-15 video port
|
2
|
USB 2.0 ports (2)
|
3
|
Net management port (NET MGT)
|
4
|
Serial management port (SER MGT)
|
5
|
Net 0 port
|
6
|
Net 1 port
|
7
|
Power connectors 0 through 3. Connect to 200-240 VAC only.
|
|
