Server Overview
This topic provides a high-level introduction to the main
components and capabilities of the server.
|
|

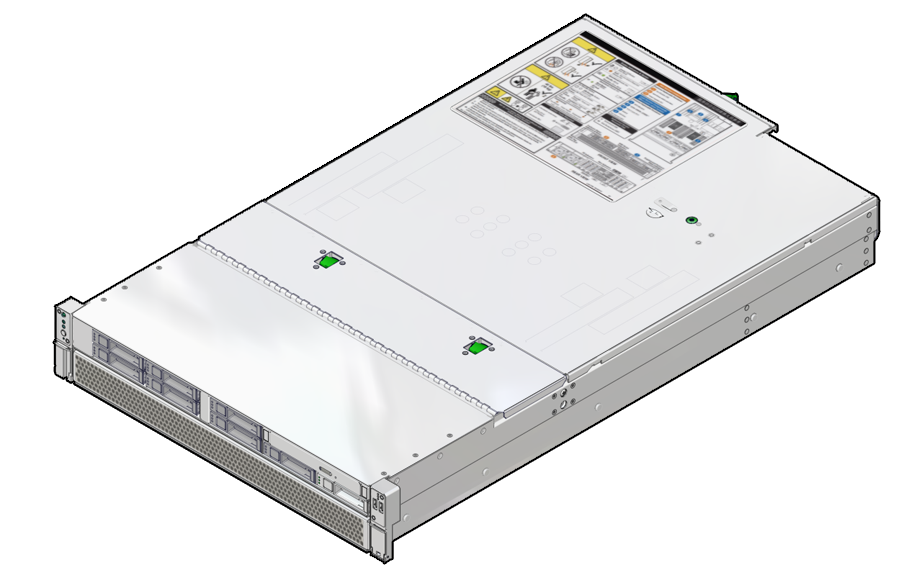

Chassis |
Rack-mountable server. |
CPU |
One processor installed on the motherboard
assembly. |
Memory |
Eight DDR4 DIMMs connect to the motherboard. An additional eight DIMMs can connect to two
memory risers (optional). A server with 16 64-GB DIMMs supports 1024
GB of system memory.
|
I/O expansion |
Six PCIe Gen3 slots. All slots support x8 PCIe cards. |
Storage devices |
For internal storage, the server provides:
Eight 2.5-inch drive bays, accessible through the front panel. A slot-loading DVD+/-RW SATA drive on the front of the server, above the right drive
bays.
|
USB ports |
|
Video port |
One high-density DB-15 video port (rear) |
Ethernet ports |
Four 10GbE 100/1000/10000 Mbps, RJ-45-based
ports on the rear panel. |
Power supplies |
Two hot-swappable (1+1) AC 1000W power supplies. |
Cooling fans |
Four hot-swappable, redundant fan modules at chassis front (top-loading).
Redundant fans in each power supply. |
SP |
Oracle Integrated Lights Out Manager
(Oracle ILOM). |
|
