To Connect the Optical Cables


Note - The HBA does not allow normal data transmission on an optical link unless it is connected to another similar or compatible Fibre Channel (FC) product (that is, multimode to multimode).

Use multimode fiber-optic cable, which is intended for short-wave lasers, that adheres to the specifications in the following table.

Fiber-Optic Cable
Maximum Length
Minimum Length
Connector
62.5/125 mm (multimode)
150 meters at 2.125 Gbit/second
70 meters at 4.25 Gbit/second
21 meters at 8.5 Gbit/second
0.5 meters
LC
50/125 mm (multimode)
500 meters at 2.125 Gbit/second
380 meters at 4.25 Gbit/second
150 meters at 8.5 Gbit/second
0.5 meters
LC
  1. Connect the fiber-optic cable to an LC connector on the HBA.

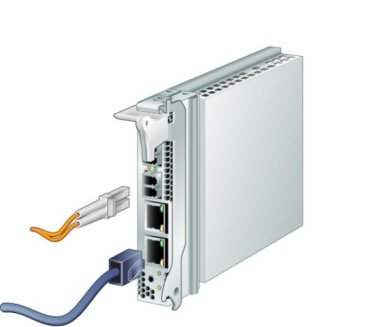

    image:Image showing how to connect cables to the HBA
    Cable
    Description
    Orange
    Fiber-optic (FC) cable
    Blue
    Ethernet (GbE) cable
  2. Connect the other end of the cable to the FC device.

    After the optical cable is connected to the HBA, you are ready to connect the Ethernet cable(s).
