Oracle ILOM Properties That Affect POST Behavior

Parameter	Values	Description
`/HOST` `keyswitch_state`	`normal`	The server module can power on and run POST (based on the other parameter settings). This parameter overrides all other commands.
	`diag`	The server module runs POST based on predetermined settings.
	`standby`	The server module cannot power on.
	`locked`	The server module can power on and run POST, but no flash updates can be made.
`/HOST/diag` `mode`	`off`	POST does not run.
	`normal`	POST runs according to `diag` `level` value.
`/HOST/diag` `level`	`max`	If `diag` `mode`=`normal`, runs all the minimum tests plus extensive processor and memory tests.
	`min`	If `diag` `mode`=`normal`, runs minimum set of tests.
`/HOST/diag` `trigger`	`none`	Does not run POST on reset.
	`hw-change`	(Default) Runs POST following a FRU replacement or an power cycle.
	`hw_change_level`	`max` (default) — Runs the maximum set of tests. `min` — Runs the minimum set of tests.
	`hw_change_verbosity`	`min` (default) — Displays the minimum level of output. max — Displays information for each step. normal — Displays a moderate amount of information, including component names and test results. debug — Displays extensive debugging information. none — Disables the output.
	`power-on-reset`	Runs POST on every power on.
	`power_on_level`	`max` (default) — Runs the maximum set of tests. `min` — Runs the minimum set of tests.
	`power_on_verbosity`	`min` (default) — Displays the minimum level of output. max — Displays information for each step. normal — Displays a moderate amount of information, including component names and test results. debug — Displays extensive debugging information. none — Disables the output.
	`error-reset`	(Default) Runs POST if fatal errors are detected.
	`error_reset_level`	`max` (default) — Runs the maximum set of tests. `min` — Runs a minimum set of tests.
	`error_reset_verbosity`	`min` (default) — Displays the minimum level of output. max — Displays information for each step. normal — Displays a moderate amount of information, including component names and test results. debug — Displays extensive debugging information. none — Disables the output.
	`all-resets`	Runs POST after any reset.
`/HOST/diag` `verbosity`	`normal`	Displays all test and informational messages in POST output.
	`min`	Displays functional tests with a banner and pinwheel in POST output.
	`max`	Displays all test, informational, and some debugging messages in POST output.
	`debug`	Displays extensive debugging information.
	`none`	Does not display POST output.

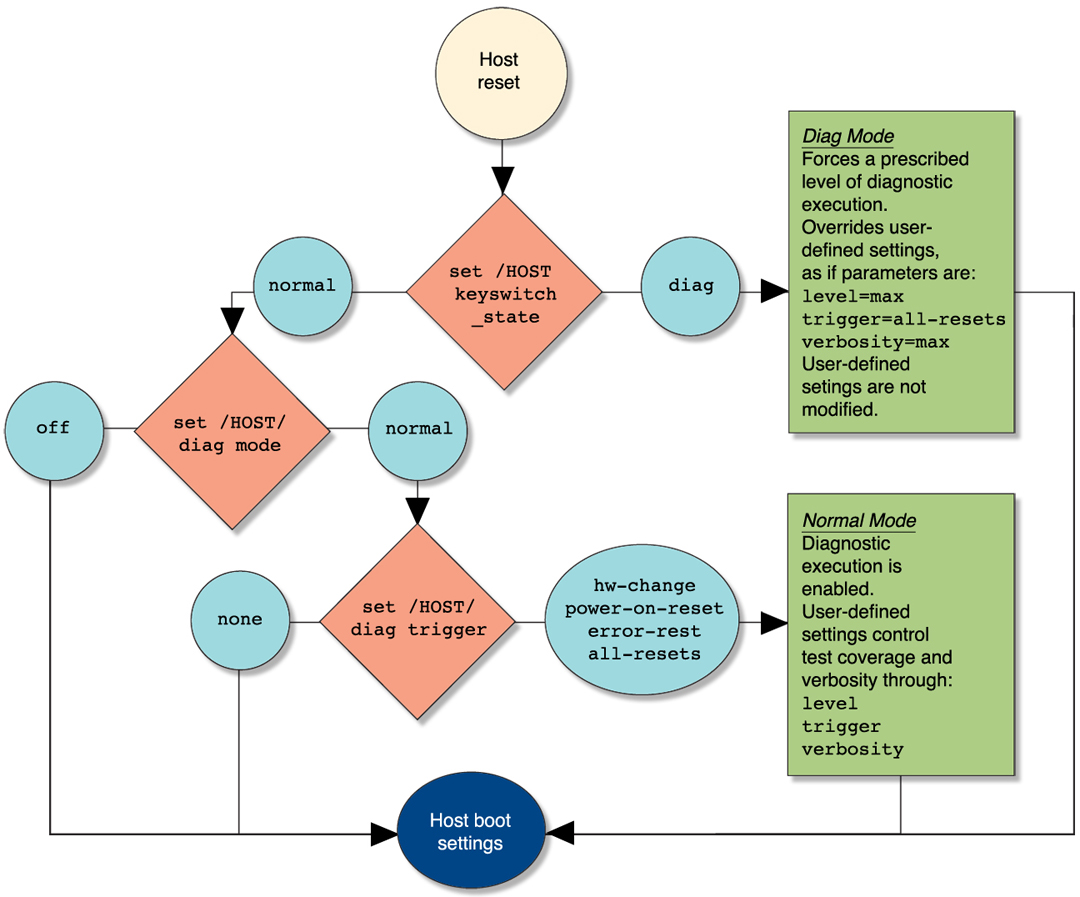

This flowchart illustrates the same set of Oracle ILOM set command variables.

image:Flow chart showing the Oracle ILOM properties used to manage POST operations
