4.1 External Status LEDs

Front and Back Panel LEDs lists and describes the external LEDs. The front and back panels are shown in Sun Storage J4500 Array Front and Back Panel LEDs.

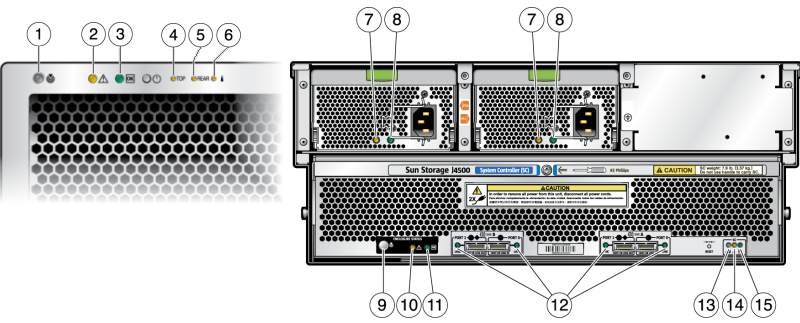

Figure 4-1 Sun Storage J4500 Array Front and Back Panel LEDs

image:This graphic shows the front and back panel indicators.

Table 4-1 Front and Back Panel LEDs

Figure Callout
Name
Color
Function
1 & 9
Enclosure locate button/LED
White
Operators can turn this LED on remotely to help locate the server in a crowded server room. Press to turn on or off.

Pressing the Locate LED/Switch for five seconds turns all indicators on for 15 seconds.

2 & 10
System fault
Amber
Alert/Service action is required.
3 & 11
System power
Green
On – Power is on. Blinking – Standby power is on but main power is off. Off – Power is off.
4
Top fault
Amber
On – Hard disk or fan fault (service is required or should be scheduled).
5
Rear fault
Amber
On – Power supply or system controller fault (service is required).
6
Over temperature
Amber
System over temperature.
7
PS fault
Amber
Service action required.
8
PS OK
Green
On – AC and DC OK. Slow blink – AC OK.
12
SAS link
Green
Each SAS port has a SAS Link Activity LED:

On – 1 to 4 links are ready. Blinking – Read/Write port activity. Off – Link is lost.

13
SC ready to remove
Blue
System Controller (SC) service action allowed.
14
SC fault
Amber
Service action required.
15
SC OK
Green
Operational. No action required.
