Identify the location in the rack where you want to place the server. The server requires one rack unit (1U).

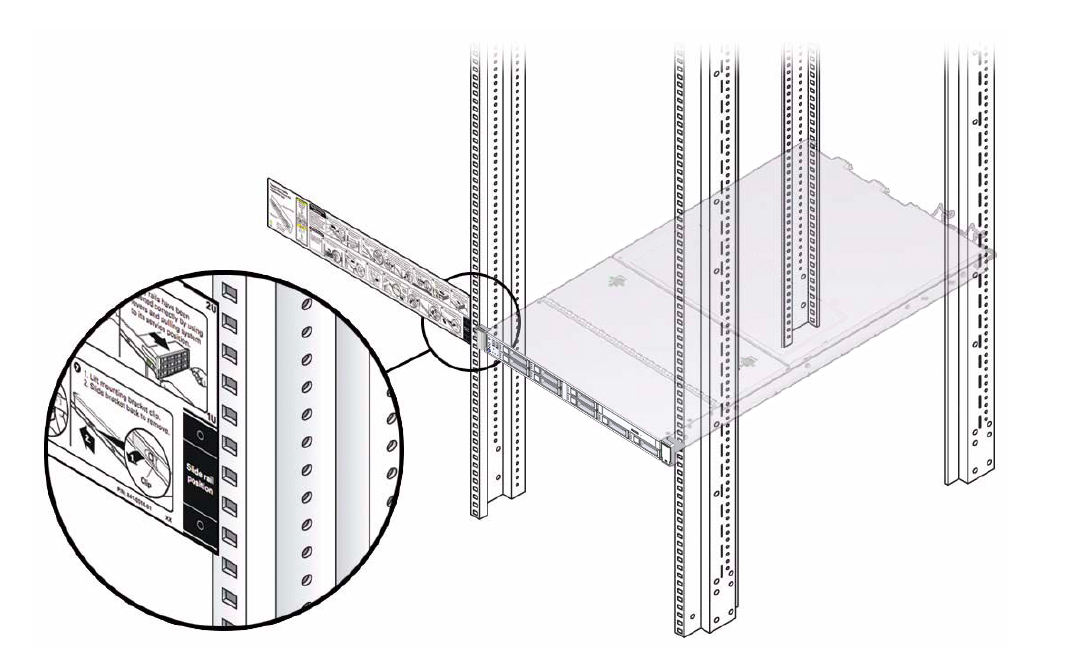

Use the rackmount installation card to identify the correct mounting holes for the slide-rails.
See Rack Requirements.
The bottom edge of the card corresponds to the bottom edge of the server. Measure up from the bottom of the installation card.
