Exterior Features, Controls, and Indicators

This section describes the features and the controls and indicators on the front and rear panels of the J4500 array.

Front Panel

Sun Storage J4500 Array Front Panel Features shows the front panel. Sun Storage J4500 Array Front Panel Controls and Indicators shows a close up of the controls and indicators. Front Panel Controls and Indicators lists and describes the front panel controls and indicators.

Figure 1-2 Sun Storage J4500 Array Front Panel Features

image:This graphic shows the front panel of the Sun Storage J4500 Array.

Figure Legend

1 USB ports—Not used

2 Serial numbers on ledge

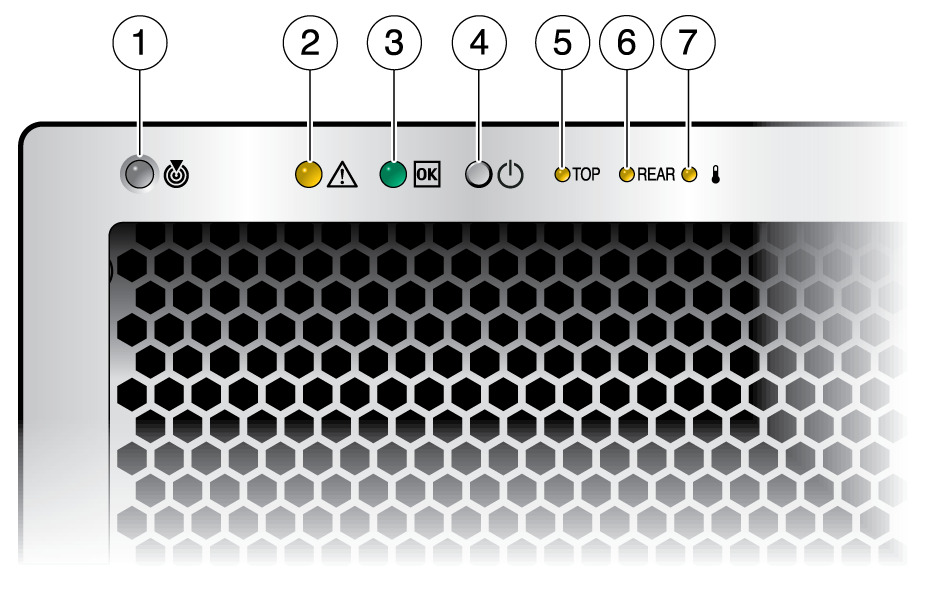

Figure 1-3 Sun Storage J4500 Array Front Panel Controls and Indicators

image:This graphic shows the front panel controls for the Sun Storage J4500 Array.

Table 1-2 Front Panel Controls and Indicators

#
Name
Description
1
Locate button/LED
Using array management software, operators can turn this LED on remotely to help them to locate the array enclosure in a crowded server room. Press to turn off.
2
System fault
On – service action is required
3
Power LED
On – Power is on Blinking – Standby power is on but main power is off Off – Power is off
4
Enclosure power button
5
Top fault LED
On – Hard disk or fan fault
6
Rear fault LED
On – Power supply, or system controller fault (service is required)
7
Over temperature LED
On – The array enclosure has exceeded the operating temperature

Back Panel

Sun Storage J4500 Array Back Panel SAS Ports shows the features of the back panel. Rear Panel Features  lists and describes each feature.

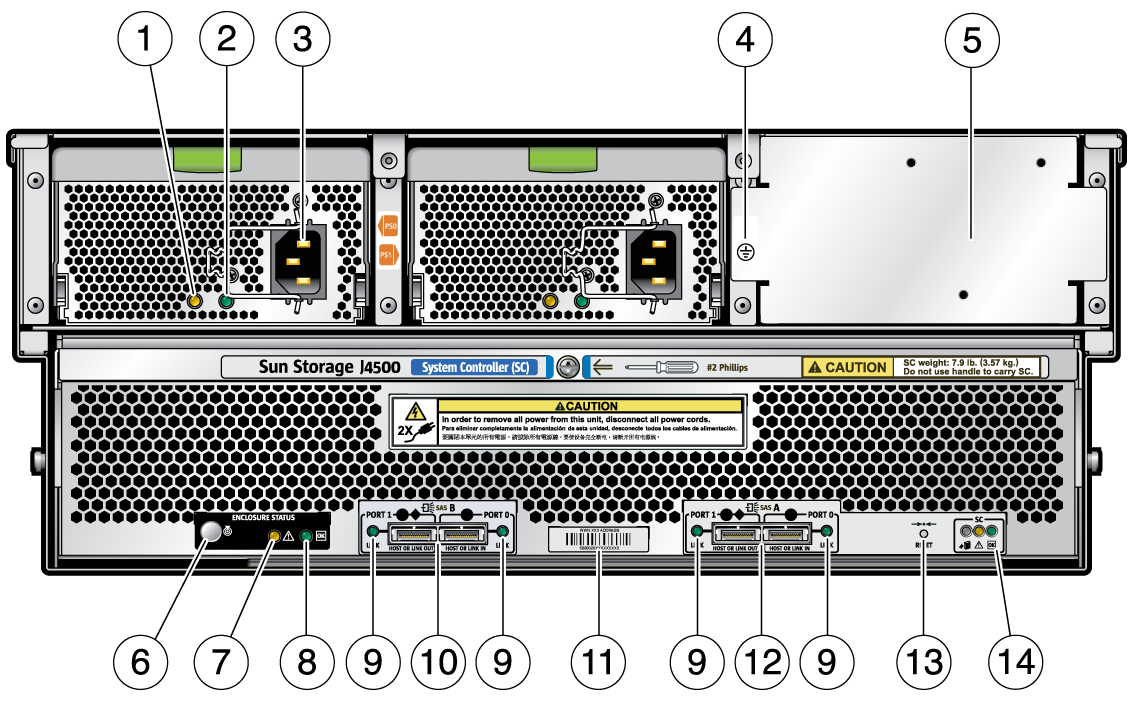

Figure 1-4 Sun Storage J4500 Array Back Panel

image:This graphic shows the back panel components of the Sun Storage J4500 Array.

Table 1-3 Rear Panel Features

#
Name
Description
1
Power supply fault LED (amber)
On – Service action is required
2
Power supply LED (green)
On – Power is on (AC/DC are OK) Blinking – Standby power is on (AC is OK) Off – Power is off
3
AC power connector
Each power supply has its own AC connector with a clip to secure its power cable.
4
Chassis ground
Connect grounding straps here.
5
Filler panel
This filler panel seals an access area in the chassis used by service personnel.
6
Locate button/LED (white)
Using array management software, operators can turn this LED on remotely to help them to locate the enclosure in a crowded server room. Press to turn off.
7
System fault LED (amber)
On – Service action is required
8
System power LED (green)
On – Power is on Blinking – Standby power is on but main power is off Off – Power is off
9
SAS link activity LED (green)
Each SAS port has a SAS Link Activity LED:

On – 1 to 4 links are ready Blinking – Read/Write port activity Off – Link is lost

10
Two mini-SAS x4 connector ports (SAS B)
Secondary (redundant) SAS ports 0 and 1, each with SAS Link activity LEDs. Port 0 uses subtractive or direct routing and connects to a host or upstream devices. Port 1 is universal, using table and direct routing, and connects to a host or downstream devices.
11
SAS ID (or WWN)
The label placed here lists the unique SAS ID address (also known as World-Wide Name) of the enclosure.
12
Two mini-SAS x4 connector ports (SAS A)
Primary SAS ports 0 and 1, each with SAS Link activity LEDs. Port 0 uses subtractive or direct routing and connects to a host or upstream devices. Port 1 is universal, using table and direct routing, and connects to a host or downstream devices.
13
Enclosure reset button
Resets the array enclosure hardware without powering down the array. For more information, see Chapter 5, Troubleshooting.
14
System controller status LEDs
Blue – Ready to remove (service action allowed)

Amber – Fault (Service action required)

Green – OK (no action required)
