SPARC T5-8 Server Installation Guide

Install the CMA (Multi-Piece CMA)

You will be installing the multi-piece CMA. For installation of the single-unit CMA comb, see Install the CMA Comb.

The CMA is attached to the rear posts of the rack.

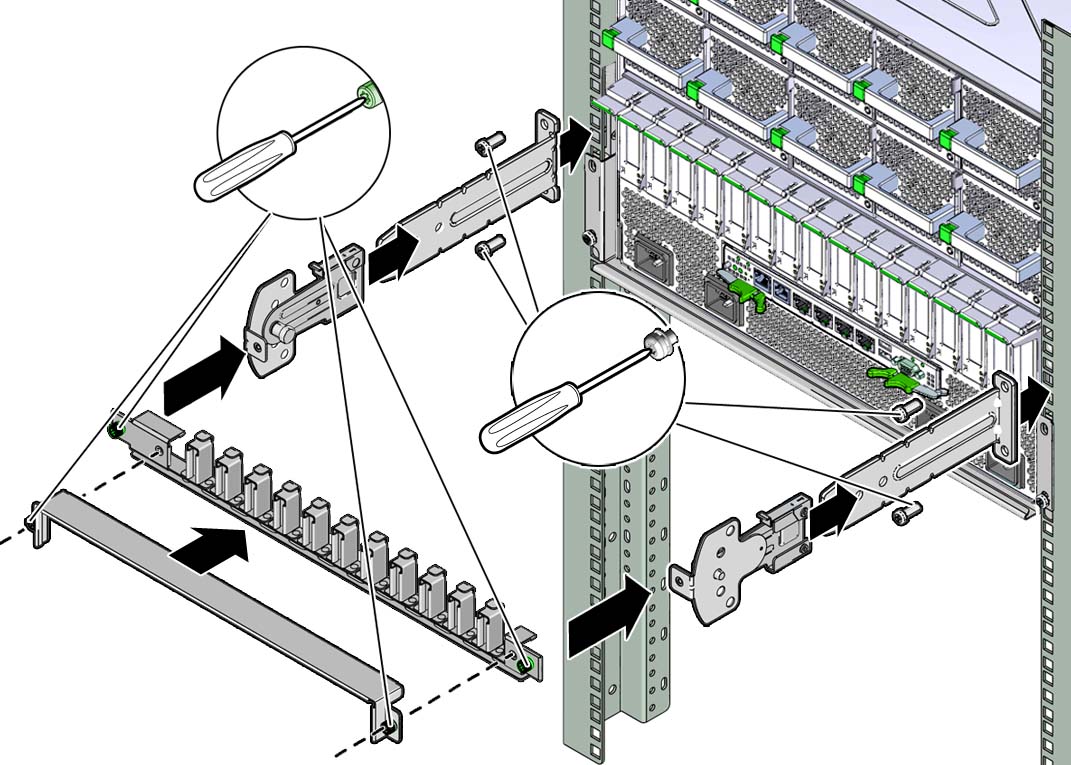

1. Install the L brackets at the rear.

   The brackets are marked "Left" and "Right" as viewed from the back of the server.

   Repeat for left and right sides:

   1. Identify the left and right side brackets.
   2. Remove the two middle screws from the rackmount adapter.
   3. Place the bracket over the center two mounting holes.
   4. Secure each mounting bracket with two No. 2 Phillips screws.

2. Slide the left and right swivel clips into the left and right L brackets.
3. Secure the CMA with the two captive screws.

Related Information

• CMA Kit (CMA Comb, Part Number 7069793)

• Determine Correct Rackmount Hardware
