Once the reference configuration files have been deleted, a new pipeline configuration project can be created.

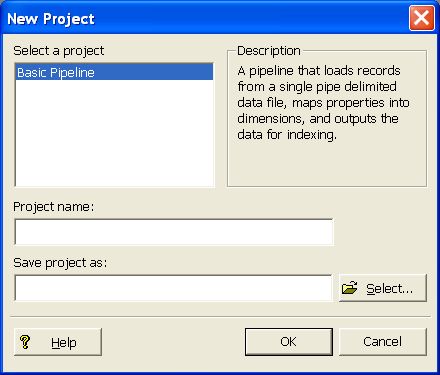

When creating a new project using the Oracle Commerce Developer Studio, you are prompted with the following dialog box:
To create a new project:
In order for a new pipeline to be run properly within the deployment template, the following must be properly specified:
The Project Name field must be the same as the data prefix specified for the "
app
" element in<app dir>/config/script/AppConfig.xml
. By default, this data prefix will have been set to the name of the application that was specified when runningdeploy.bat
ordeploy.sh
.Recall that the
[appname]
specified was also used to create the base<app dir>
directory. For example, if "myapp
" was supplied as the[appname]
, and "c:\Endeca\apps
" was supplied as the Deployment Directory, then<app dir>
would bec:\Endeca\apps\myapp
. In this example, the Project Name should also be specified as "myapp
".
The Save Project As field should be
<app dir>\config\pipeline\[appname].esp

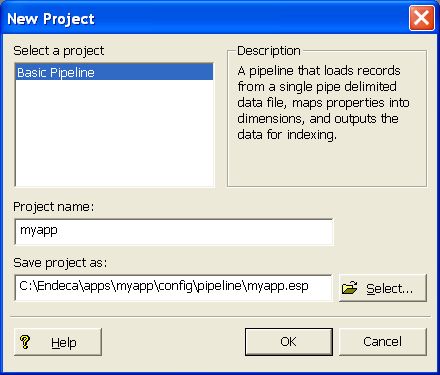

In the example above, the Save Project As field would be
c:\Endeca\apps\myapp\config\pipeline\myapp.esp
.
After clicking the "OK" button, a number of
files are created in the
<app dir>/config/pipeline/
directory. The primary
files to be concerned with are listed below:
File name |
Description |
---|---|
|
This is the main pipeline file that the deployment template will reference when running forge. |
|
This is the Developer Studio project file that will be used
whenever reopening the project. Although this file does not actually require
the
|
|
These are the various configuration files
that will be used later by the indexer and MDEX Engine processes. It is
important that they have the same prefix as the deployment template
|
|
This is the dimension file referenced by the default Dimension Adapter. |
