Install a Line Card


Caution

Caution - Installing the line card is a methodical task and cannot be rushed. To prevent damage to the line card or the midplane XBOW connectors, pay close attention to the procedure and work slowly.


  1. Identify the prerequisite and subsequent tasks you must perform in conjunction with this procedure, to achieve a goal.

    See the table in Servicing the Line Cards.

  2. If a line card filler occupies the slot where a line card is to be installed, follow these steps.

    Otherwise, continue to Step 3.

    1. Grasp the handles at each end of the filler and pull the filler from the chassis.
    2. Set the filler aside.
  3. Inspect the replacement line card.

    See Inspecting the Line Cards.

  4. Inspect the slot where the line card will install for debris and loose gasketing.

    Electrical

    Caution - You must remove any debris or gasketing material from the line card slot prior to installing the line card. Failure to clean the slot might result in damage to the line card or midplane XBOW connectors upon installation of the line card.


  5. Lift the line card from the work surface and orient it horizontally, with the link LEDs across the bottom.
  6. Insert the line card into the chassis at the vacant slot.

    Ensure that the line card is square to the chassis and not skewed.

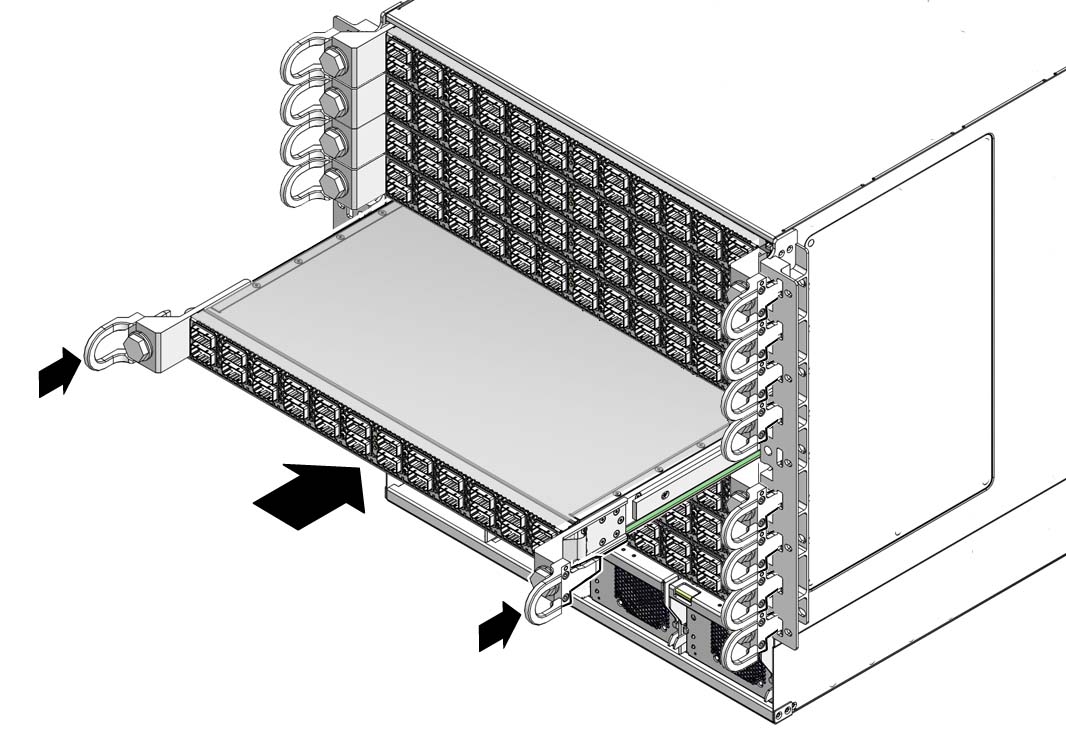

    Illustration shows a line card being installed.

    Note - Once the line card is about halfway into the slot, it is no longer necessary to bear the weight of the line card.


  7. Continue to slide the line card in, maintaining a squared orientation.

    When you feel resistance, stop.

  8. While pressing the line card in with one hand, rotate the retainer bolts clockwise by hand so that they engage.

    When you feel resistance in the retainer bolts, stop.

  9. Using a 20 mm socket and ratchet, turn the left retainer bolt 1/4 turn clockwise.

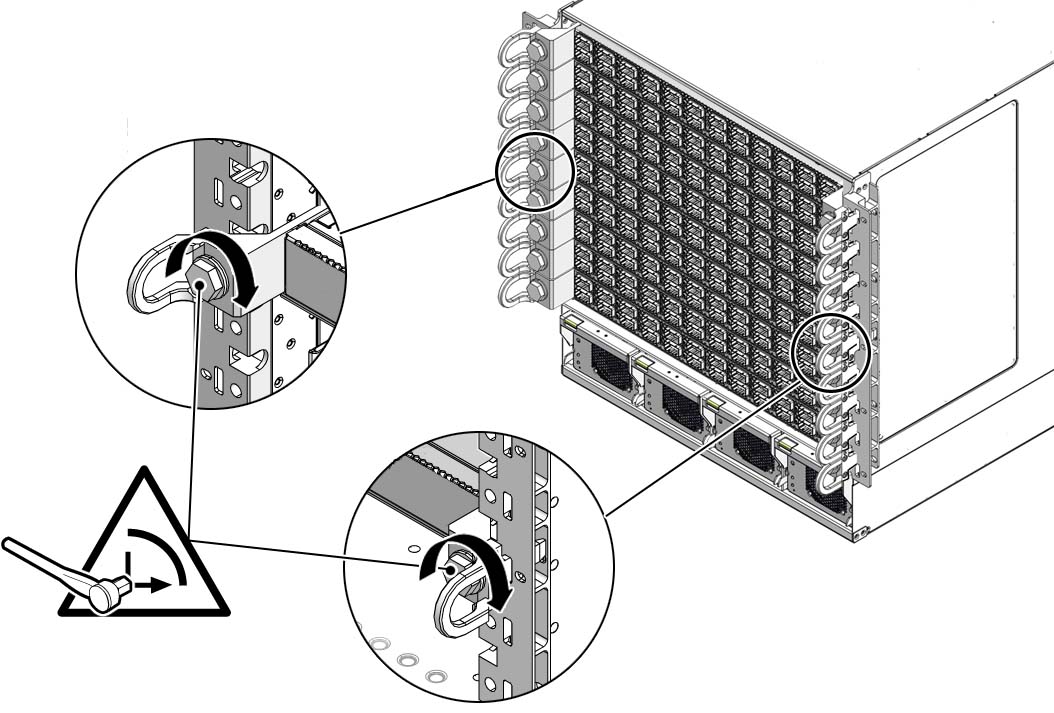

    Illustration shows a line card being secured.
  10. Turn the right retainer bolt 1/4 turn clockwise.

    Caution

    Caution - Do not turn the retainer bolts more than 1/4 revolution each time. Turning more than 1/4 turn damages the line card and midplane XBOW connectors.


  11. Repeat Step 9 and Step 10 about 12 times until you feel resistance to turning and the line card is flush to the front of the chassis.
  12. Give each retainer bolt a torque of 2.0 ft-lb (0.27 kg-m).
  13. Turn the left retainer bolt 1/4 turn counter-clockwise.
  14. Turn the right retainer bolt 1/4 turn counter-clockwise.
  15. Repeat Step 13 and Step 14 twice to relieve board deflection.
  16. Verify that the line card is properly seated in the slot.
  17. Lift the cable shelf into a horizontal orientation, with the long rolled edge towards you.
  18. Locate where you want to install the cable shelf.
  19. Move the cable shelf between and just above the branches of the cable tree for the slot where you want to install the shelf.
  20. Continue to move the shelf in, then lower the shelf into the holes of the tabs.
    Illustration shows a cable shelf being installed.
  21. Power on the line card.

    See Power On a Line Card.
