Install a Line Card Filler

  1. Identify the prerequisite and subsequent tasks you must perform in conjunction with this procedure, to achieve a goal.

    See the table in Servicing the Line Cards.

  2. Determine where the line card filler will install.
  3. Grasp the handles at each end of the line card filler and lift the filler to the vacant slot.
  4. Slide the filler into the chassis until it stops.

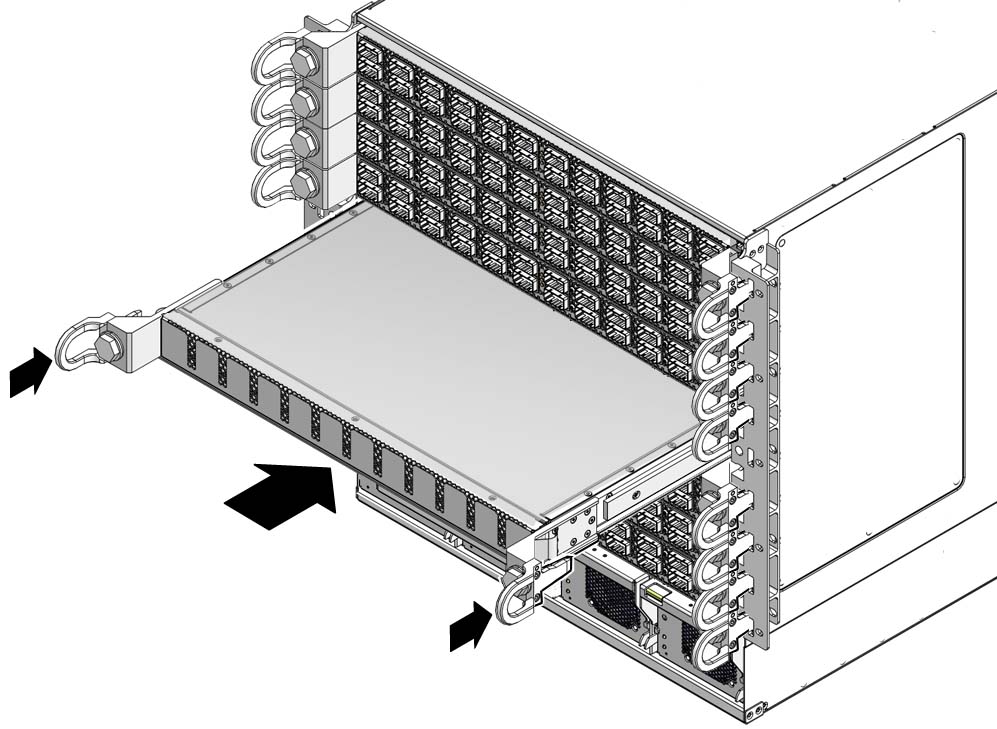

    Illustration shows a line card filler being installed.
  5. While pressing the filler in with one hand, rotate the retainer bolts clockwise by hand so that they engage.

    When you feel resistance in the retainer bolts, stop.

Related Information
