Install the Internal HBA Card in PCIe Slot 4


Note -  Only authorized Oracle Services personnel should remove and replace the internal HBA card.
  1. Unpack the replacement host bus adapter (HBA) card and SAS cables, and retrieve the PCIe riser for slot 3.

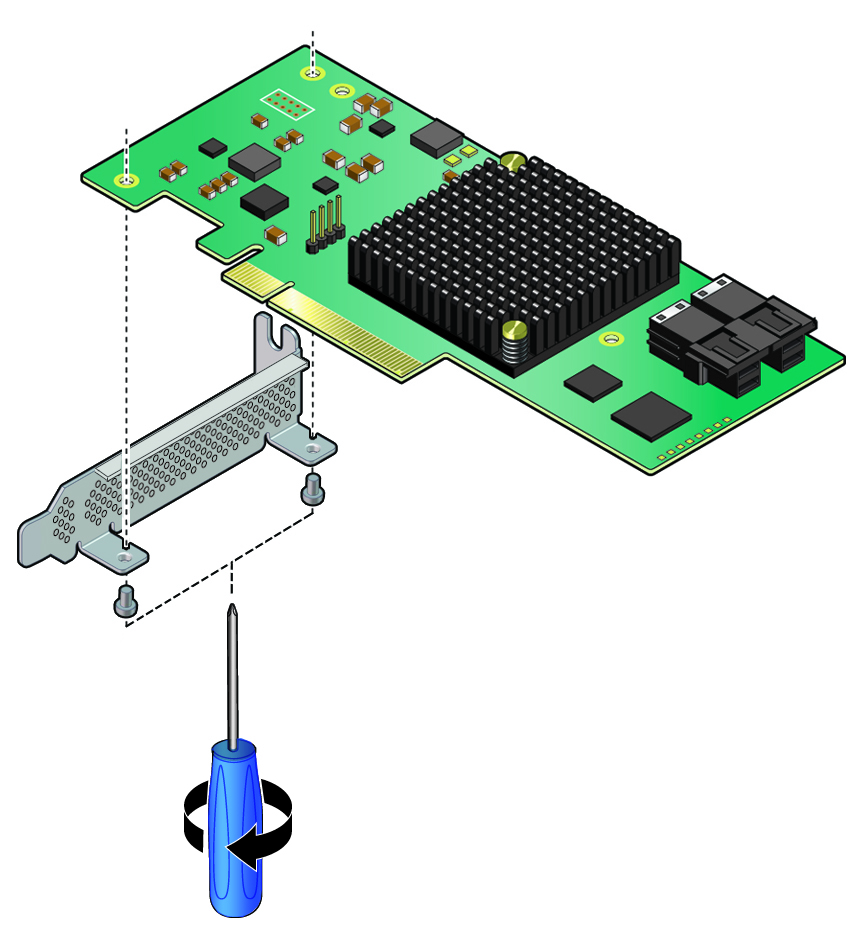

  2. Using a No. 2 Philips screwdriver, remove the standard HBA bracket that shipped with the replacement HBA card.
    image:Figure showing how to remove the standard bracket from the                                 replacement HBA card.

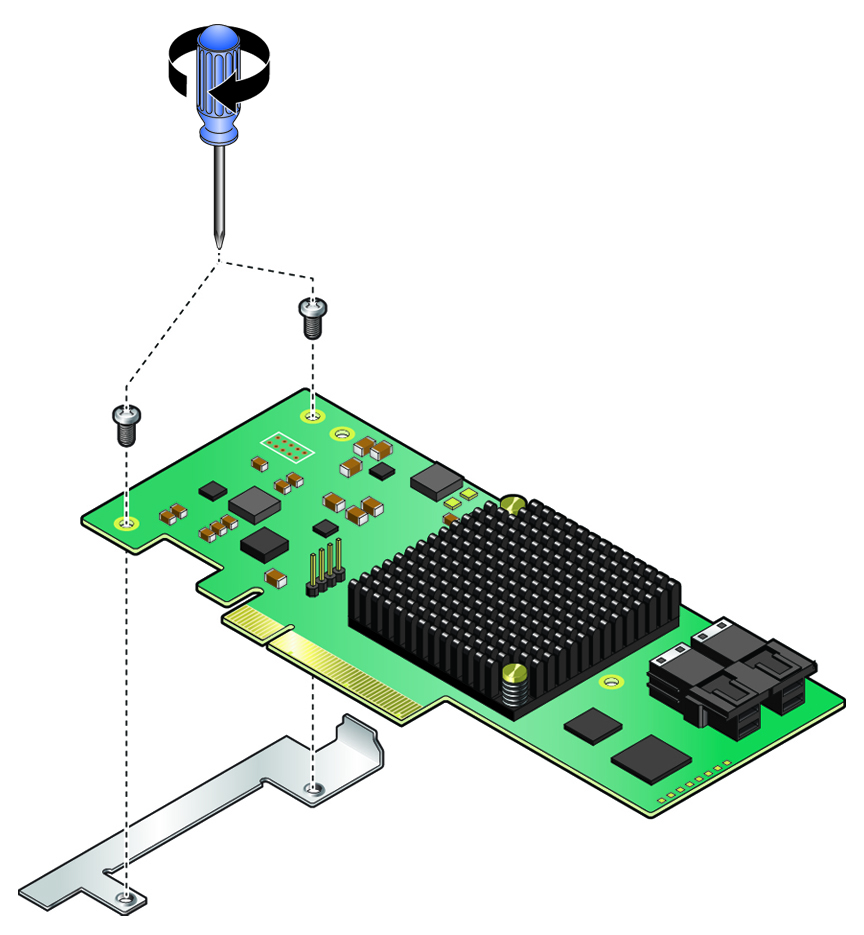

  3. Install the special fitted bracket that was removed in Remove the Internal HBA Card From PCIe Slot 4.
    image:Figure showing how to install the special fitted bracket on to                                 the replacement HBA card.

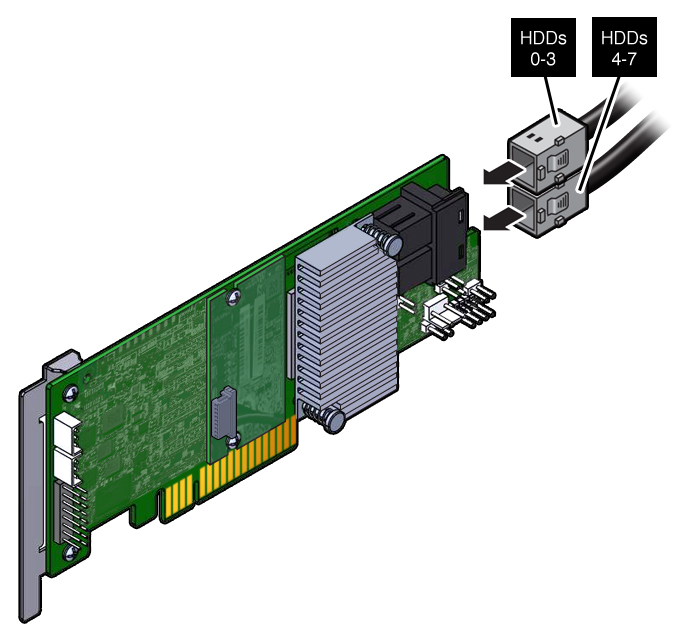

  4. Connect the SAS cables to the internal HBA card.
    image:Figure showing how to install the SAS cables to the internal                                 HBA card in slot 4.

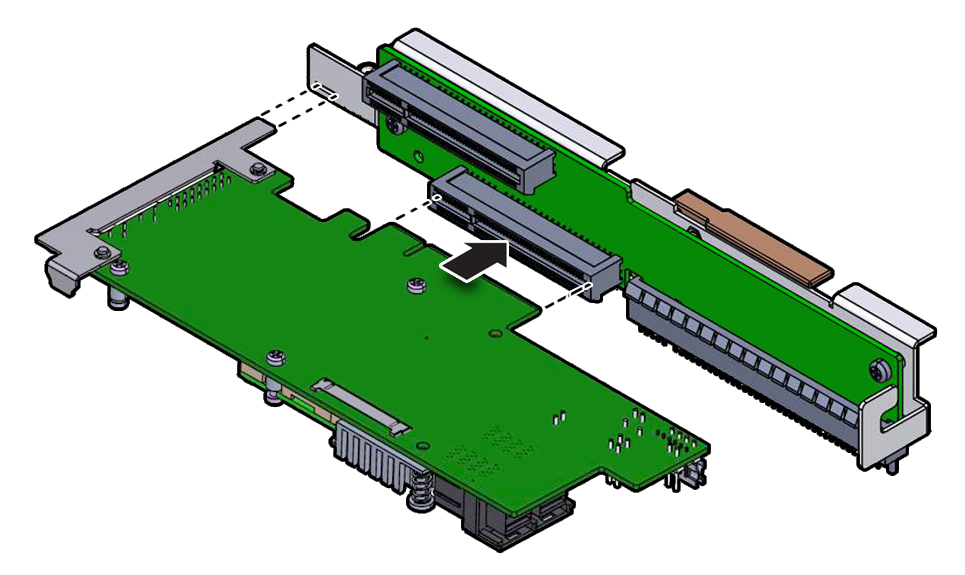

  5. Insert the rear bracket on the internal HBA card into the rear connector on the PCIe riser.
    image:Figure showing how to install the internal HBA card in slot 4.
  6. Insert the internal HBA card connector into the bottom connector on the riser for PCIe slot 3 and 4.
  7. Install the PCIe riser.

    For instructions, see Install the PCIe Riser Into PCIe Slots 3 and 4.

  8. Install fan module FM0.

    See Install a Fan Module.

  9. Return the controller to operation.
    1. Close the controller fan door.
    2. Return the controller to the normal rack position.

      See Returning the Controller to Operation.

    3. Reconnect the data cables to the controller and reconnect the power cords to the controller power supplies.

      See Reconnect Data Cables and Power Cords.

    4. Power on the controller.

      See Power On the Controller.

      Verify that the Power/OK status indicator is steady on.
