Remove a PCIe Riser From PCIe Slot 1 or 2

  1. Prepare the controller for service.
    1. Power off the controller and disconnect the power cords from the power supplies.

      See Powering Off the Controller.

    2. Extend the controller to the maintenance position.

      See Extend the Controller to the Maintenance Position.

    3. Attach an antistatic wrist strap to your wrist and then to a metal area on the chassis.

      See Take Antistatic Measures.

    4. Remove the controller top cover.

      See Remove the Controller Top Cover.

  2. Select the PCIe riser that you want to remove.

    See PCIe Slot Characteristics.

  3. If a PCIe card is installed in the riser, disconnect any external cables from the card.

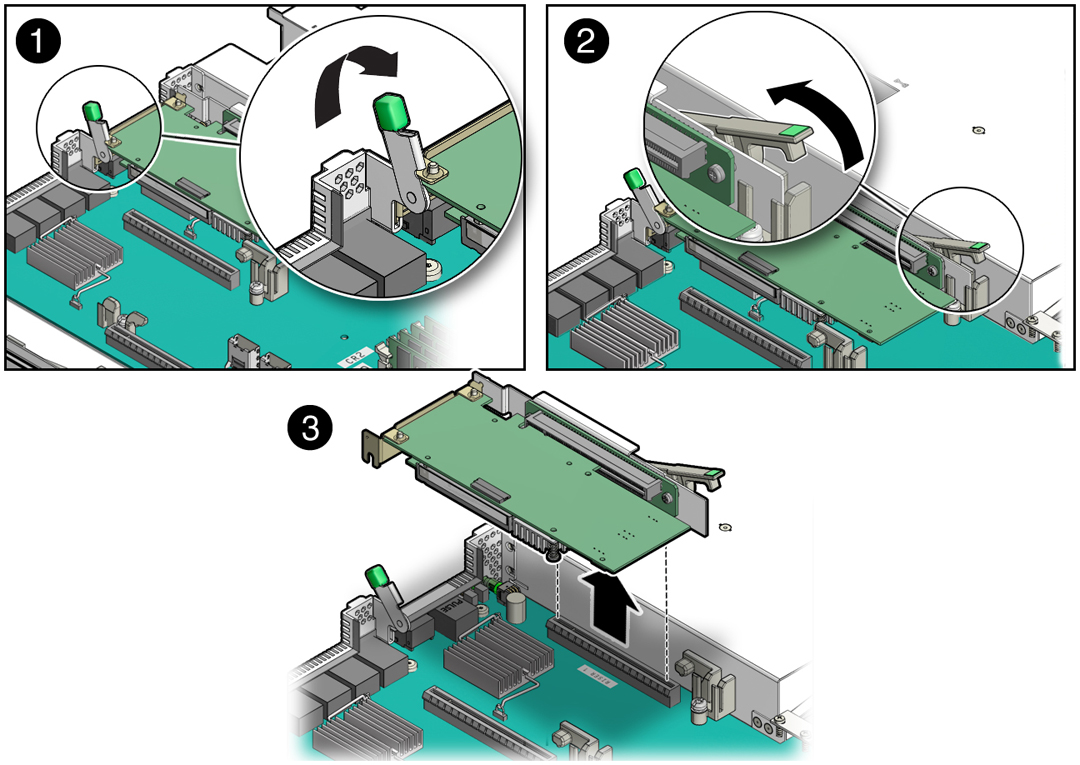

  4. Lift the green-tabbed latch on the rear of the controller chassis next to the applicable PCIe slot to release the rear bracket on the PCIe card [1].
    image:Figure showing how to remove a PCIe riser from slots 1 and                                 2.

    Note -  If the riser does not have a PCIe card installed, then lift the latch to release the PCIe slot filler panel.
  5. Lift the green-tabbed riser release lever on the PCIe riser with one hand and use your other hand to remove the riser from the motherboard connector [2, 3].
  6. If there is a PCIe card installed in the riser, place the riser on an antistatic mat and note the slot in which the PCIe riser was originally installed; otherwise, set the PCIe riser aside.
