Install a Processor


Caution

Caution  -  Processors should be installed only by authorized Oracle Services personnel.



Caution

Caution  -  Processor removal and replacement must be done using the correct removal and replacement tool; otherwise, damage might result to the processor or the processor socket. For information on how to select the correct removal and replacement tool, see Selecting the Correct Processor Removal and Replacement Tool.



Caution

Caution  -  Be careful not to touch the processor socket pins. The processor socket pins are very fragile. A light touch can bend the processor socket pins and damage the board beyond repair. Always use the processor removal and replacement tool to remove and replace the processor.


  1. Attach an antistatic wrist strap to your wrist, and then to a metal area on the chassis.

    See Take Antistatic Measures.

  2. Unpack the replacement processor and place it on an antistatic mat.
  3. Ensure that the replacement processor is identical to the failed processor that was removed.
  4. Ensure that the two processor ILM assembly levers and the ILM assembly load plate are in the fully open position.

    For instructions for opening the processor ILM assembly levers and the load plate, see Remove a Processor.

  5. To install the replacement processor into the processor removal and replacement tool, acquire the tool and perform the following steps:

    Caution

    Caution  -  Before installing the processor, ensure that you are using the correct color-coded processor removal and replacement tool. For information on how to select the correct processor removal and replacement tool, see Selecting the Correct Processor Removal and Replacement Tool.

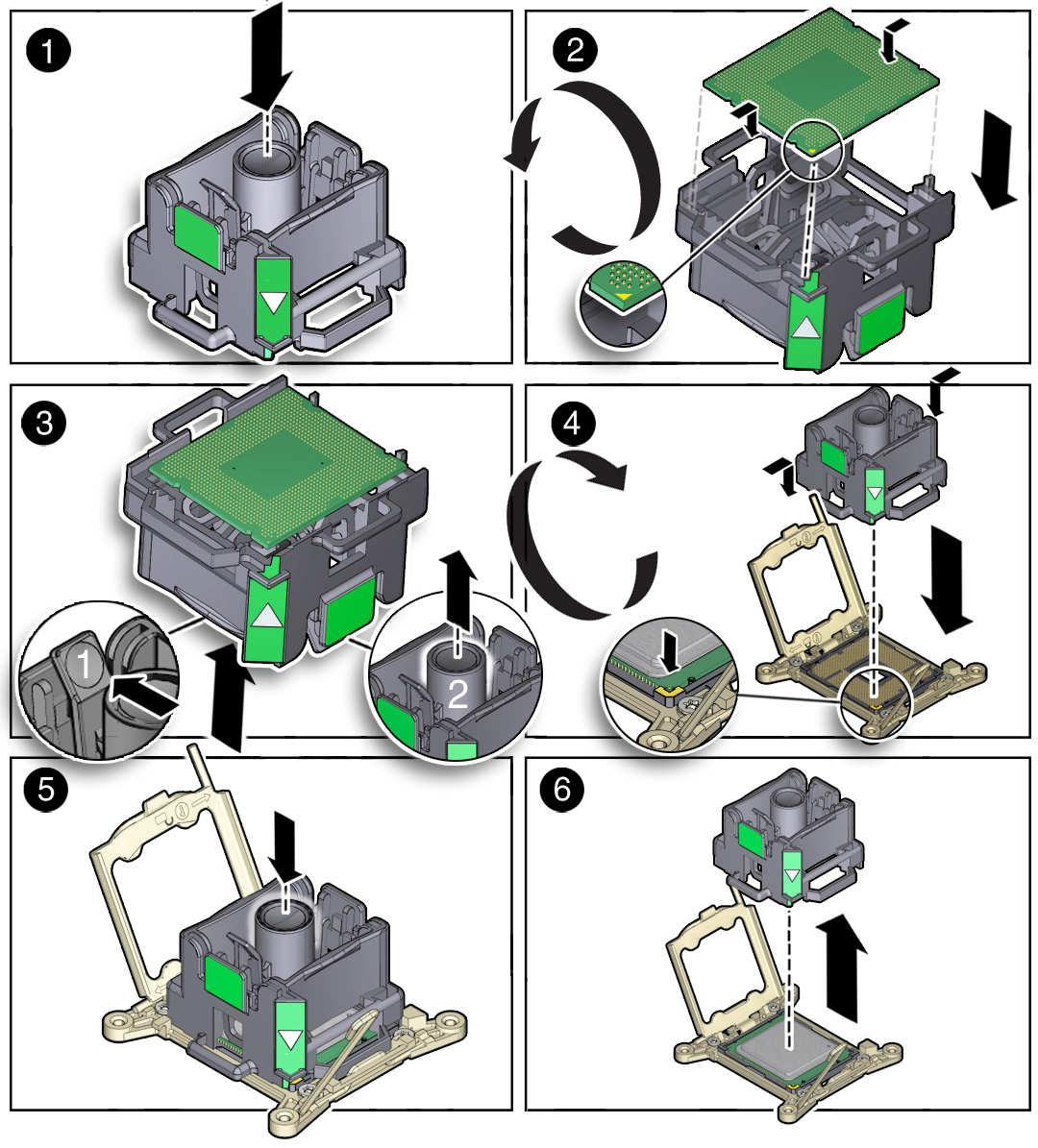

    1. Press the button in the center of the tool to the down position [1].
    2. Turn the tool upside down, grasp the processor by its front an back edges and position the processor (circuit side up) in the tool so that the triangle on the corner of the processor aligns with the triangle on the side of the processor removal and replacement tool [2].
    3. Lower the processor into the tool and press the tool release lever to release the center button and engage the processor [3].

      An audible click indicates that the processor is locked in place.

    4. Properly position the tool over the processor socket and lower it into place [4].

      To properly position the tool in the processor socket, rotate the tool until the green triangle on the side of the tool is facing the front of the controller and it is over the left side of the processor socket (when viewing the controller from the front) and lower the tool into the processor socket.

    5. Press the center button in the tool down to release the processor so that it is placed in the socket [5].
    6. Remove the processor removal and replacement tool [6].

      Caution

      Caution  -  The following figure shows the green color-coded processor removal and replacement tool. If you are installing a 12-core processor, you must use the pink color-coded processor removal and replacement tool; otherwise, damage might result to the processor or the processor socket. For information on how to select the correct processor removal and replacement tool, see Selecting the Correct Processor Removal and Replacement Tool.



      image:This figure shows how to use the processor                                         remove/replacement tool to install the processor.
  6. Visually check the alignment of the processor in the socket.

    When properly aligned, the processor sits flat in the processor socket.


    Caution

    Caution  -  Do not press down on the processor. Irreparable damage to the processor or motherboard might occur from excessive downward pressure. Do not forcibly seat the processor into the socket. Excessive downward pressure might damage the socket pins.

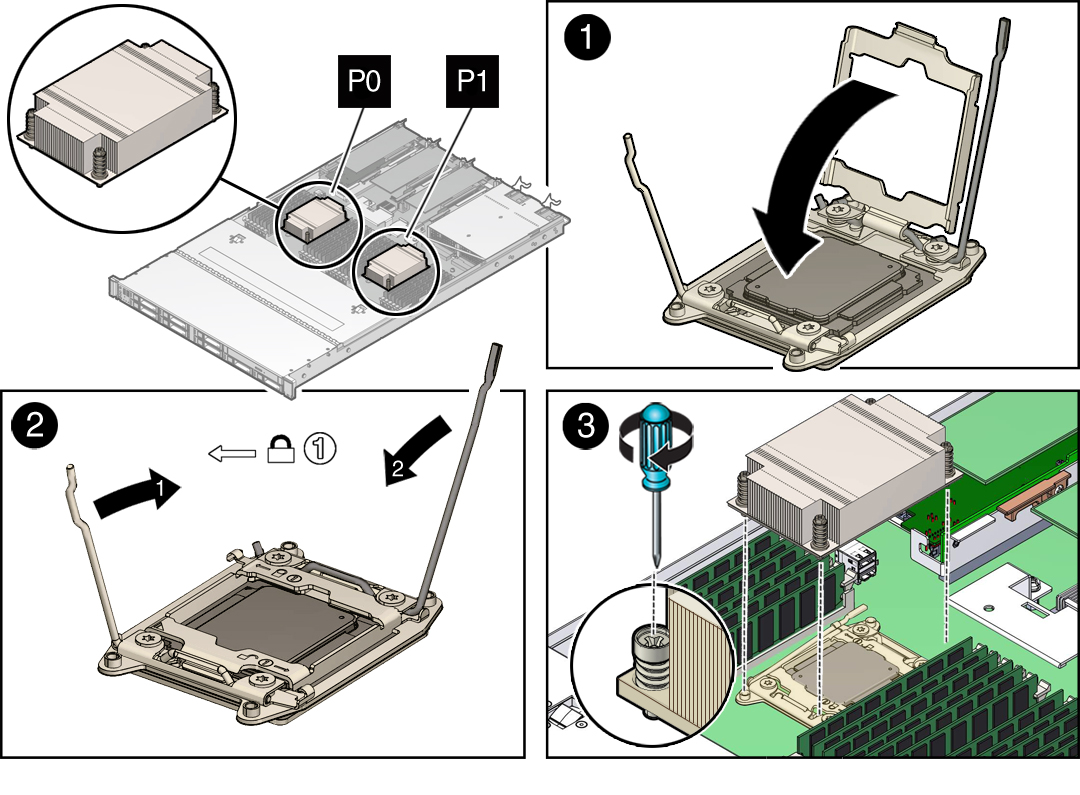

  7. Swing the processor ILM assembly load plate into the closed position [1].

    Ensure that the load plate sits flat around the periphery of the processor.


    image:Figure showing how to close the processor ILM assembly load                                 plate and install the heatsink.
  8. Engage the socket release lever on the left side of the socket (viewing the controller from the front) by rotating it downward and slipping it under the catch [2].
  9. Engage the socket release lever on the right side of the socket (viewing the controller from the front) by rotating it downward and slipping it under the catch [2].
  10. Use the syringe (supplied with the new or replacement processor) to apply approximately 0.1 ml of thermal grease to the center of the top of the processor.

    To measure 0.1 ml of thermal grease, use the graduated scale on the thermal grease syringe.


    Note -  Do not distribute the grease; the pressure of the heatsink will do so for you when you install the heatsink.
  11. Inspect the heatsink for dust and lint.

    Clean the heatsink if necessary.

  12. Orient the heatsink so that the screws line up with the mounting studs [3].

    Note -  The processor heatsink is not symmetrical.
  13. Carefully position the heatsink on the processor, aligning it with the mounting posts to reduce movement after it makes initial contact with the layer of thermal grease [3].

    Caution

    Caution  -  Avoid moving the heatsink after it has contacted the top of the processor. Too much movement could disturb the layer of thermal grease, causing voids, and leading to ineffective heat dissipation and component damage.


  14. Tighten the Phillips screws with a No. 2 Phillips screwdriver alternately one-half turn until fully seated.
  15. Install the air baffle.
  16. Return the controller to operation.
    1. Install the controller top cover.

      See Install the Controller Top Cover.

    2. Close the controller fan door.
    3. Return the controller to the normal rack position.

      See Returning the Controller to Operation.

    4. Reconnect the data cables and reconnect the power cords to the controller power supplies.

      See Reconnect Data Cables and Power Cords.

    5. Power on the controller.

      See Power On the Controller.

      Verify that the Power/OK status indicator is steady on.

  17. Use Oracle ILOM to clear controller processor faults.

    Refer to the Oracle Integrated Lights Out Manager (ILOM) 3.2 Documentation Library at http://www.oracle.com/goto/ilom/docs for more information about the following steps.

    1. To show controller faults, log in to the controller as root using the Oracle ILOM CLI, and type the following command to list all known faults on the system:

      -> show /SP/faultmgmt

      The controller lists all known faults, for example:

      -> show /SP/faultmgmt
      Targets:
          0 (/SYS/MB/P0)Properties:
      Commands:
          cd
          show


      Alternatively, to list all known faults in the controller, log in to the Oracle Solaris OS and issue the fmadm faulty command, or log in to the Oracle ILOM service processor from the Oracle ILOM Fault Management Shell and issue the fmadm faulty command. For more information about how to use the Oracle ILOM Fault Management Shell and supported commands, see the Oracle ILOM User's Guide for System Monitoring and Diagnostics Firmware Release 3.2.x in the Oracle Integrated Lights Out Manager (ILOM) 3.2 Documentation Library at: http://www.oracle.com/goto/ilom/docs.

    2. To clear the fault, type the following command:

      -> set /SYS/MB/P0 clear_fault_action=true

      For example:

      -> set /SYS/MB/P0 clear_fault_action=true
      Are you sure you want to clear /SYS/MB/P0 (y/n)? y
      Set ‘clear_fault_action’ to ‘true’


      Alternatively, to clear all known faults in the controller, log in to the Oracle Solaris OS and issue the fmadm repair command, or log in to the Oracle ILOM service processor from the Oracle ILOM Fault Management Shell and issue the fmadm repair command. For more information about how to use the Oracle ILOM Fault Management Shell and supported commands, see the Oracle ILOM User's Guide for System Monitoring and Diagnostics Firmware Release 3.2.x in the Oracle Integrated Lights Out Manager (ILOM) 3.2 Documentation Library at: http://www.oracle.com/goto/ilom/docs
