Reinstall the Controller Into the Rack

If you removed the controller chassis from the rack, perform these steps to reinstall it.


Caution

Caution  -  Deploy any rack anti-tilt mechanisms before installing the controller into the rack.



Caution

Caution  -  The controller weighs approximately 18.1 kg (40.0 lbs). Two people are required to carry the chassis and install it into the rack.


  1. Push the slide-rails into the slide-rail assemblies in the rack as far as possible.
  2. Raise the controller so that the rear ends of the mounting brackets are aligned with the slide-rail assemblies that are mounted in the rack.
  3. Insert the mounting brackets into the slide-rails, and then push the controller into the rack until the mounting brackets encounter the slide-rail stops, approximately 30 cm (12 inches).

    The controller is now in the extended maintenance position.

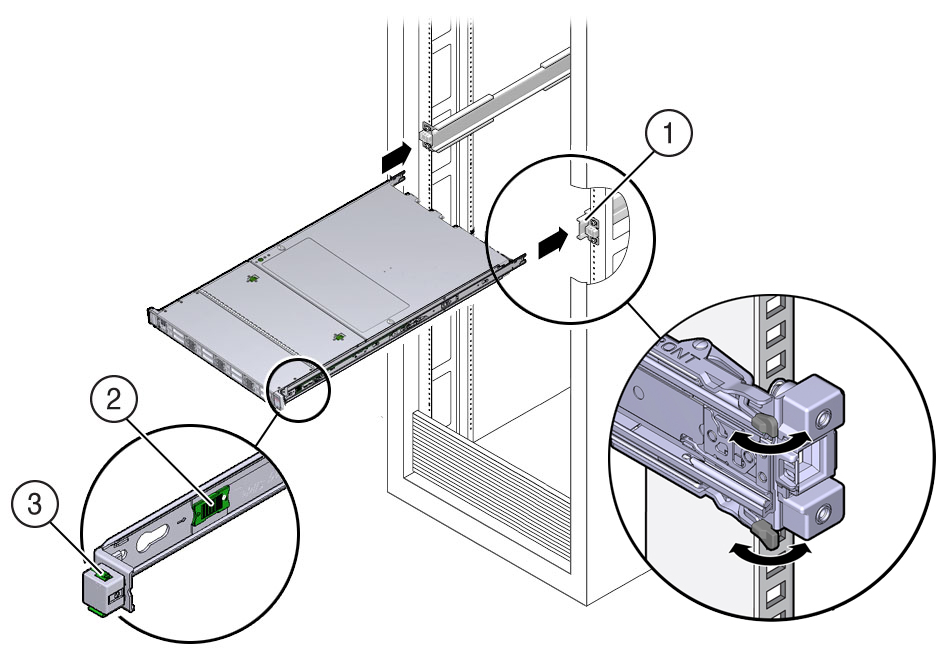

    image:Figure that shows how to insert the controller into the                             rack.
    Legend
    1
    Inserting mounting brackets into slide-rails
    2
    Slide-rail release tab (green)
    3
    Slide-rail lock
