Install a PCIe Card in PCIe Slot 3

  1. Retrieve the PCIe card and riser you want to install.
  2. Insert the rear bracket that is attached to the PCIe card into the PCIe riser.
  3. Hold the riser in one hand and use your other hand to carefully insert the PCIe card connector into the riser.

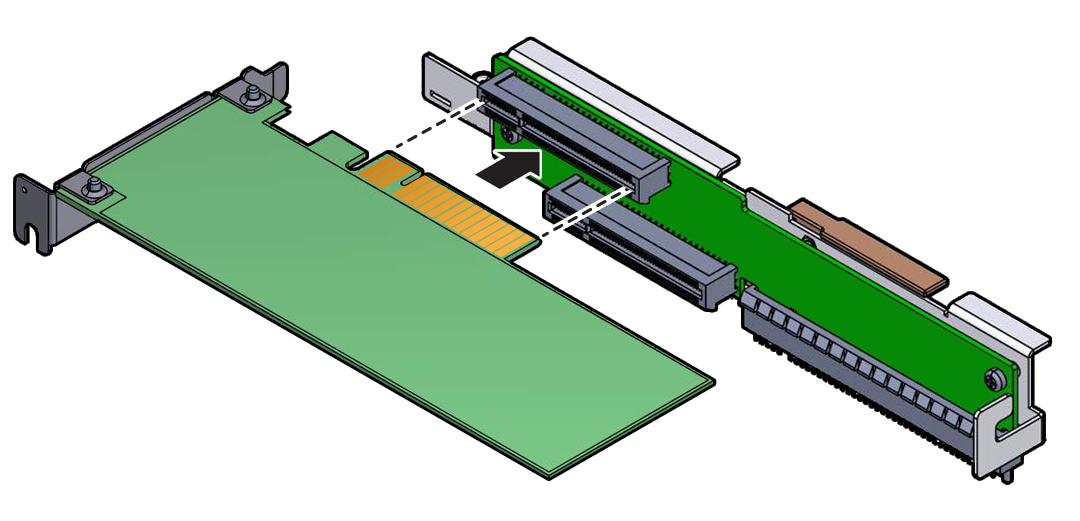

    image:Figure showing how to install a PCIe card in to slot 3.
  4. Install the PCIe riser.

    For instructions, see Install the PCIe Riser Into PCIe Slots 3 and 4.
