PCIe Riser Location and Differences

The PCIe riser that installs in PCIe slots 3 and 4 is different than the risers in PCIe slots 1 and 2. The riser for slots 3 and 4 supports two cards: a standard PCIe card and the internal HBA card. Do not attempt to install the PCIe riser for PCIe slots 3 and 4 in slots 1 or 2, and vice versa.

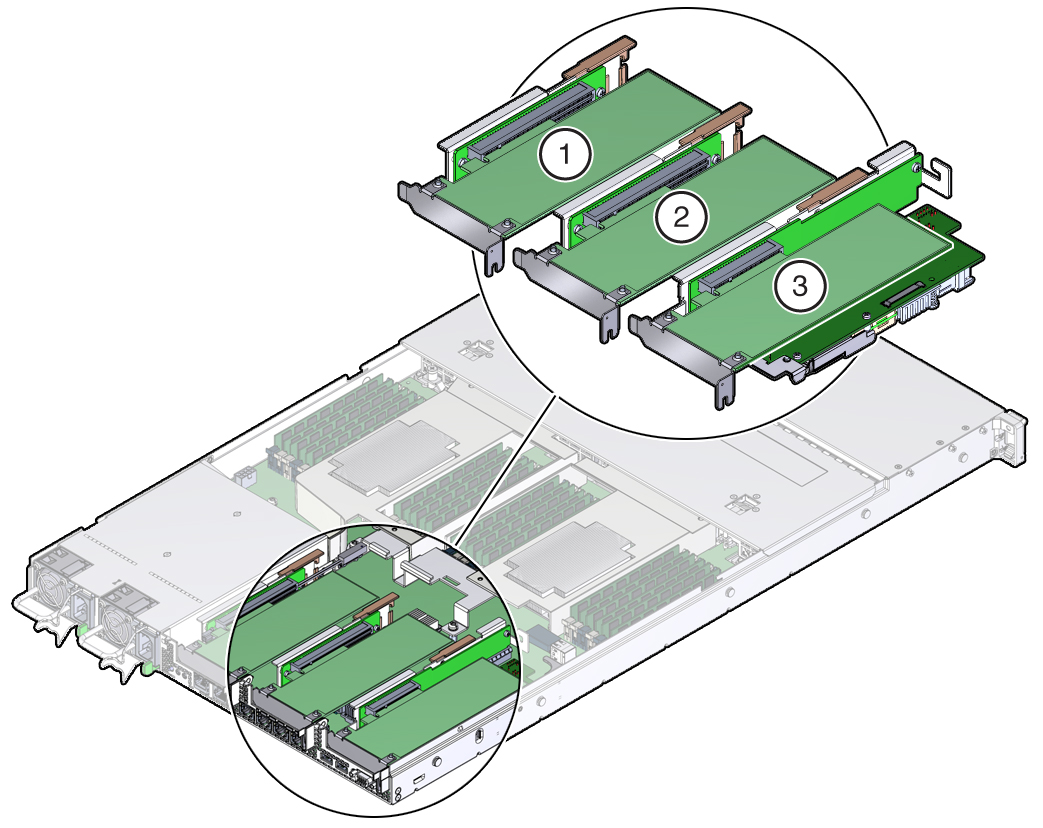

Figure 9  PCIe Riser Locations

image:Figure showing the location of PCIe risers installed in the                             system.

Legend
1
PCIe riser and installed PCIe InfiniBand card (slot 1)
2
PCIe riser and installed PCIe HBA card (slot 2)
3
PCIe riser and installed cluster interface card (slot 3) and the internal HBA card (slot 4) of this riser.

Note -  This riser is different from the risers in slots 1 and 2.
