Remove the Internal HBA Card From PCIe Slot 4


Note -  Only authorized Oracle Services personnel should remove and replace the internal HBA card.
  1. Prepare the controller for service.
    1. Power off the controller and disconnect the power cords from the power supplies.

      See Powering Off the Controller.

    2. Extend the controller to the maintenance position.

      See Extend the Controller to the Maintenance Position.

    3. Attach an antistatic wrist strap to your wrist, and then to a metal area on the chassis.

      See Take Antistatic Measures.

    4. Open the controller fan door to gain access to the disk backplanes.

      See Open the Controller Fan Door

    5. Remove fan module FM0 (the left most fan viewing the controller from the front).

      See Remove a Fan Module.

  2. Remove the PCIe riser from slots 3 and 4.

    For instructions, see Remove the PCIe Riser From PCIe Slots 3 and 4.

  3. Remove the internal host bus adapter card from the riser.

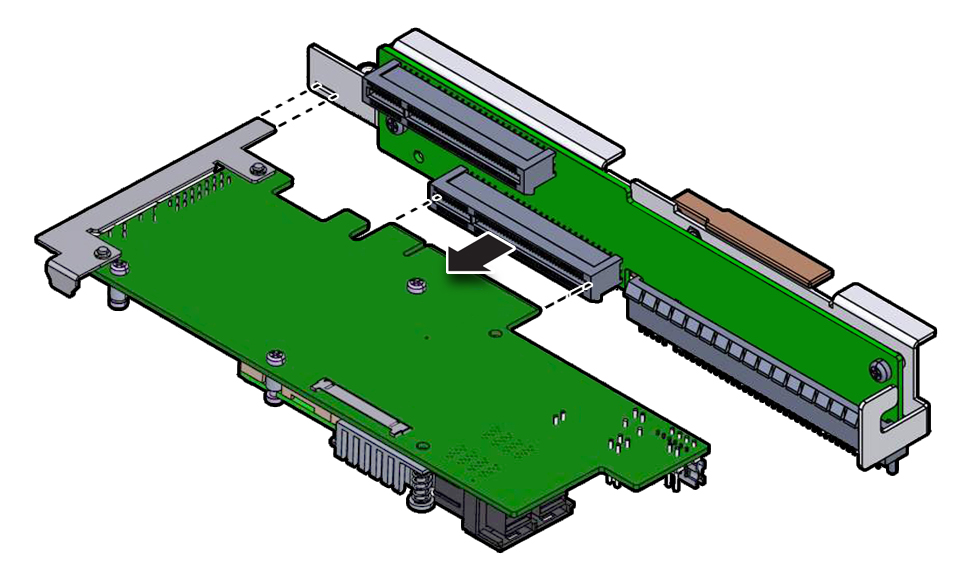

    1. Hold the riser in one hand and use your other hand to carefully remove the card from slot 4 of the riser.
    2. Disconnect the rear bracket attached to the PCIe card from the rear of the PCIe riser.
      image:Figure showing how to remove the internal HBA card from                                         slot 4.

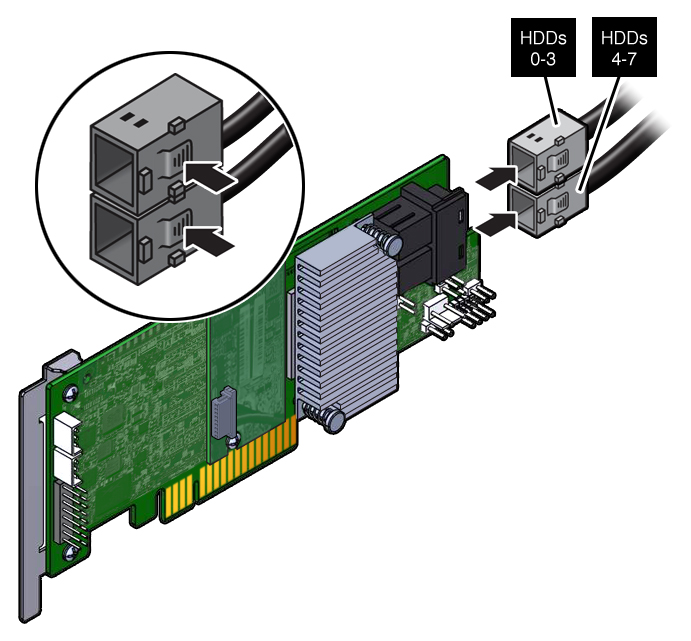

  4. Disconnect the SAS cables from the internal HBA card and place the card on an antistatic mat.
    image:Figure showing how to remove the SAS cables from the internal                                 HBA card in slot 4.

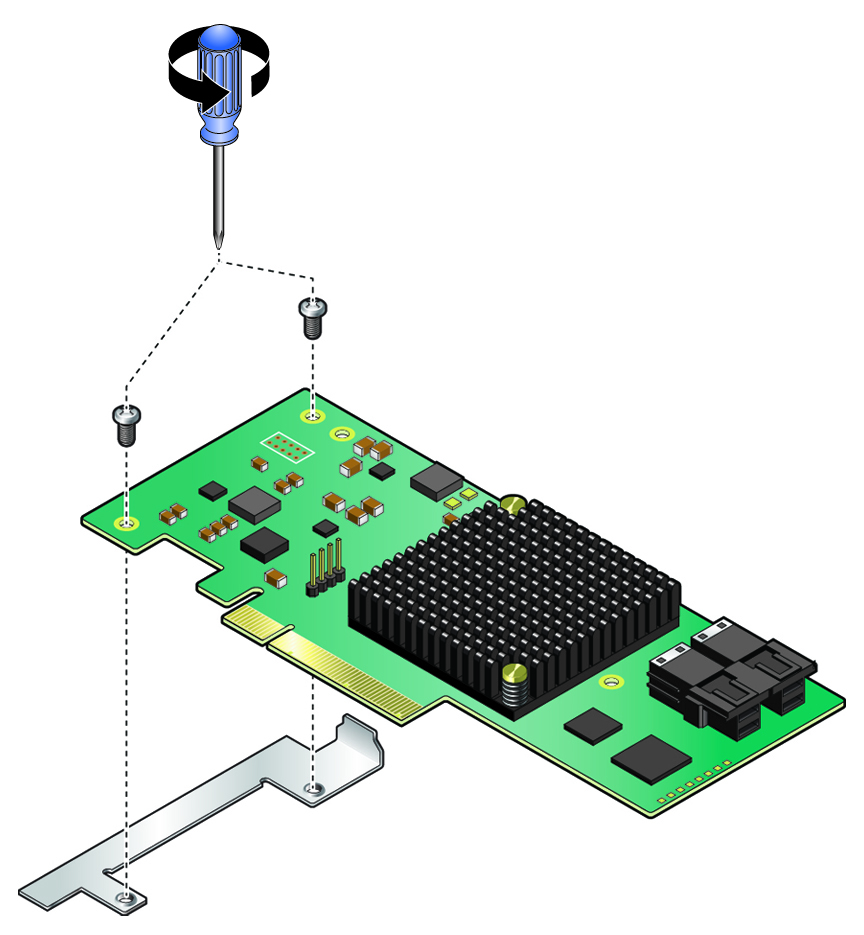

  5. If you are replacing the internal HBA card, use a No. 2 Philips screwdriver to remove the special fitted bracket from the HBA card.

    You will need to install the special fitted bracket on the replacement HBA card. Set aside the bracket until you are ready to install the replacement HBA card.


    image:Figure showing how to remove the special fitted bracket from                                 the HBA card.
