Install the Controller Top Cover

  1. Open the controller fan door.

    See Open the Controller Fan Door.

  2. Place the top cover on the chassis [1].

    Place the cover down so that it hangs over the rear of the controller by about 13 mm (0.5 inches) and the side latches align with the slots in the sides of the chassis.


    Note -  There are three latching tabs on the sides of the cover, two on the right side and one on the left side (viewing the controller from the front). There is also a latch on the underside of the cover in the front left corner.
  3. Check both sides of the chassis to ensure that the four corners of the top cover are fully down and flush with the chassis.

    If the cover corners are not flush with the chassis, slide the cover towards the rear of the chassis until you can position the cover correctly.


    Caution

    Caution  -  If the top cover is not correctly positioned before you attempt to slide the cover toward the front of the chassis, the internal latch that is located on the underside of the cover might be damaged.


  4. Gently slide the cover toward the front of the chassis until it locks into place (with an audible click) [2].

    As you slide the cover toward the front of the controller, watch the green release button. You will hear an audible click when the green release button pops up, indicating that the cover is locked.

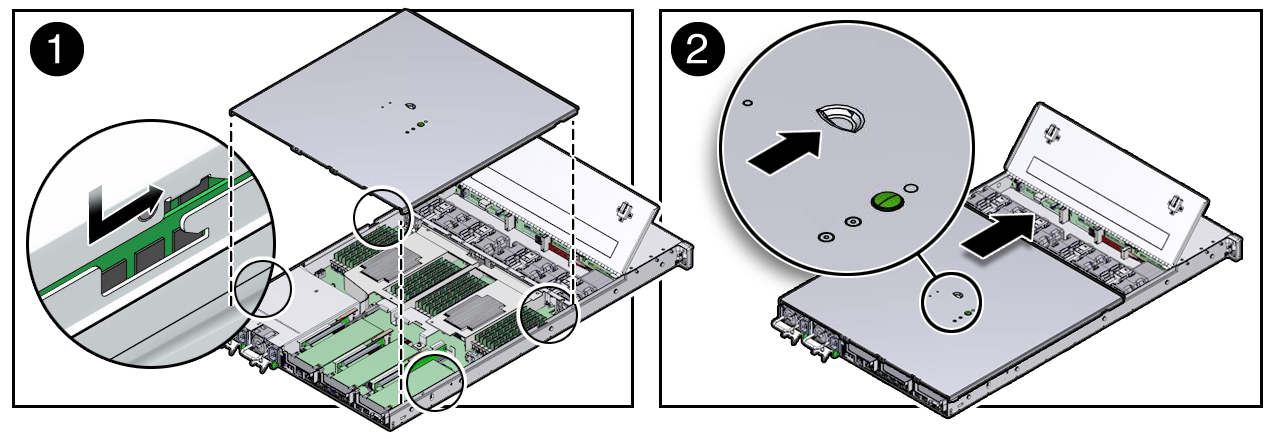

    image:Figure showing how to install the controller top cover.
  5. Close the controller fan door.
  6. Remove the antistatic precautions.

    See Remove Antistatic Measures.
