Storage Drive Locations and Numbering

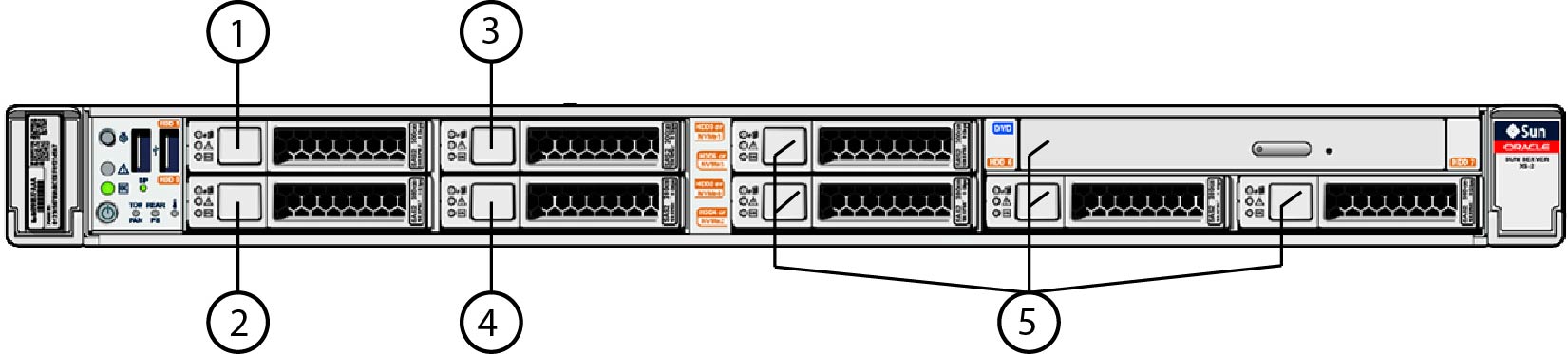

The following illustration and table show the locations of the HDD and SSD drives.

Figure 4  Controller Storage Drives

image:Figure showing the location and numbering of the storage drives.

Table 2  Controller Storage Drive Locations and Numbering
Legend
Legend
1
System boot drive 1 (HDD)
4
Read cache SSD
2
System boot drive 0 (HDD)
5
Permanent filler panels
3
Read cache SSD
