Return the Controller to the Normal Rack Position

If the controller is in the extended maintenance position, use this procedure to return the controller to the normal rack position.

  1. Push the controller back into the rack, as described in the following steps.
    1. Simultaneously pull and hold the two green release tabs (one on each side of the slide rails on the controller) toward the front of the controller while you push the controller into the rack.

      As you push the controller into the rack, verify that the cable management arm (CMA) retracts without binding.


      Note -  To pull a green release tab, place your finger in the center of the tab, not on the end, and apply pressure as you pull the tab toward the front of the controller.

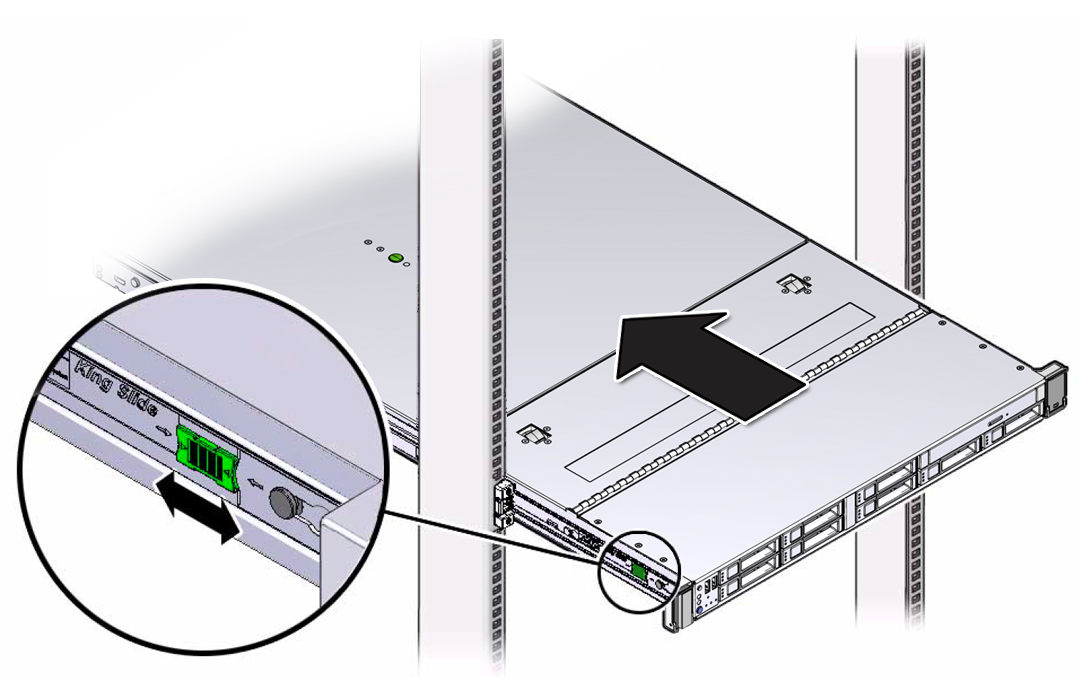

      image:Figure showing the location of the release tabs on the                                     slide-rails.
    2. Continue pushing the controller into the rack until the slide-rail locks (on the front of the controller) engage the slide-rail assemblies.

      You will hear an audible click when the controller is in the normal rack position.

  2. If the CMA is not installed, that is, you removed it because you removed the controller completely out of the rack, install the CMA.

    For installation instructions for the CMA, refer to (Optional) Install the Cable Management Arm in Oracle ZFS Storage ZS5-ES Installation Guide, Release OS8.7.x.

  3. If the cables are disconnected from the rear of the controller, that is, you disconnected the cables because you removed the controller completely out of the rack, reconnect the cables.
