Install a Power Supply


Caution  -  Always replace a faulty power supply with a power supply of the same type (model).

  1. Remove the replacement power supply from its packaging and place it on an antistatic mat.
  2. Align the replacement power supply with the empty power supply slot [1].
  3. Slide the power supply into the bay until it is fully seated [2].

    You will hear an audible click when the power supply fully seats.

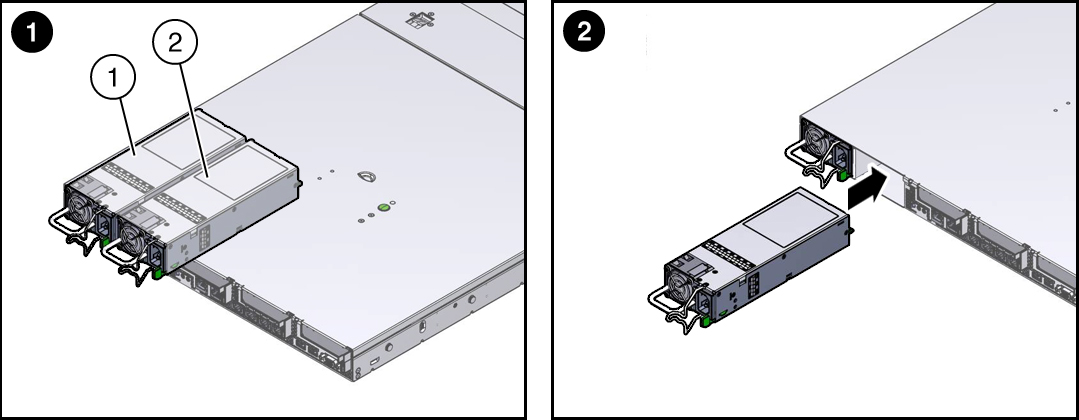

    image:Figure showing how to remove a power supply.
  4. Reconnect the power cord to the power supply.
  5. Verify that the amber LED on the replaced power supply and the Service Required LEDs on the front and rear panels of the controller are not lit.

    Note -  After you have replaced Power Supply 0, you must reset the Oracle ILOM service processor (SP) to propagate the key identity properties (KIP) data to the new power supply. For instructions on resetting the SP, see the Oracle Integrated Lights Out Manager (ILOM) 3.2 Configuration and Maintenance Guide at http://www.oracle.com/goto/ilom/docs. Power Supply 1 does not contain KIP data, and therefore does not require an SP reset after replacement.
  6. If you disconnected the two CMA left-side connectors, reconnect the connectors.

    For instructions for reconnecting the CMA left-side connectors, refer to Oracle ZFS Storage ZS5-ES Installation Guide.
