Remove the Front Indicator Module


Caution

Caution  -  The front indicator module should be removed only by authorized Oracle Services personnel.


  1. Prepare the controller for service.
    1. Power off the controller and disconnect the power cords from the power supplies.

      See Powering Off the Controller.

    2. Extend the controller to the maintenance position.

      See Extend the Controller to the Maintenance Position.

    3. Attach an antistatic wrist strap to your wrist, and then to a metal area on the chassis.

      See Take Antistatic Measures.

  2. To remove the top cover from the storage drive cage, do the following [1]:
    1. Remove the six Phillips screws from the top of the storage drive cage.

      There are three Phillips screws on each side of the storage drive cage.

    2. Open the controller fan door.

      See Open the Controller Fan Door.

    3. Slide the storage drive cage cover forward (toward the front of the controller) and lift it up.

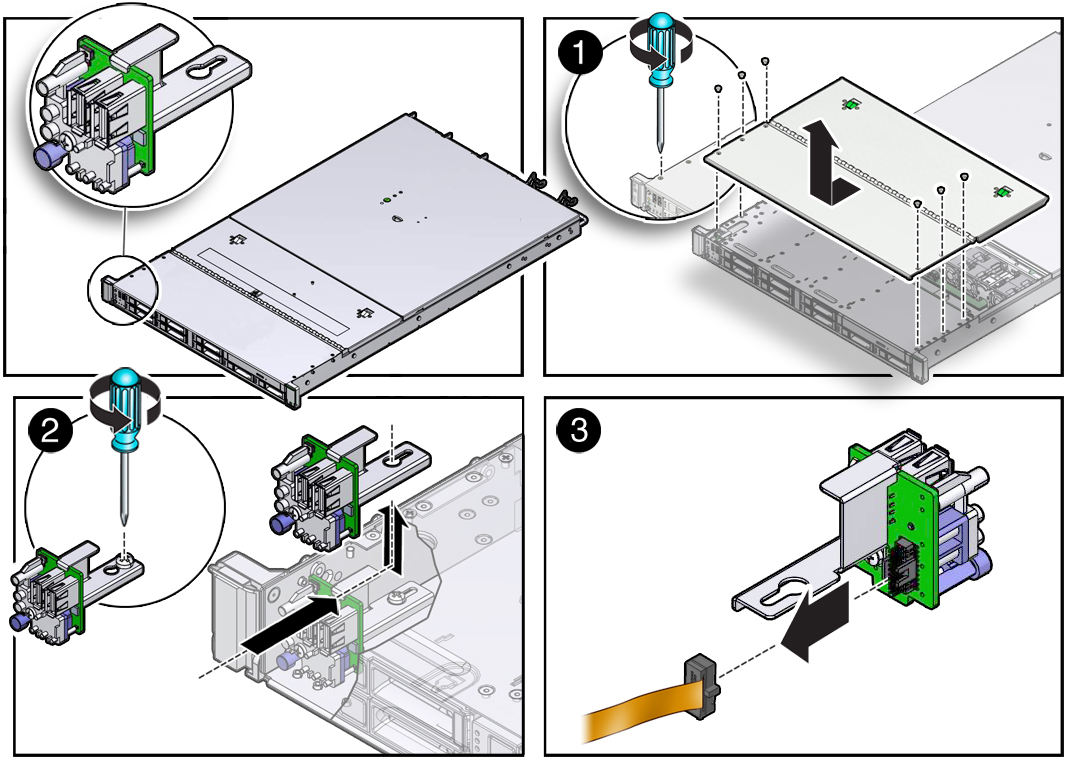

      image:Figure showing how to remove the front indicator module                                         (FIM) from the controller.
  3. Loosen the screw that secures the front indicator module (FIM) assembly to the controller chassis [2].
  4. Carefully slide the FIM assembly toward the rear of the controller enough to lift it over the Phillips screw and out of the controller [2].
  5. Disconnect the FIM cable from the FIM assembly and set the assembly aside [3].
  6. Continue to Install the Front Indicator Module.
