When you add a Location to your domain, you may have completed a form called the Location form. This form captures information regarding the setup and preferences for a particular Location, and then a unique personality file is created from this information. Even after you have activated a Location, you can view or modify this form at any time.
To access this form for a Location:
Right-click on the Location icon in the map or domain directory and select Edit.
Double-click the Location name in the domain directory.
Select the Location name in the domain directory and then select the Edit option from the tool bar or the Edit menu.

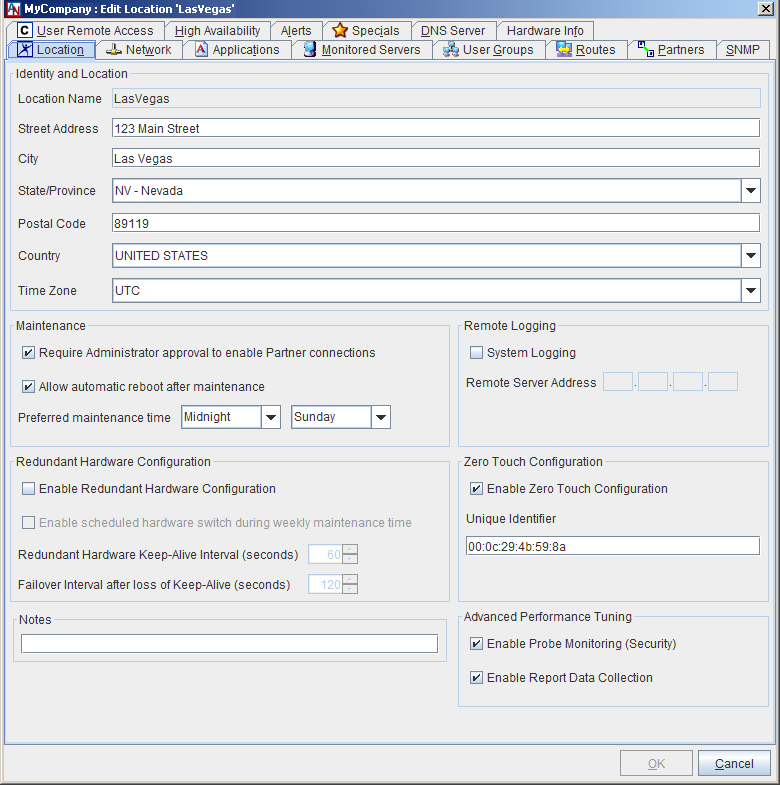

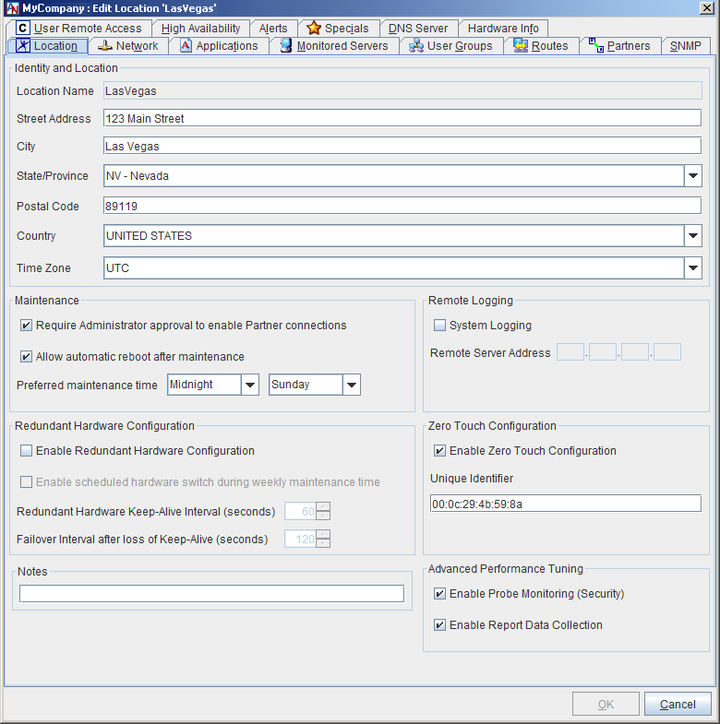

The Location form will be displayed. You can jump to a particular screen on the form by selecting one of the tabs displayed across the top.
If you decide to make any changes, click OK to store your changes and close the window. Click Cancel to close the window and discard the changes. You must save your changes with the Save button on the tool bar in order for them to take effect.
If you modify the form for a currently active Location, all changes to the personality will be downloaded directly to that Location. Be aware that some changes you make on this form may cause the Location server to restart when you Save your changes. If the Location restarts, service will be temporarily interrupted at that site.
When modifying a Location using the Location form, you must make certain that any changes you make in one screen are reflected in the other screens of the form. If the information you supply does not agree throughout the form, then it is possible that your Location or pieces of your domain or even LAN will stop working. The Location form will notify you in an alert box what additional information needs to be changed when you make a modification; however, you must go to those screens yourself and make the appropriate additional changes.
For information about the tabs and fields on this form, creating new Locations, and downloading Locations for installation, refer to the Corente Virtual Services Gateway Hardware Preparation and Deployment manual.
