Chapter 14 Introduction to Job Scheduling and Notifications

Netscape Certificate Management System (CMS) includes a component called Job Scheduler that can execute specific jobs at specified times. The job scheduler functions similar to a traditional Unix cron daemon in that it takes registered cron jobs and executes them at a preconfigured date and time. If configured, the scheduler checks at specified intervals for jobs waiting to be executed; if the specified execution time has arrived, the scheduler initiates the job automatically. Jobs that you might want to schedule include email notifications of timed events (such as the expiration of a certificate) that require action on the part of users, and periodic activities such as updates of related directories.

You can also configure Certificate Management System to send email notifications automatically to end entities, agents, or administrators when certain events occur. Unlike jobs that are executed on a preconfigured schedule, these notifications are event-driven--that is, whenever an event occurs, the server notifies the user. Notifiable events include certificate issuance and pending requests in an agent queue.

This chapter describes the job plug-in modules and event notifications that come with Certificate Management System and explains how to schedule times for jobs.

The chapter has the following sections:


Overview of Job Plug-in Modules
Both the Certificate Manager and Registration Manager provide a set of job plug-in modules that can be employed by the server to automate certain activities. Table 14.1 lists these modules.

Jobs are implemented as Java classes, which are then registered with Certificate Management System as plug-in modules. You can use a given implementation of a job module and configure multiple instances of it. Each instance must have a unique name (an alphanumeric string with no spaces) and can contain different input parameter values to apply to different jobs. In other words, a given job implementation can be shared by multiple configurations.

Table 14.1 Schedulable job plug-in modules for Certificate Manager and Registration Manager

Plug-in module name
Description
RenewalNotificationJob
A schedulable job that notifies end entities by email that their certificates are about to expire and must be renewed, and optionally sends a summary of these notices to agents. For more information, see "Certificate Renewal Notifications".
RequestInQueueJob
A schedulable job that notifies agents at regular intervals of the current state of the request queue.

In addition, agents can also be notified by email that a request has been added to the request queue by configuring an event-driven notification. See "Notification of Request Queue Status".
UnpublishExpiredJob
A schedulable job that updates the configured publishing directory periodically by removing expired certificates, and sends a summary of removed certificates to agents or administrators. For more information, see "Directory Update and Notification".

Certificate Renewal Notifications

When a certificate is about to expire, the owner of the certificate needs to renew it. Using the Jobs Scheduler, you can configure a Certificate Manager or Registration Manager to automatically send email-based renewal notices to users whose certificates are about to expire or have expired. You can also configure these subsystems to send one or more administrators or issuing agents a summary of users who have received these reminders.

RenewalNotificationJob Module

The java class that implements the job for scheduling renewal notifications is identified as follows:

com.netscape.certsrv.jobs.RenewalNotificationJob

This plug-in is a schedulable job. When an instance of the job is enabled, it checks for certificates that are about to expire in the internal database. When it finds one, it automatically emails the certificate's owner and continues sending email reminders for a configured period of time, or until the certificate is renewed. The job also collects a summary of all such renewal notifications and mails the summary to one or more agents or administrators.

The job determines the email address to which to send the notification using an email resolver, which you can customize. By default, the email address is found in the certificate itself or in the certificate's associated enrollment request.

The email notification message, as well as the summary message, are constructed using a template found in the configured directory. This directory has the following default location:

<server_root>/cert-<instance_id>/emails

You can configure both the path and filenames of the template files for each job and modify the templates to customize the contents and appearance of the messages. Messages can be sent as HTML or plain text. For customization information, see "Customizing Notification Messages".

For each instance of the RenewalNotificationJob class, you can configure the following:

If a summary is to be sent, you can configure the following:

Figure 14.1 shows how the configurable parameters pertaining to the RenewalNotificationJob plug-in module are displayed in the CMS window.

Figure 14.1 Parameters defined in the RenewalNotificationJob module

Table 14.2 gives details about each of these parameters.

Table 14.2 Description of parameters defined in the RenewalNotificationJob module

Parameter
Description
enabled
Specifies whether the job is enabled or disabled. Check the box to enable the job. Uncheck the box to disable the job. If you enable the job and set the remaining parameters correctly, the server runs the job at scheduled intervals.

cron
Specifies the cron specification for when this job should be run. In other words, it specifies the time at which the Job Scheduler daemon thread should check the certificates for sending renewal notifications.

Permissible values: Must follow the convention specified in "Schedule for Executing Jobs"

Example: 03**1-5

notifyTriggerOffset
Specifies how long (in days) before certificate expiration the first notification will be sent.

Permissible values: As applicable.

Example: 30

notifyEndOffset
Specifies how long (in days) after the certificate expire notifications will continue to be sent, if the certificate is not renewed.

Permissible values: As applicable.

Example: 30

senderEmail
Specifies the sender of the notification messages (who will be notified of any delivery problems).

Permissible values: The complete email address.

Example: CertCentral@siroe.com

emailSubject
Specifies the subject line of the notification message.

Permissible values: An alphanumeric string of up to 255 characters.

Example: Certificate Renewal Notification

emailTemplate
Specifies the path, including the filename, to the directory that contains the template to be used for formulating the message content.

Permissible values: Template file path, including the file name.

Example: C:/Netscape/Server4/cert-testCA/emails/renewJob.txt

summary.enabled
Specifies whether a summary report of renewal notifications should be compiled and sent. Check the box if you want the server to compose and send a summary report. Uncheck the box if you don't want the server to compose and send a summary report. If you check the box, be sure to set the remaining parameters; these are required by the server to send the summary report.

summary.
recipientEmail

Specifies the recipients of the summary message. These can be, for example, agents who need to know the status of user certificates.

Permissible values: Full email addresses, separated by commas.

Example: ca_agent1@siroe.com,ca_agent2@siroe.com

summary.senderEmail
Specifies the sender of the summary message (who will be notified of any delivery problems).

Permissible values: The full email address.

Example: CAadmin@siroe.com

summary.
emailSubject

Specifies the subject line of the summary message.

Permissible values: An alphanumeric string of up to 255 characters.

Example: Certificate Renewal Notification Summary

summary.
itemTemplate

Specifies the path, including the filename, to the directory that contains the template to be used for formulating the content and format of each item to be collected for the summary report (see the summary.emailTemplate parameter below). For details, see "Customizing Notification Messages".

Permissible values: The template file path, including the file name.

Example: C:/Netscape/Server4/cert-testCA/emails/renewJobItem.txt

summary.
emailTemplate

Specifies the path, including the filename, to the directory that contains the template to be used for formulating the summary report. For details, see "Customizing Notification Messages".

Permissible values: The template file path, including the file name.

Example: C:/Netscape/Server4/cert-testCA/emails/renewJobSummary.txt

Notification of Request Queue Status

In addition to or instead of notifying agents of new requests, you might want to schedule a job that regularly notifies them of the status of the request queue. Such a job can check at a configured interval whether there are any deferred enrollment requests waiting for review. It can then send an email message to agents informing them of the number of requests waiting in the request queue for which they are responsible.

RequestInQJob Module

The java class that implements the job for request-queue-status notifications is identified as follows:

com.netscape.certsrv.jobs.RequestInQJob

This plug-in is a schedulable job. When an instance of the job is enabled, it gets activated at the configured interval and checks the status of the request queue. If any deferred enrollment requests are waiting in the queue, the job constructs an email message summarizing its findings and sends it to the specified agents.

The job constructs the summary message by using a template located in a configured directory. This directory has the following default location:

<server_root>/cert-<instance_id>/emails

You can configure the path and filename of the template file for each job and modify the templates to customize the contents and appearance of the messages. Messages can be sent as HTML or plain text.

For each instance of the RequestInQJob class, you can configure the following:

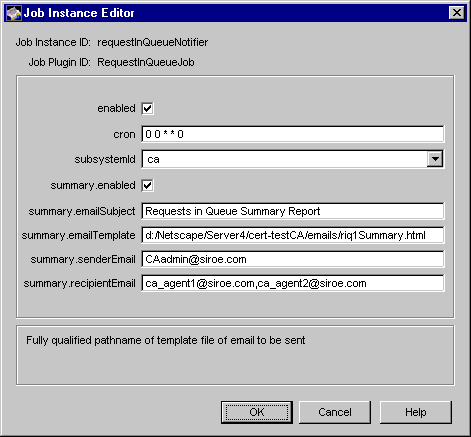

Figure 14.2 shows how the configurable parameters for the RequestInQJob module are displayed in the CMS window.

Figure 14.2 Parameters defined in the RequestInQJob module

Table 14.3 gives details for each of these parameters.

Table 14.3 Description of parameters defined in the RequestInQJob module

Parameter
Description
enabled
Specifies whether the job is enabled or disabled. Check the box to enable the job. Uncheck the box to disable the job. If you enable the job and set the remaining parameters correctly, the server runs the job at scheduled intervals.

cron
Specifies the cron specification for when this job should be run. This is the time at which the Job Scheduler daemon thread checks the queue for pending requests.

Permissible values: Must follow the convention specified in "Schedule for Executing Jobs"

Example: 00**0

subsystemid
Specifies the subsystem that this job is for.

Permissible values: ca or ra.

Example: ca

summary.enabled
Specifies whether a summary of the job accomplished should be compiled and sent. Check the box if you want the server to compose and send a summary report. Uncheck the box if you don't want the server to compose and send a summary report. If you check the box, be sure to set the remaining parameters; these are required by the server to send the summary report.

summary.
emailSubject

Specifies the subject line of the summary message.

Permissible values: An alphanumeric string of up to 255 characters.

Example: Summary Report of Requests in the Agent Queue

summary.
emailTemplate

Specifies the path, including the filename, to the directory that contains the template to be used for formulating the summary report. For details, see "Customizing Notification Messages".

Permissible values: The template file path, including the file name.

Example: C:/Netscape/Server4/cert-testCA/emails/reqInQJobSummary.txt

summary.senderEmail
Specifies the sender of the notification message (who should be notified of any delivery problems).

Permissible values: The full email address.

Example: CAadmin@siroe.com

summary.
recipientEmail

Specifies the recipients of the summary message. These should be, for example, agents who need to process pending requests.

Permissible values: Full email addresses, separated by commas.

Example: ca_agent1@siroe.com,ca_agent2@siroe.com

Directory Update and Notification

Certificate Management System doesn't automatically remove expired certificates from the publishing directory. If you configure a Certificate Manager or Registration Manager to publish certificates to an LDAP directory, over time the directory will contain expired certificates. To help you remove expired certificates from the directory, both the Certificate Manager and Registration Manager come with a plug-in module that allows you to create a schedulable job that periodically removes (or unpublishes) certificates that have expired. When the directory has been updated, the job can collect a summary report of the certificates that have been removed and send it to people who need to have this information. Typically, you would want to send this notification to certificate issuing agents or the administrator of the publishing directory.

Note that the job automates removal of expired certificates from the directory. You can also remove expired certificates manually following the instructions in "Manually Updating Certificates in the Directory".

UnpublishExpiredJob Module

The java class that implements the job for scheduling removal of expired certificates from the directory is identified as follows:

com.netscape.certsrv.jobs.UnpublishExpiredJob

This plug-in is a schedulable job. When an instance of the job is enabled, it gets activated at the configured interval and checks for certificates that have expired and are still marked as published in the internal database. The job connects to the publishing directory and deletes these certificates; it then marks these certificates as unpublished in the internal database. The job also collects a summary of expired certificates that it deleted and mails the summary to one or more agents or administrators as specified by the configuration.

The job constructs the summary message by using a template located in a configured directory. This directory has the following default location:

<server_root>/cert-<instance_id>/emails

You can configure the path and filename of the template file for each job. You can also modify the templates to customize the contents and appearance of the messages; see "Customizing Message Templates".

Messages can be sent as HTML or plain text.

For each instance of the UnpublishExpiredJob class, you can configure the following:

If a summary is to be sent, you can configure the following:

Figure 14.3 shows how the configurable parameters for the UnpublishExpiredJob module are displayed in the CMS window.

Figure 14.3 Parameters defined in the UnpublishExpiredJob module

Table 14.4 gives details for each of these parameters.

Table 14.4 Description of parameters defined in the UnpublishExpiredJob module

Parameter
Description
enabled
Specifies whether the job is enabled or disabled. Check the box to enable the job. Uncheck the box to disable the job. If you enable the job and set the remaining parameters correctly, the server runs the job at scheduled intervals.

cron
Specifies the cron specification for when this job should be run. This is the time at which the Job Scheduler daemon thread checks the certificates for removing expired certificates from the publishing directory.

Permissible values: Must follow the convention specified in "Schedule for Executing Jobs"

Example: 00**6

summary.enabled
Specifies whether a summary of the certificates removed by the job should be compiled and sent. Check the box if you want the server to compose and send a summary report. Uncheck the box if you don't want the server to compose and send a summary report. If you check the box, be sure to set the remaining parameters; these are required by the server to send the summary report.

summary.
emailSubject

Specifies the subject line of the summary message.

Permissible values: An alphanumeric string of up to 255 characters.

Example: Expired Certificate Removal Job Summary

summary.
emailTemplate

Specifies the path, including the filename, to the directory that contains the template to be used for formulating the summary report. For details, see "Customizing Notification Messages".

Permissible values: The template file path, including the file name.

Example: C:/Netscape/Server4/cert-testCA/emails/unpublishCertsJobSummary.html

summary.
itemTemplate

Specifies the path, including the filename, to the directory that contains the template to be used for formulating the content and format of each item to be collected for the summary report (see the summary.emailTemplate parameter above).

Permissible values: The template file path, including the file name.

Example: C:/Netscape/Server4/cert-testCA/emails/unpublishCertsJobItem.txt

summary.senderEmail
Specifies the sender of the summary message (who should be notified of any delivery problems).

Permissible values: The full email address.

Example: CAadmin@siroe.com

summary.
recipientEmail

Specifies the recipients of the summary message. These can be, for example, agents who need to know the status of user certificates.

Permissible values: Complete email addresses, separated by commas.

Example: cert_agent1@siroe.com,cert_agent2@siroe.com

Schedule for Executing Jobs

The Job Scheduler uses a variation of the Unix crontab entry format to specify dates and times for checking the job queue and executing jobs. As shown in Table 14.5, the time entry format consists of five fields (the sixth field specified for the Unix crontab is not used by the Job Scheduler). Values are separated by spaces or tabs.

Table 14.5 Time format for scheduling jobs

Field
Value
Minute
0-59
Hour
0-23
Day of month
1-31
Month of year
1-12
Day of week
0-6 (where 0=Sunday)

Each field can contain either a single integer or a pair of integers separated by a hyphen or dash (-) to indicate an inclusive range. To specify all legal values, a field can contain an asterisk rather than an integer. Day fields can contain a comma-separated list of values.

For example, the following time entry specifies every hour at 15 minutes (1:15, 2:15, 3:15 and so on):

15 * * * *

The following example specifies a job execution time of noon on April 12:

0 12 12 4 *

The day-of-month and day-of-week fields can contain a comma-separated list of values to specify more than one day. If both day fields are specified, the specification is inclusive; that is, the day of the month is not required to fall on the day of the week to be valid. For example, the following entry specifies a job execution time of midnight on the first and fifteenth of every month, and on every Monday:

0 0 1,15 * 1

To specify one day type without the other, use an asterisk in the other day field. For example, the following entry specifies a job execution time of 3:15 a.m. on every weekday morning:

15 3 * * 1-5


Event-Driven Notifications
You can configure a Certificate Manager or Registration Manager to send email notifications automatically to end entities, agents, or administrators when certain events occur. Unlike jobs that are executed at a preconfigured schedule by the Job Scheduler component, these notifications are event driven--that is, whenever the specified event occurs, the server notifies the configured user.

Notifiable events include the following:

Notifications of Certificate Issuance to End Entities

You can configure the Certificate Manager or Registration Manager to send a notification message to users who have been issued certificates in response to enrollment requests. This message normally includes information about the issued certificate and instructions for importing the certificate into the user's client.

This kind of notification involves a listener class in the subsystem that registers an interest in an appropriate event, in this case successful completion of an enrollment request. In the CMS configuration, this listener class for a Certificate Manager is defined as ca.notification.certIssued and for the Registration Manager it is defined as ra.notification.certIssued.

For more information on listeners, check the samples directory:

<server_root>/cms_sdk/samples/listeners

When a certificate is issued, the listener builds a notification message based on a configured template and sends it to an email address that it determines by using an email resolver. By default the email is obtained from the email address entered in the request or from the certificate.

Note that you can customize the email resolver using the ReqCertSANameEmailResolver.java class included as a sample at this location: <server_root>/cms_sdk/samples/resolvers

The template that the listener uses to construct the email notification message is located in the configured directory. This directory has the following default location: <server_root>/cert-<instance_id>/emails

You can configure both the path and filename of the template file. You can also modify the template to customize the contents and appearance of the messages; see "Customizing Message Templates".

Messages can be sent as HTML or plain text.

For the certIssued listener, you can configure the following:

Configuring a Subsystem to Send Notifications to End Entities

To configure a Certificate Manager or Registration Manager to send certificate-issuance notifications to end entities:

  1. Access the CMS window (see "Logging In to the CMS Window").
  2. Click the Configuration tab.
  3. In the navigation tree, select the subsystem, then click Notification. (The figure below shows the Certificate Manager's notification feature; the Registration Manager also has a similar feature.)
  4. The Certificate Issued tab appears.

  5. To enable the notification feature, check the "Enable Certificate Issued notification" option.
  6. In the Email Information Settings section, enter information as appropriate:
  7. Sender's E-mail Address. Type the sender's full email address (this is the person who should be notified of any delivery problems).

    Subject. Type the subject title for the notification.

    Content template path. Type the path, including the filename, to the directory that contains the template to be used for formulating the message content.

  8. To save your changes, click Save.
  9. The CMS configuration is modified. If the changes you made require you to restart the server, you will be prompted accordingly. In that case, restart the server.

Notification of New Request in Queue

When a deferred end-entity request enters the request queue of a Certificate Manager or Registration Manager, agents assigned to manage the queue must review the request and reject or accept it. To help ensure that an agent processes the request in a timely manner, you can configure the subsystem to notify agents whenever a new request gets added to the request queue.

This kind of notification involves a listener class in the subsystem that registers an interest in an appropriate event, in this case the addition of a request to the request queue. In the CMS configuration, this listener class is identified as follows: ca.notification.requestInQ

For more information on listener classes, check the samples directory:

<server_root>/cms_sdk/samples/listeners

When a request is added to the queue, the listener builds a notification message based on a configured template and sends it to one or more agents' email addresses as configured.

The template that the listener uses to construct the email notification message is located in the configured directory. This directory has the following default location:

<server_root>/cert-<instance_id>/emails

You can configure both the path and filename of the template file. You can also modify the template to customize the contents and appearance of the messages; see "Customizing Message Templates".

For the requestInQ event listener, you can configure the following:

Configuring a Subsystem to Send Request Queue Notifications

To configure a Certificate Manager or Registration Manager to send email notifications to its agents:

  1. Access the CMS window (see "Logging In to the CMS Window").
  2. Click the Configuration tab.
  3. In the navigation tree, select the subsystem, and then click Notification. (The figure below shows the Certificate Manager's notification feature; the Registration Manager also has a similar feature.)
  4. In the right pane, click Request In Queue.

  5. To enable the notification feature, check the "Enable Request In Queue notification" option.
  6. Enter information as appropriate:
  7. Sender's E-Mail Address. Type the sender's full email address (this is the person who should be notified of any delivery problems).

    Subject. Type the subject title for the notification--for example, "End Entity Request in Queue."

    Recipient's E-Mail Address. Type the recipient's full email address (this is the person who will check the queue). You can specify more than one recipient; separate email addresses by commas.

    Content template path. Type the path, including the filename, to the directory that contains the template to be used for formulating the message content.

  8. To save your changes, click Save.
  9. The CMS configuration is modified. If the changes you made require you to restart the server, you will be prompted accordingly. In that case, restart the server.


Customizing Notification Messages
Notification and summary email messages are constructed using templates located in the emails directory of a CMS instance. This directory has the following default location:

<server_root>/cert-<instance_id>/emails

Both text an HTML templates are included by default. They are listed in Table 14.6 and Table 14.7.

Templates for Event-Triggered Notifications

Table 14.6 lists the default template files provided for formulating event-triggered-notification messages. You can customize certain aspects of these templates--such as the subject of the email message and the location and name of the template file--using the CMS window.

Table 14.6 Default templates for event-triggered notifications

Filename
Description
certIssued_CA
Template for the Certificate Manager to send plain-text notifications to end entities upon issuance of certificates.
certIssued_CA.html
Template for the Certificate Manager to send HTML-based notifications to end entities upon issuance of certificates.
certIssued_RA
Template for the Registration Manager to send plain-text notifications to end entities upon issuance of certificates.
certIssued_RA.html
Template for the Registration Manager to send HTML-based notifications to end entities upon issuance of certificates.
certRequestRejected_CA
Template for the Certificate Manager to send plain-text notifications to end entities when rejecting their certificate requests.
certRequestRejected_CA.html
Template for the Certificate Manager to send HTML-based notifications to end entities when rejecting their certificate requests.
certRequestRejected_RA
Template for the Registration Manager to send plain-text notifications to end entities when rejecting their certificate requests.
certRequestRejected_RA.html
Template for the Registration Manager to send HTML-based notifications to end entities when rejecting their certificate requests.
reqInQueue
Template for the Certificate Manager or Registration Manager to send plain-text notifications to agents when a request enters the queue.
reqInQueue.html
Template for the Certificate Manager or Registration Manager to send plain-text notifications to agents when a request enters the queue.

Note that the email notification that a certificate has been issued is based on a template file whose default name begins with certIssued. Similarly, the email notification that a certificate has been rejected is based on a template file whose name begins with certRequestRejected. This template file must be located in the same directory as the certificate-issuance template. Unlike the certificate-issuance template, the filename of the certificate-rejection template (certRequestRejected) cannot be changed. However, the file extension for the certRequestRejected file can be changed, as long as it exactly matches the file extension specified for the certificate issuance template file. For example, if the certificate issuance template file is named certIssued_CA.htm, the certRequestRejected file must be named certRequestRejected.htm. The HTML file extensions permitted are .htm, .html, .HTM, and .HTML. Template files with any other extension (or no extension) are treated as text files.

If you change the name of any of these files, be sure to make the appropriate changes to the configuration (see the "Content template file" field on page 451 and page 454). In the CMS configuration, template files for event-triggered notifications are identified as follows:

<subsystem>.notification.<notification_name>.emailTemplate=
<template_file_path>

<subsystem>.notification.<notification_name>.emailTemplate=
<template_file_path>

Tokens, which you can use as variables in the body of the message, are also defined for each template, enabling you to customize the message; a token is replaced by its current variable value in the constructed message. For details, see "Customizing Message Templates".

Templates for Summary Notifications

Table 14.7 lists the default template files for formulating the notification messages that summarize jobs that were executed by the Job Scheduler component of a Certificate Manager or Registration Manager. You can change the name of these files as applicable; be sure to make the appropriate changes to the configuration.

For summaries, a separate template is used to format the entry for each item in the summary. The item entries are then added to a table in the summary message.

Tokens, which you can use as variables in the body of the message, are defined for each templates enabling you to customize the message; the token is replaced by its current variable value in the constructed message. For details, see "Customizing Message Templates".

Table 14.7 Default templates for summary notifications

Filename
Description
Templates for UnpublishExpiredJob module
ExpiredUnpublishJob
Template for formulating the summary report or table that summarizes removal of expired certificates from the directory.
ExpiredUnpublishJobItem
Template for formatting the items to be included in the summary table, which is constructed using the ExpiredUnpublishJob template.

Templates for RequestInQueueJob module
riq1Item.html
Template for formatting the items to be included in the summary table, which is constructed using the riq1Summary.html template.
riq1Summary.html
Template for formulating the summary report or table that summarizes how many requests are pending in the agent queue of a Certificate Manager or Registration Manager.

Templates for RenewalNotificationJob module
rnJob1.txt
Template for formulating the message content to be sent to end entities to inform them that their certificates are about to expire and that they should renew their certificates before expiration.
rnJob1Item.txt
Template for formatting the items to be included in the summary report, which is constructed using the rnJob1Summary.txt template.
rnJob1Summary.txt
Template for formulating the summary report to be sent to agents and administrators.

Note that in the CMS configuration, template files for schedulable jobs are identified as follows:

jobsScheduler.job.<job_name>.summary.emailTemplate=
<template_file_path>

jobsScheduler.job.<job_name>.summary.itemTemplate=
<template_file_path>

Customizing Message Templates

You can modify the templates to customize the contents and appearance of messages. The message body can contain HTML or plain text. In the body of the message, you can use tokens or keywords as variables. A token is indicated by the dollar character ($) and is replaced by its current variable value in the constructed message. Different tokens are available for each job or notification class. These are listed in "Tokens Available in Message Templates".

For example, a certificate-issuance-notification message can make use of tokens as follows:

CERTIFICATE ISSUANCE NOTIFICATION

Your certificate request ($RequestId) has been processed successfully. Details of your certificate are as follows:

Serial Number= $SerialNumber

SubjectDN= $SubjectDN

IssuerDN= $IssuerDN

Validity Period= $NotBefore - $NotAfter

To get your certificate, please follow this URL:

https://$HttpHost:$HttpPort/getCertFromRequest?requestId=$RequestId

If you have any questions or problems, please send an email to cert_central@siroe.com.

Thank you.

Tokens Available in Message Templates

This section explains the tokens provided in the templates used by the default job plug-in and event-triggered notification modules to formulate notification messages.

Tokens for Certificate Issuance Notifications to End Entities

Table 14.8 lists the tokens that are available in the message templates provided for formulating the content of email notifications to end entities; a Certificate Manager or Registration Manager can send these notifications upon issuance of the certificates they requested.

Table 14.8 Tokens defined in templates used for certificate-issuance notifications

Token
Description
$HttpHost
Specifies the fully qualified host name of the Certificate Manager or Registration Manager to which end entities should connect to retrieve their certificates. (This token enables you to construct the URL from which end entities can download their certificates; see the example in "Customizing Message Templates".)
$HttpPort
Specifies the port number at which the Certificate Manager or Registration Manager is listening to end-entity requests. (This token enables you to construct the URL from which end entities can download their certificates; see the example in "Customizing Message Templates".)
$InstanceID
Specifies the ID assigned to the subsystem that sent this notification.
$IssuerDN
Specifies the distinguished name of the CA that issued the certificate.
$NotAfter
Specifies the NotAfter attribute.
$NotBefore
Specifies the NotBefore attribute.
$RecipientEmail
Specifies the email address of the recipient (the address resolved from the email resolver explained in "Notifications of Certificate Issuance to End Entities").
$RequestId
Specifies the request ID.
$SerialNumber
Specifies the serial number of the certificate that has been issued.
$SenderEmail
Specifies the email address of the sender (it is the same as the one you specify in the Sender's E-mail Address field in "Configuring a Subsystem to Send Notifications to End Entities").
$SubjectDN
Specifies the distinguished name of the certificate subject.

Tokens for Rejection Notifications to End Entities

Table 14.9 lists tokens that are available in the message templates provided for formulating the content of email notifications to end entities; a Certificate Manager or Registration Manager can send these notifications to end entities when rejecting certificate requests.

Table 14.9 Tokens defined in templates used for request-rejection notifications

Token
Description
$InstanceID
Specifies the ID assigned to the subsystem that sent this notification.
$RequestId
Specifies the request ID.

Tokens for Renewal Notification Messages

This section lists the tokens that are available in the message templates for instances of the RenewalNotificationJob class or plug-in module.

Table 14.10 lists the tokens that you can use for formulating this job's summary report. You can customize the content and format of the items in the report by using the tokens defined in Table 14.11.

Table 14.10 Tokens for the renewal-notification job's summary report

Token
Description
$ExecutionTime
Specifies the time the job (instance) was run.
$InstanceID
Specifies the name of the job instance.
$SummaryItemList
Specifies the list of items in the summary notification. Each item corresponds to a certificate the job detects for renewal.
$SummaryTotalfailure
Specifies the total number of items in the summary report that failed.
$SummaryTotalNum
Specifies the total number of items (certificates that require to be renewed) in the summary report.
$SummaryTotalSuccess
Specifies how many of the total number of items in the summary report succeeded.

Table 14.11 lists the tokens for the inner list items.

Table 14.11 Tokens for items in renewal-notification job's summary report

Token
Description
$CertType
Specifies the type of certificate--whether SSL client (client), SSL server (server), Registration Manager's signing certificate (ra), Certificate Manager's CA signing certificate (ca), router certificate (Cisco-router), or other (other).
$HttpHost
Specifies the fully qualified host name of the Certificate Manager or Registration Manager to which end entities should connect to renew their certificates. (The token enables you to construct the URL which end entities use to renew their certificates; see the example in "Customizing Message Templates".)
$HttpPort
Specifies the port number at which the Certificate Manager or Registration Manager is listening to certificate-renewal requests from end entities. (The token enables you to construct the URL which end entities use to renew their certificates; see the example in "Customizing Message Templates".)
$IssuerDN
Specifies the distinguished name of the certificate issuer.
$NotAfter
Specifies the NotAfter attribute.
$NotBefore
Specifies the NotBefore attribute.
$RequestorEmail
Specifies the requestor's email address.
$RequestType
Specifies the request type--whether it is a certificate enrollment, certificate renewal, certificate revocation, key archival, or key recovery request.
$SerialNumber
Specifies the serial number of the certificate.
$Status
Specifies whether the operation failed or succeeded.
$SubjectDN
Specifies the distinguished name of the certificate subject.

Tokens for Request In Queue Notification Messages

Table 14.12 lists the tokens that you can use for formulating the content of the RequestInQueueJob job's summary report.

Table 14.12 Tokens for the request-in-queue job's summary report

Token
Description
$InstanceID
Specifies the ID assigned to the subsystem that sent this notification.
$ExecutionTime
Specifies the time the job (instance) was run.
$RecipientEmail
Specifies the email address of the recipient.
$SenderEmail
Specifies the email address of the sender (it is the same as the one you specify in the Sender's E-mail Address field in "Configuring a Subsystem to Send Request Queue Notifications").
$SummaryTotalNum
Specifies the total number of items (certificate requests that are pending in the queue) in the summary report.

Tokens for Directory Update Notification Messages

This section lists the tokens that are available in summary message templates for instances of the UnpublishExpiredJob class or plug-in module.

Table 14.13 lists the tokens that are available for this jobs's summary report. You can customize the content and format of the items in the report by using the tokens defined in Table 14.14.

Table 14.13 Tokens for the unpublish-expired job's summary report

Token
Description
$InstanceID
Specifies the name of the job instance that generated this summary report.
$ExecutionTime
Specifies the time the job (instance) was run.
$SummaryItemList
Specifies the list of items in the summary notification. Each item corresponds to a certificate the job detects for removal from the publishing directory.
$SummaryTotalfailure
Specifies the total number of items in the summary report that failed.
$SummaryTotalNum
Specifies the total number of items (certificates to be removed from the directory) in the summary report.
$SummaryTotalSuccess
Specifies how many of the total number of items in the summary report succeeded.

Table 14.14 lists the tokens for the inner list items.

Table 14.14 Tokens for items in the unpublish-expired job's summary report

Token
Description
$CertType
Specifies the type of certificate--whether SSL client (client), SSL server (server), Registration Manager's signing certificate (ra), Certificate Manager's CA signing certificate (ca), router certificate (Cisco-router), or other (other).
$IssuerDN
Specifies the distinguished name of the certificate issuer.
$NotAfter
Specifies the NotAfter attribute.
$NotBefore
Specifies the NotBefore attribute.
$RequestorEmail
Specifies the requestor's email address.
$SerialNumber
Specifies the serial number of the certificate.
$Status
Specifies whether the operation failed or succeeded.
$SubjectDN
Specifies the distinguished name of the certificate subject.



© Copyright © 2000 Sun Microsystems, Inc. Some preexisting portions Copyright © 2000 Netscape Communications Corp. All rights reserved.
