IPv6 Example Topology Interface and Host Addresses

This table lists detailed information about the routers used in the example topologies presented in this guide.

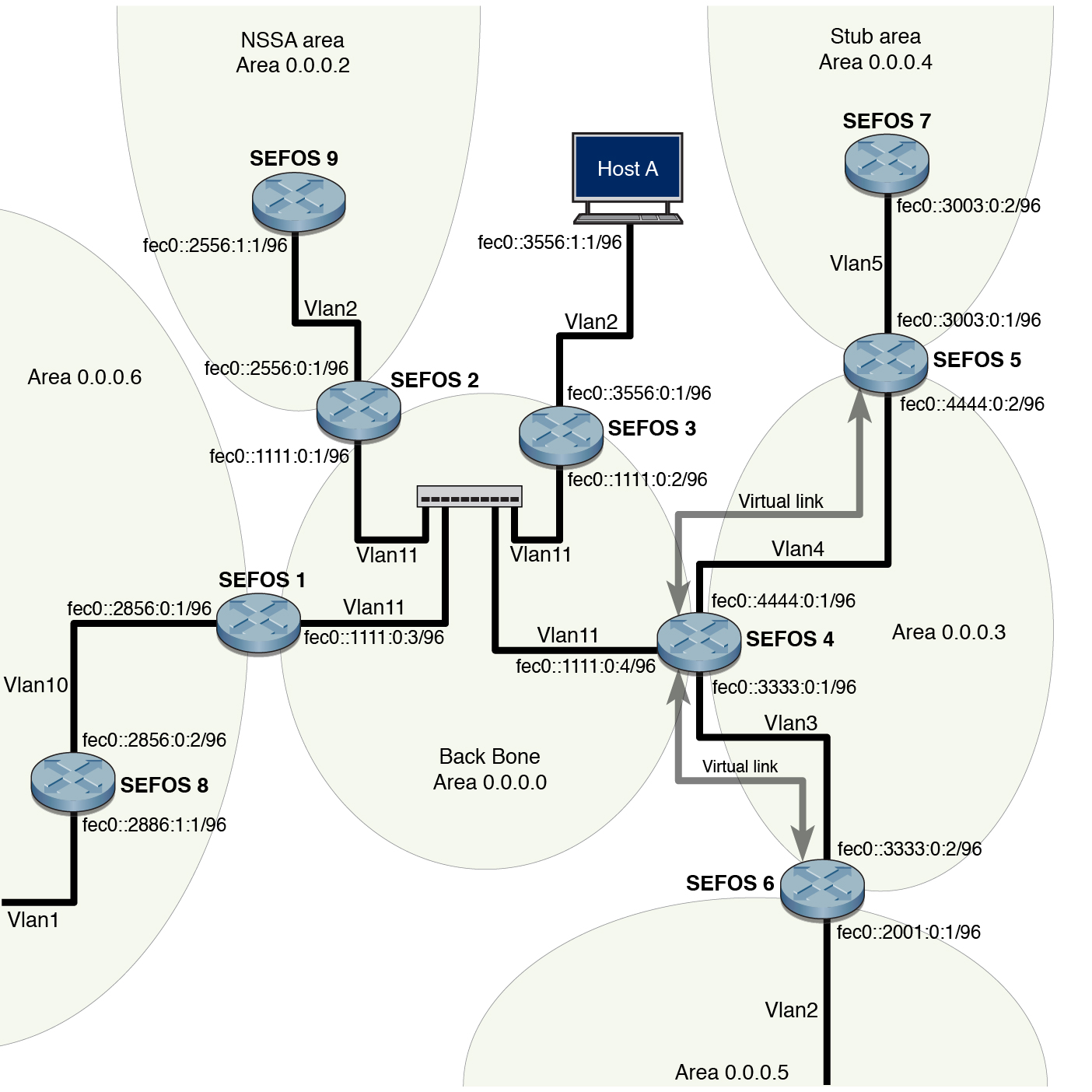

The following figure illustrates this configuration:

IPv6 Example Topology

Stub Area Topology

This figure shows the components that are used to test and configure the stub area, ASBR, and route redistribution in the example topology.

See IPv6 Example Topology Interface and Host Addresses for the configuration details of this topology.

Route Redistribution Toplogy

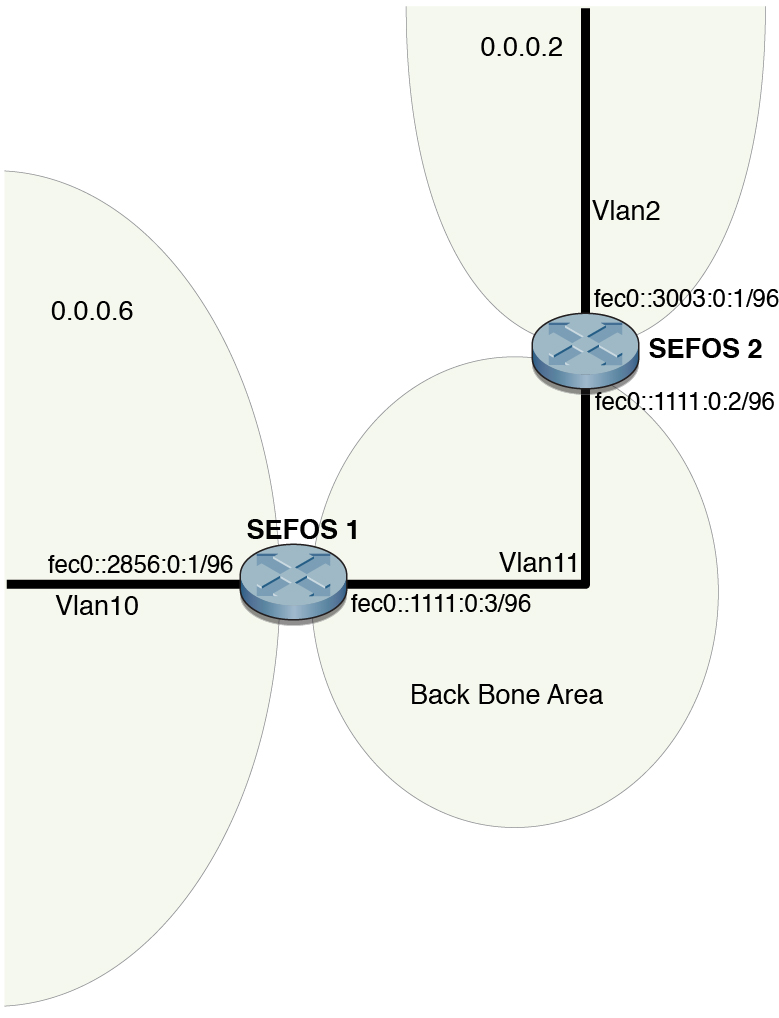

This figure shows the components that are used to test and configure route redistribution in the example topology.

See IPv6 Example Topology Interface and Host Addresses for the configuration details of this topology.

NSSA Type-7/-5 Conversion Topology

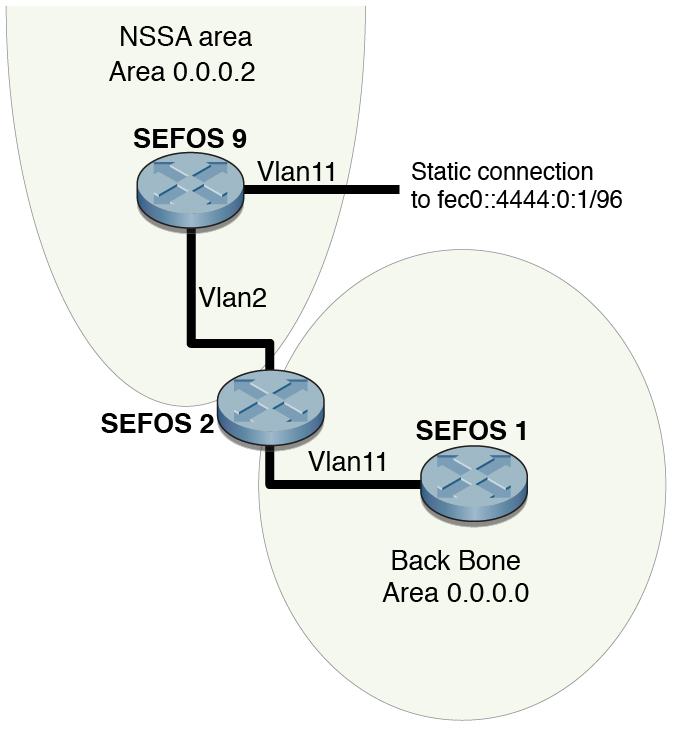

This figure shows the components that are used that are used to test and configure NSSA in the example topology.

See IPv6 Example Topology Interface and Host Addresses for the configuration details of this topology.

Virtual Link and Route Summarization Topology

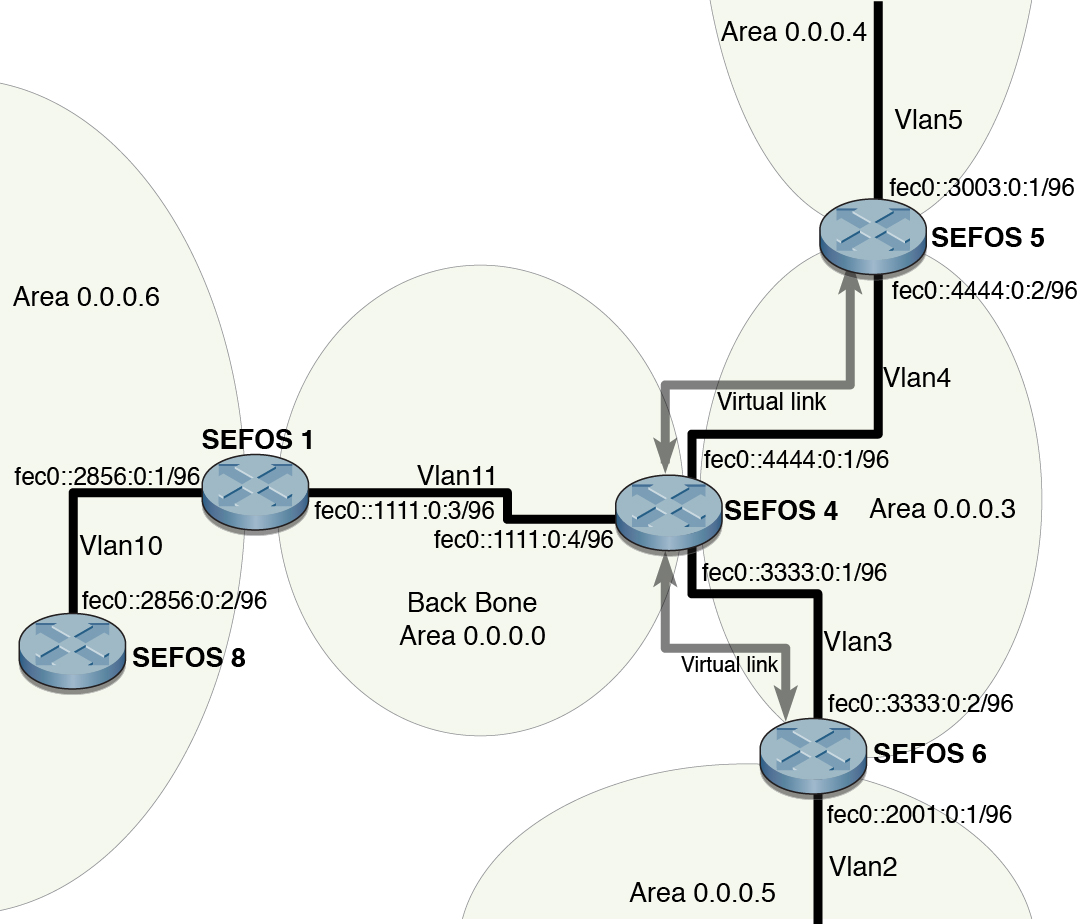

This figure shows the components that are used to test and configure virtual link and route summarization in the example topology.

See IPv6 Example Topology Interface and Host Addresses for the configuration details of this topology.

Host Topology

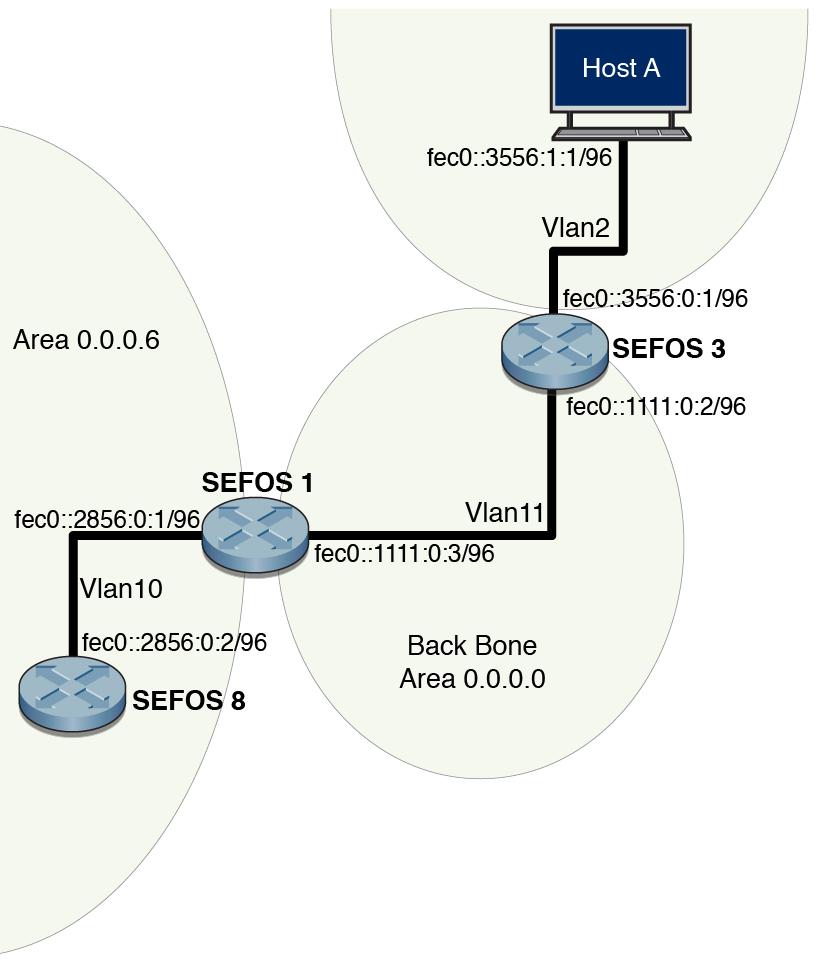

This figure shows the components that are used to test and configure the host in the example topology.

See IPv6 Example Topology Interface and Host Addresses for the configuration details of this topology.
