BIOS IO Menu Selections

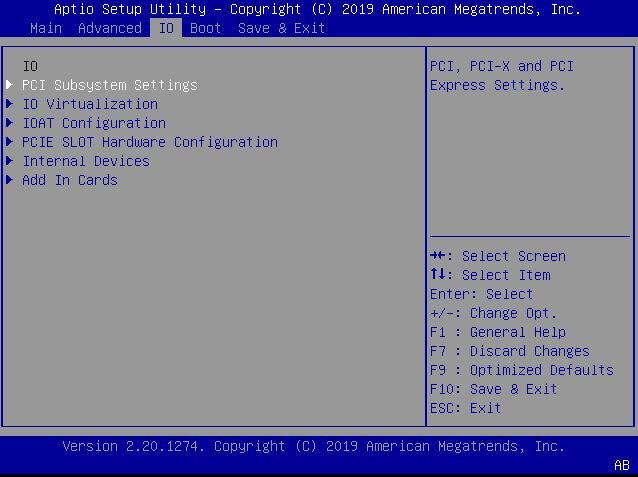

This section includes a screen of the BIOS IO Menu. The options that are available
from the IO Menu are described in the table that follows.
The following tables describe the BIOS IO menu options.
BIOS IO Menu PCI Subsystem Settings Options
The following table describes the BIOS IO Menu PCI Subsystem Settings
Options.
|
|
|
|
|
PCI 64 Bit Resources Allocation
|
Disabled/Enabled
|
Enabled
|
Enable or disable 64-bit capable devices to be decoded in
above 4G address space. This setting is available only if the
system supports 64-bit decoding.
|
|
Maximum Payload
|
Auto/128 Bytes/256 Bytes/512 Bytes/1024 Bytes/2048 Bytes/4096
Bytes
|
Auto
|
Set the Maximum Payload of the PCI Express device or allow the
System BIOS to select the value.
|
|
Maximum Read Request
|
Auto/128 Bytes/256 Bytes/512 Bytes/1024 Bytes/2048 Bytes/4096
Bytes
|
Auto
|
Set the Maximum Read Request of the PCI Express device or
allow the System BIOS to select the value.
|
|
PCIe
Hot-Plug Support
|
Disabled/Enabled
|
Enabled
|
Enable
or disable the OS to support PCIe
hot-plug.
|
|
BIOS IO Menu IO Virtualization Options
The following table describes the BIOS IO Menu IO Virtualization Options.
|
|
|
|
|
VT-d
|
Disabled/Enabled
|
Enabled
|
Enable or disable Intel Virtualization Technology for directed
I/O (VT-d) by reporting the I/O device assignment to VMM through
DMA remapping reporting (DMAR) Advance Configuration Power
Interface (ACPI) tables.
|
|
ACS
|
Disabled/Enabled
|
Disabled
|
Enabled
programs ACS to all PCIe bridges; Disabled programs ACS to only
chipset PCIe root ports bridges.
|
|
SR-IOV Support
|
Disabled/Enabled
|
Enabled
|
Enable or disable Single Root I/O Virtualization (SR-IOV) to
configure devices into multiple virtual devices that can be used
on virtual OS installations. If supported by the hardware and
set to enabled, all devices within the system that are SR-IOV
capable are configured to support SR-IOV and I/O resources are
allocated to the device as normal. If set to disabled, I/O
resources are not allocated to the device.
|
|
ARI
|
Disabled/Enabled
|
Enabled
|
If Alternate Routing ID (ARI) is supported by the hardware and
set to enabled, devices are permitted to locate virtual
functions (VFs) in function numbers 8 to 255 of the captured bus
number, instead of normal function numbers 0 to 7.
|
|
BIOS IO Menu IOAT Configuration Options
The following table describes the BIOS IO Menu IOAT Configuration Options.
|
|
|
|
|
Intel IOAT
|
Disabled/Enabled
|
Enabled
|
Enable or disable Intel I/O Acceleration Technology (I/OAT)
devices.
|
|
DCA Support
|
Disabled/Enabled
|
Enabled
|
Enable or disable direct cache access (DCA) support.
|
|
BIOS IO Menu PCIE Hardware Slot Configuration Options
The following table describes the BIOS IO Menu hardware slot configuration
options.
|
|
|
|
|
Slot 1 Hardware Configuration
|
|
|
Displays and provides options to configure hot-plug
functionality or FM10K bifurcation for the PCIe HBA slot.
|
|
PCIE Slot Hardware Configuration
|
HotPlug Disabled/HotPlug Enabled/FM_10_8x8_Bifurcation
|
HotPlug Disabled
|
Enable or disable hot-plug or FM10K bifurcation.
|
|
Slot 2, Slot 3, and Slot 4
|
|
|
See Slot 1 description.
|
|
BIOS IO Menu Internal Devices Options
The following table describes the BIOS IO Internal Devices Options.
|
|
|
|
|
NET0
|
|
|
Displays and provides options to change the internal device
settings.
|
|
PCI-E UEFI Driver Enable
|
Disabled/Enabled
|
Enabled
|
Enable or disable PCI-E UEFI Driver. If set to enabled, UEFI
Driver for the card executes as normal. If set to disabled, UEFI
Driver for the card is not copied into memory and the execution
of the UEFI Driver is inhibited.
|
|
NET1 and NET2
|
|
|
See NET0 description.
|
|
BIOS IO Menu Add-in Cards Options
The following table describes the BIOS IO Menu Add-in Cards Options.
|
|
|
|
|
Slot 1
Note -
PCIe slot 1 is nonfunctional in single-processor
systems.
|
|
|
Displays and provides options to change the settings of the
devices in PCIe slots.
|
|
IO Enable
|
Disabled/Enabled
|
Enabled
|
Disable or enable IO
|
|
PCI-E UEFI Driver Enable
|
Disabled/Enabled
|
Enabled
|
Enable or disable PCI-E UEFI Driver. If set to enabled, UEFI
Driver for the card executes as normal. If set to disabled, UEFI
Driver for the card is not copied into memory and the execution
of the UEFI Driver is inhibited.
|
|
PCIE
SLOT DDIO
|
Disabled/Enabled
|
Enabled
|
Enable
or disable DDIO Use_Allocating_Flow_WR for this
slot.
|
|
Slot 2, Slot 3, and Slot
4
|
|
|
See Slot 1 description.
|
|
