7120 Cables
The following figure and legend show the storage controller internal cables.
Note - The rear boot drives are not depicted in this illustration.

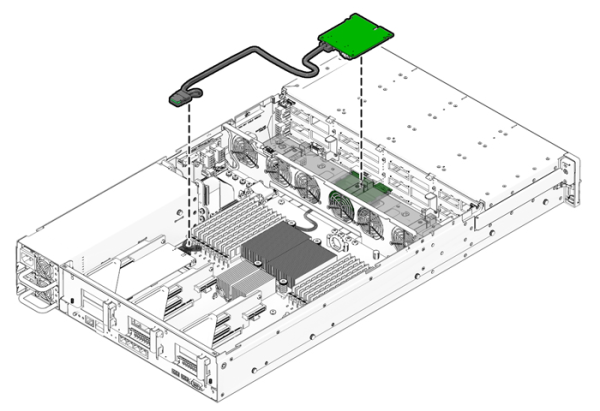

Figure 76 7120 Controller Storage Drive Data Cable
| |
---|
1 Storage Drive Data Cable | Connection between the HBA PCI-Express Card and the storage drive backplane. |
|

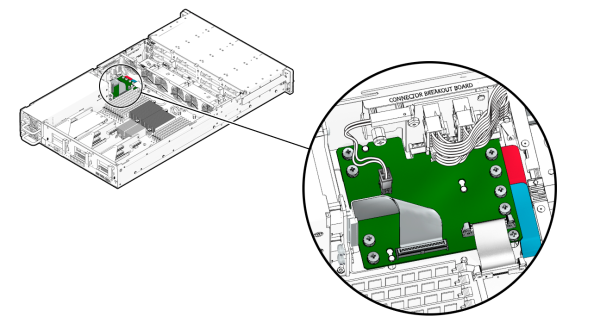

Figure 77 7120 Controller Ribbon Cable
| |
---|
2 Ribbon cable | Connection is between the power distribution board and the motherboard. |
|
