Provide Management Network Configuration Information
Ideally, the management network should be on a separate subnet from the
client network, but they can be on the same subnet, if necessary.
-

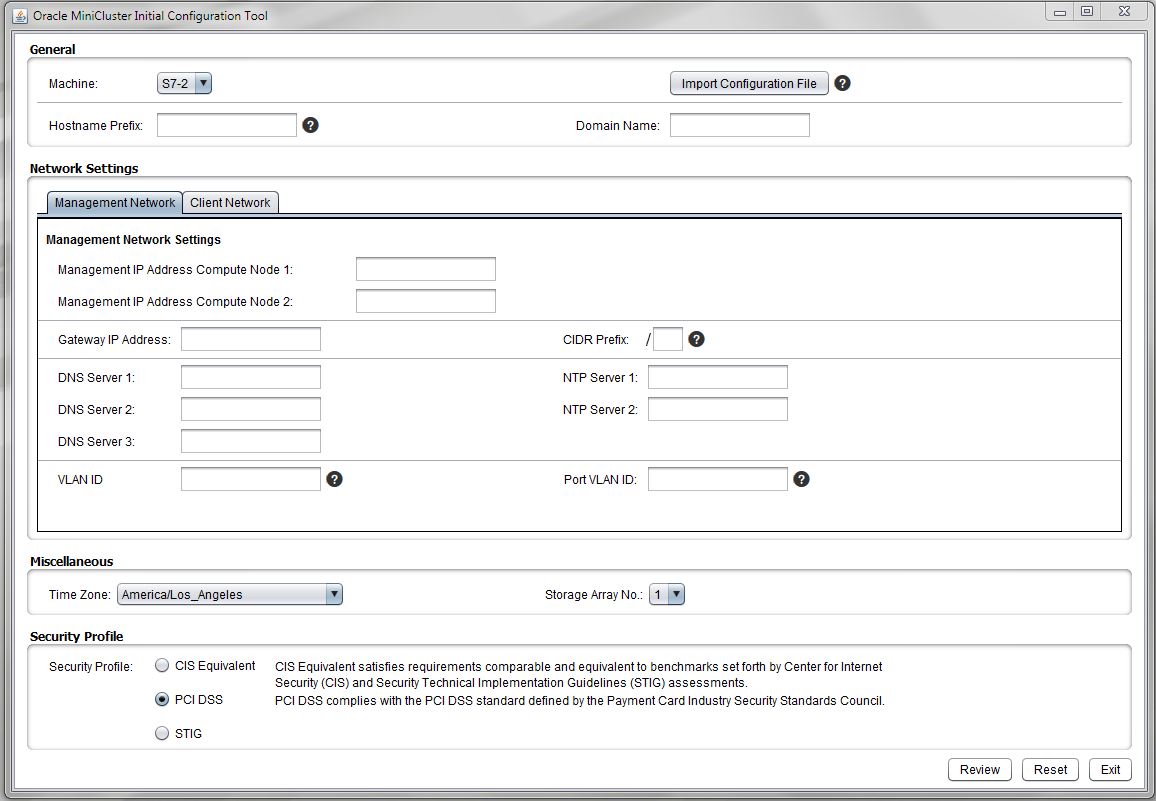

In the Network Settings pane, click the Management Network tab.
The configuration fields for the management network is
displayed.
-
Enter two IP addresses for the management network in the Management IP
Address Compute Node 1 and Compute Node 2 fields.
The two management network IP addresses do not have to be consecutive,
but they should be on a separate subnet from the client network IP
addresses.
-
Enter the gateway IP address for the management network in the Gateway
IP Address field.
-
Enter the CIDR equivalent of the subnet mask for the management
network in the CIDR Prefix field.
For example, 24. Ideally, the management network
should be on a separate subnet from the client network, but they can be
on the same subnet, if necessary.
Use this table to find the CIDR equivalent of your subnet mask.
|
|
255.255.255.255
|
/32
|
255.255.255.254
|
/31
|
255.255.255.252
|
/30
|
255.255.255.248
|
/29
|
255.255.255.240
|
/28
|
255.255.255.224
|
/27
|
255.255.255.192
|
/26
|
255.255.255.128
|
/25
|
255.255.255.0
|
/24
|
255.255.254.0
|
/23
|
255.255.252.0
|
/22
|
255.255.248.0
|
/21
|
255.255.240.0
|
/20
|
255.255.224.0
|
/19
|
255.255.192.0
|
/18
|
255.255.128.0
|
/17
|
255.255.0.0
|
/16
|
255.254.0.0
|
/15
|
255.252.0.0
|
/14
|
255.248.0.0
|
/13
|
255.240.0.0
|
/12
|
255.224.0.0
|
/11
|
255.192.0.0
|
/10
|
255.128.0.0
|
/9
|
255.0.0.0
|
/8
|
254.0.0.0
|
/7
|
252.0.0.0
|
/6
|
248.0.0.0
|
/5
|
240.0.0.0
|
/4
|
224.0.0..0
|
/3
|
192.0.0.0
|
/2
|
128.0.0.0
|
/1
|
0.0.0.0
|
/0
|
|
-
Enter the IP addresses for the management domain name servers in the
DNS Server 1, 2, and 3 fields.
At least one DNS server IP address must be provided. The entries for
the DNS servers can be the same, or they can be different, from the
entries for the DNS servers that you will provide in the Management
Network tab.
-
Enter the IP addresses for the management Network Time Protocol
servers in the NTP Server 1 and 2 fields.
At least one NTP server IP address must be provided. The entries for
the NTP servers can be the same, or they can be different, from the
entries for the NTP servers that you will provide in the Management
Network tab.
Note -
Verify that you have the correct management DNS and NTP server
entries in these fields before proceeding. Once you have completed
the initial installation of your system, you cannot change the
management DNS and NTP server entries without resetting your
MiniCluster system. Note that this is only true for the
management DNS and NTP servers; you can
change the client DNS and NTP servers after
initial installation.
-
Determine if you want to set up a VLAN configuration on the management
network.
-
If you do not want to set up a VLAN configuration on the
management network, leave the two VLAN fields blank. Go to
Provide Client Network Configuration Information.
-
If you want to set up a VLAN configuration on the management
network, determine if you want to set up a tagged VLAN
configuration or an untagged (port-based) VLAN configuration.
-
VLAN ID — If
you want to set up a tagged VLAN configuration on the
management network, enter the VLAN tag ID.
-
Port VLAN ID
— If you want to set up an untagged (port-based)
VLAN configuration on the management network, enter the
port VLAN ID.
-
Provide the client network configuration information.
Go to Provide Client Network Configuration Information.
