(Optional) Configure the Oracle ILOM Identity

Use this task to assign a unique identification to this server's SP. This task is optional but enables you to easily identify the SP from other SPs in your environment.

You must have Oracle ILOM Admin (a) privileges to perform this task.

1. Access the Oracle ILOM web interface.

   See Log In To the Oracle ILOM Web Interface.

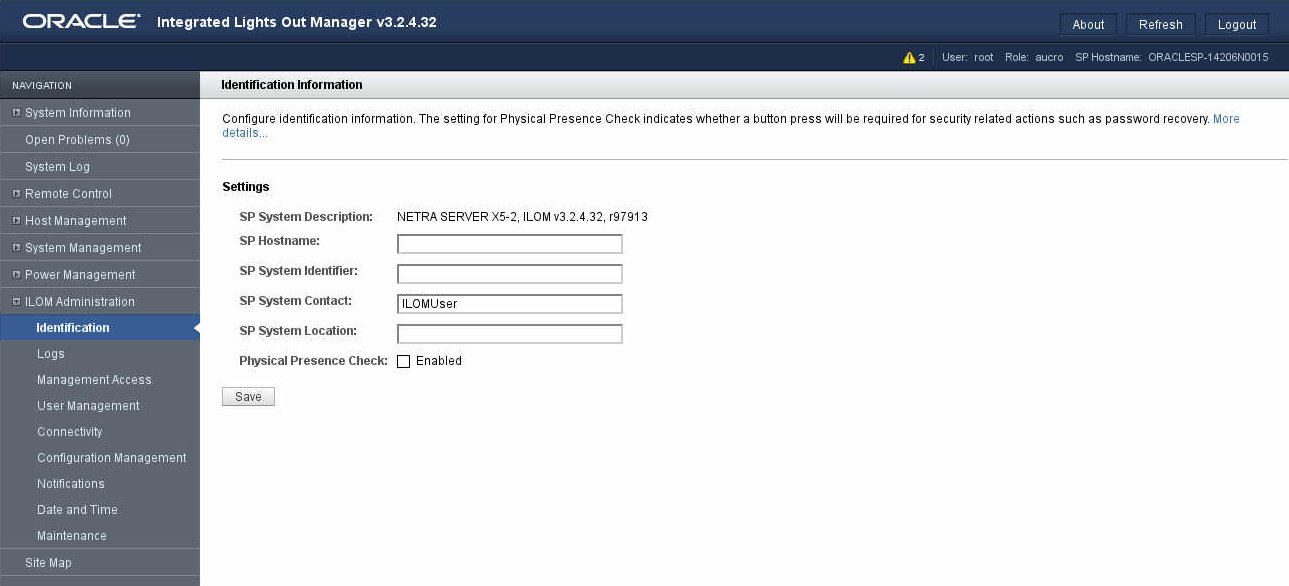

2. Navigate to the ILOM Administration → Identification page.

   The Identification Information page is displayed.



3. Enter the identification information in the fields.

   The fields have these characteristics:

   • Hostname – The host name can contain up to 60 characters. It must begin with a letter and it must contain only alphanumeric, hyphen, and underscore characters.

   • System Identifier – The system identifier can contain up to 60 characters using any standard keyboard keys except quotation marks.

   • System Contact – The system contact can consist of a text string using any standard keyboard keys except quotation marks.

   • System Location – The system location can consist of a text string using any standard keyboard keys except quotation marks.

   • Physical Presence Check – For security reasons, this option is enabled by default. When this option is enabled, you must press the Locator button on the server to recover the Oracle ILOM password or to perform other security-related actions.

4. Click Save.
5. (Optional) Log out of Oracle ILOM.

   See Log Out of Oracle ILOM.
