Netra SPARC S7-2 Server Service Manual

Exit Print View

Updated: February 2017



Remove the Battery

Removing the battery is a cold-service operation. You must power off the server before you remove the battery.

  1. Back up the Oracle ILOM variables.

    See http://docs.oracle.com/cd/E19860-01/E21549/z40015841018582.html#scrolltoc

  2. Prepare for service.

    See Preparing for Service.

  3. Lift the battery out of the receptacle.

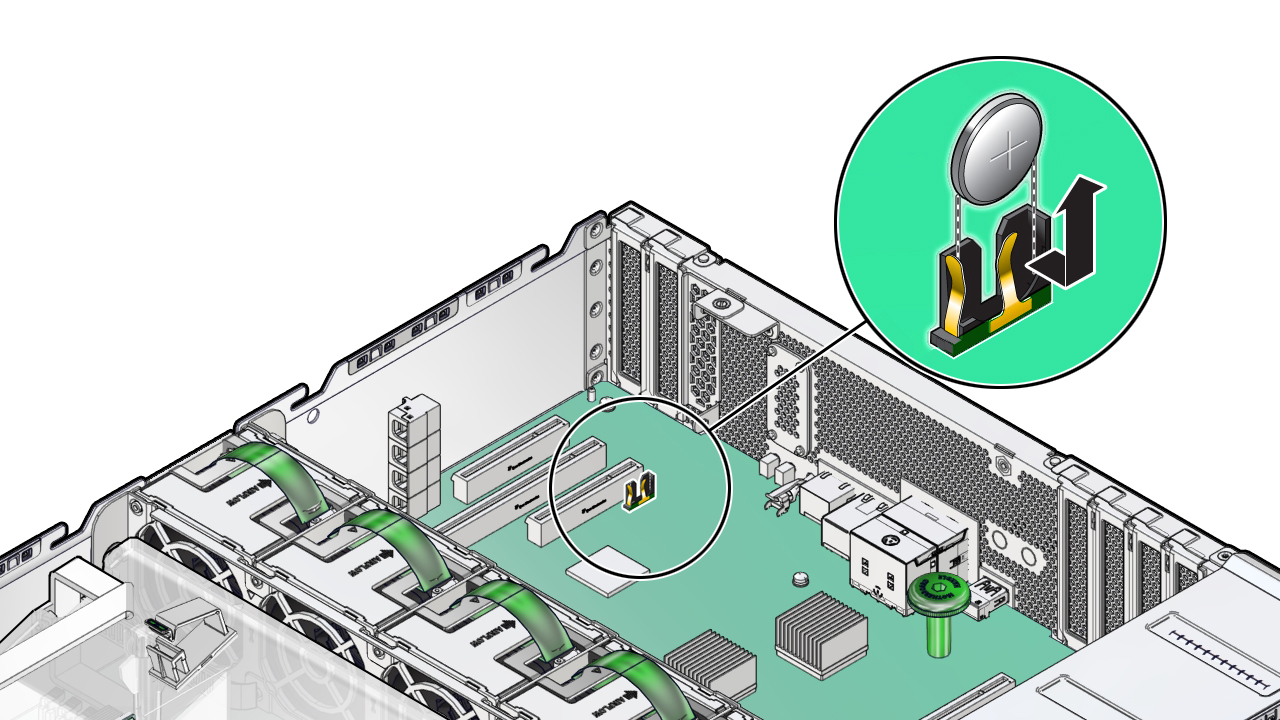

    image:The illustration shows removing the battery.
  4. Set the battery aside.
  5. Consider your next step.

Related Information
