Remove the DVD Drive

Removing the DVD drive is a cold-plug operation. You must power off the server before you remove the DVD drive.


Caution

Caution  -  Overheating hazard. A DVD drive, even if it does not function, or a filler panel, must be present in the DVD drive slot. Do not perform this procedure until you have a replacement DVD drive or filler panel available.


  1. Prepare for service, including powering down the server.

    See Preparing for Service.

  2. Remove any media from the DVD drive.
  3. Follow the steps in Rotate the Drive Cage to the Service Position.
  4. Remove the filter.

    See Remove the Filter.

  5. Disconnect the HDD backplane cables.

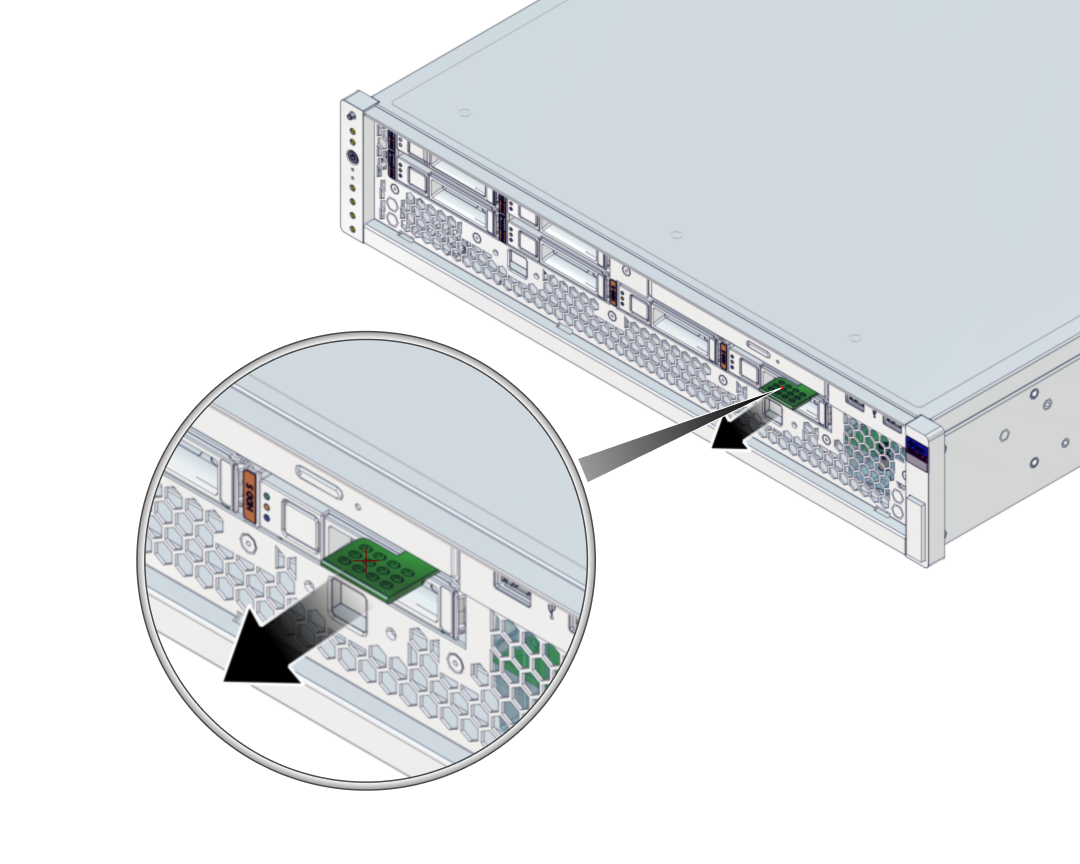

  6. Pull the plunger on the DVD component, then remove the DVD component.
    image:Figure showing DVD plunger for removing the DVD component.

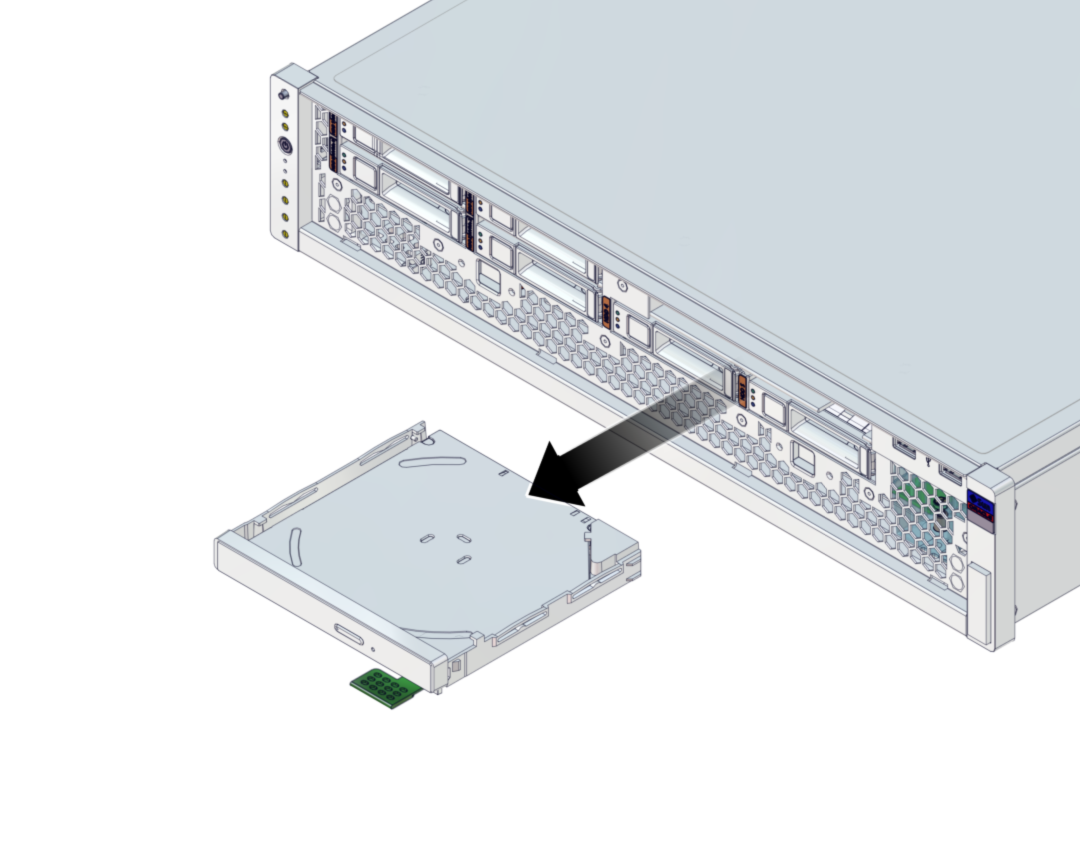

  7. Continue to pull the tab, so that the DVD drive slides out of the server.
    image:Figure showing tab to remove the DVD.
  8. Set the DVD drive aside.
  9. Consider your next step.
