Secure the Drive Cage

Perform this task once you have pivoted the drive cage to the service position.

1. If you previously removed the PSU duct or removed the air duct, complete these prerequisites, as necessary, in this order.

   • Install the PSU Duct

   • Install the Air Duct

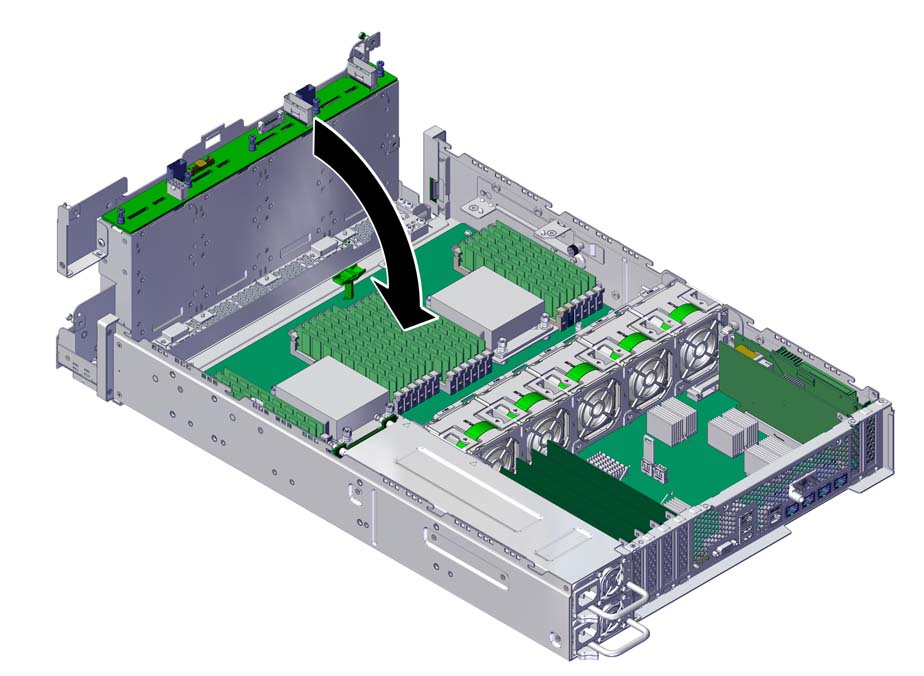

2. Lower the drive cage to the horizontal position.

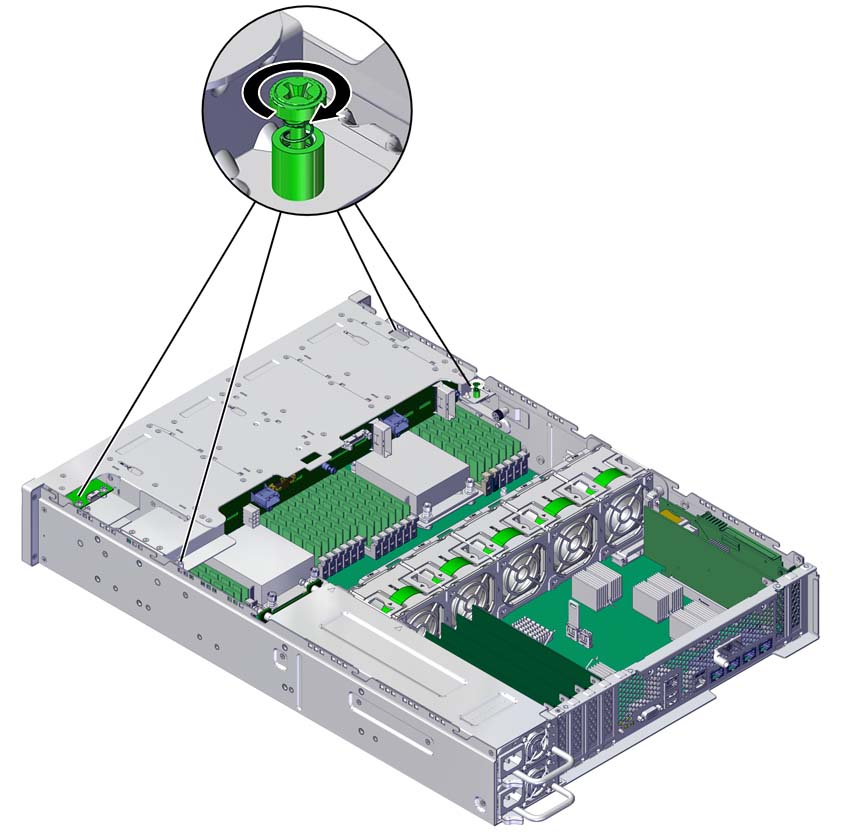

3. Tighten the four screws securing the drive cage to the chassis.

4. Connect the cables to the drive backplane, and the cable attached to the USB board.

   These cables (2), (3), (4), and (6) are visible in System Cable Configuration.

   ---

   Note -  Depending on your server's configuration, you might not have the DVD SATA cable (3) as seen in the illustration.

   ---

5. Install the filter.

   See Install the Filter.

6. Consider your next step.

   • If you secured the drive cage as part of another component's removal or installation procedure, return to that procedure. See Component Service Task Reference for assistance.

   • Otherwise, install the fan tray.

     See Install the Fan Tray.
