Install the LED Board

Installing the LED board is a cold-service operation. You must power off the server before installing the LED board.

  1. Consider your first step.
    • If you are replacing the LED board, remove the faulty or obsolete LED board first, then return to this procedure, Step 2. See Remove the LED Board.

    • If you are installing the LED board as part of another component's removal or installation procedure, go to Step 2.

  2. Set the LED board into the LED assembly.

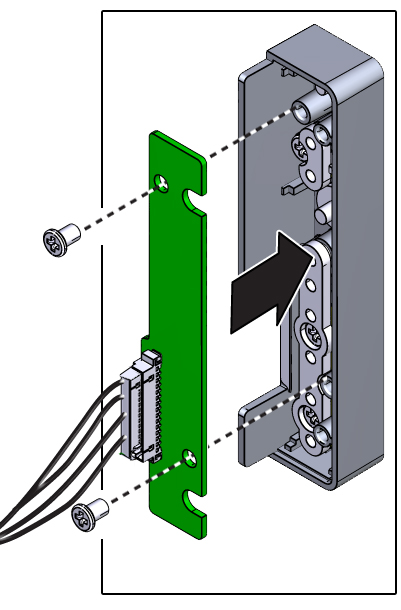

    image:The illustration shows installing the LED board into the                             assembly.
  3. Install and tighten the two screws.
  4. Position the LED assembly over the flange on the chassis left.
    image:The illustration shows removing the LED board.
  5. Install and tighten the two screws.

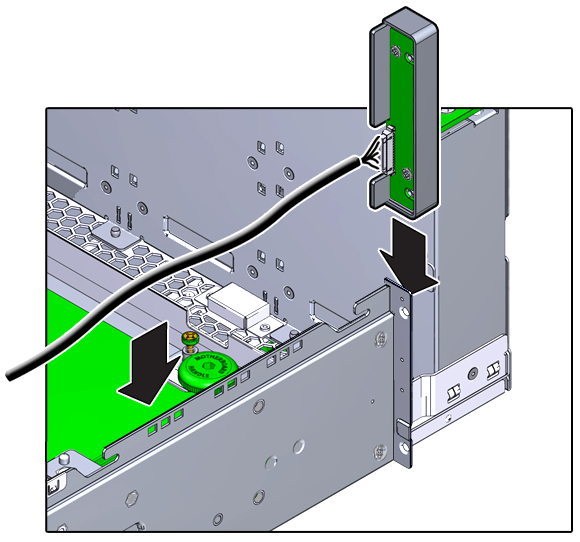

    image:The illustration shows installing the LED board assembly.
  6. Route the cable into the cable clamp and against the chassis wall.
  7. Connect the cable to the motherboard.

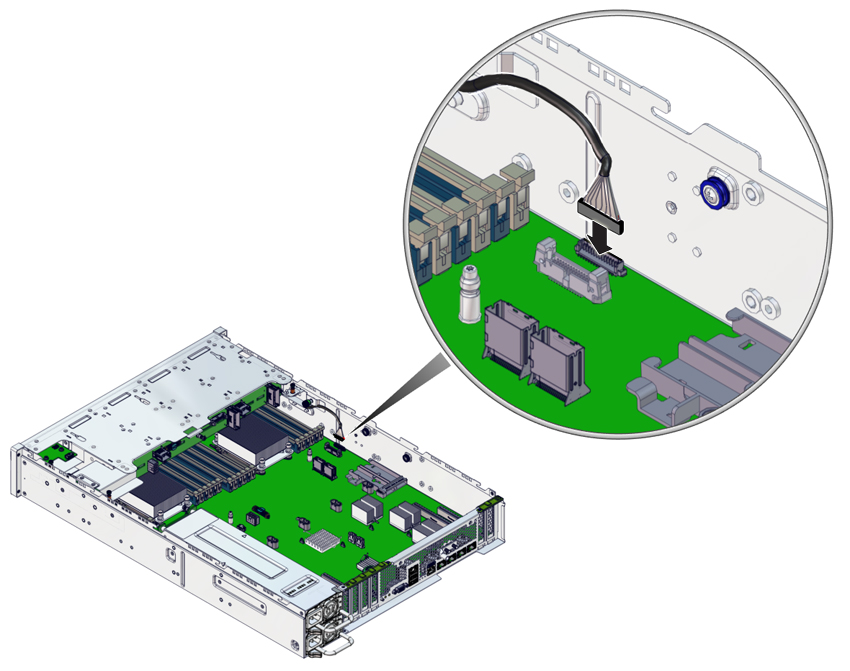

    image:The illustration shows connecting the LED board cable on the                             motherboard.
  8. Consider your next step.
    • If you installed the LED board as part of a replacement operation, go to Step 9.

    • If you installed the LED board as part of another component's removal or installation procedure, return to that procedure. See Component Service Task Reference for assistance.

  9. Review this information and complete these prerequisites in this order.
  10. Complete these postrequisites in this order to finish the installation procedure.
